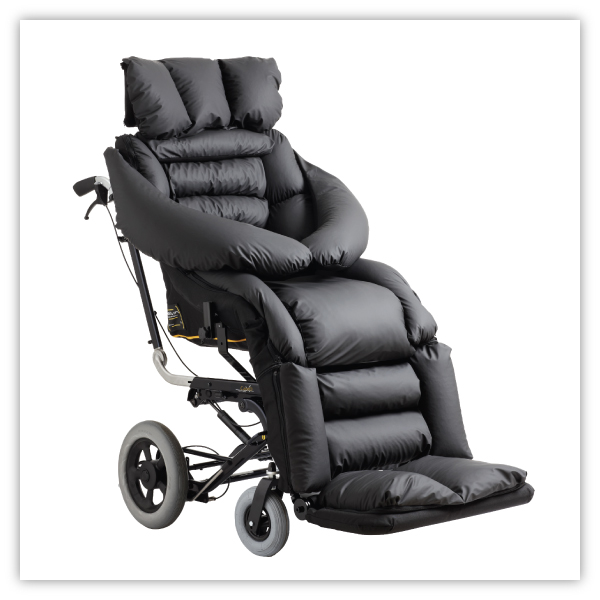

Kelvin kørestol
Classification 12 22 18 - 04
Manual attendant-controlled comfort wheelchairs with tilt-in-space
Manual attendant-controlled comfort wheelchairs with tilt-in-space
The product series contains 8 products.
Product 1 of 8 - Kelvin 1 S40, SB 34-40 cm
HMI-no. 36013
Article-no. 0300-140-000
Registration date 27-01-2004
Last updated 21-11-2012
Specifications
| User weight max. | 125 | kg |
| Adjustable seat width | Yes | |
| Seat width, min. | 340 | mm |
| Seat width, max. | 400 | mm |
| Adjustable seat depth | Yes | |
| Seat depth, min. | 400 | mm |
| Seat depth, max. | 400 | mm |
| Seat height, min. | 550 | mm |
| Seat height, max. | 550 | mm |
| Adjustable back rest | No | |
| Back rest height, min. | 550 | mm |
| Back rest height, max. | 550 | mm |
| Total width | 630 | mm |
| Total length | 710 | mm |
| Weight | 47 | kg |
| Adjustable push handles | Yes | |
| Front-wheel-driven | No | |
| Wheels with handrims | No | |
| Transit wheels | Yes | |
| Can be subsequently equipped with propulsion unit | Yes | |
| Can be mounted on a stair climber | Yes | |
| Intended for fastening in a car | Yes | |
| Foldable | No | |
| Intended for children | Yes | |
| Tilt-in-space forward | 0 | degrees |
| Tilt-in-space back | 30 | degrees |
| Can be supplied with electrically operated tilt-in-space | No | |
| Back rest recline max. | 170 | degrees |
| Can be supplied with electrically operated back-rest recline | No | |
| Head rest | Yes | |
| Can be supplied with central legrest | Yes | |
| Balance point adjustable | No |
Product 2 of 8 - Kelvin 1 S48, SB 34-40 cm
HMI-no. 64586
Article-no. 0300-148-000
Registration date 08-06-2011
Last updated 08-06-2011
Specifications
| User weight max. | 125 | kg |
| Adjustable seat width | Yes | |
| Seat width, min. | 340 | mm |
| Seat width, max. | 400 | mm |
| Adjustable seat depth | Yes | |
| Seat depth, min. | 480 | mm |
| Seat depth, max. | 480 | mm |
| Seat height, min. | 550 | mm |
| Seat height, max. | 550 | mm |
| Adjustable back rest | No | |
| Back rest height, min. | 550 | mm |
| Back rest height, max. | 550 | mm |
| Total width | 630 | mm |
| Total length | 710 | mm |
| Weight | 47 | kg |
| Adjustable push handles | Yes | |
| Front-wheel-driven | No | |
| Wheels with handrims | No | |
| Transit wheels | Yes | |
| Can be subsequently equipped with propulsion unit | Yes | |
| Can be mounted on a stair climber | Yes | |
| Intended for fastening in a car | Yes | |
| Foldable | No | |
| Intended for children | Yes | |
| Tilt-in-space forward | 0 | degrees |
| Tilt-in-space back | 30 | degrees |
| Can be supplied with electrically operated tilt-in-space | No | |
| Back rest recline max. | 170 | degrees |
| Can be supplied with electrically operated back-rest recline | No | |
| Head rest | Yes | |
| Can be supplied with central legrest | Yes | |
| Balance point adjustable | No |
Product 3 of 8 - Kelvin 2 M40, SB 40-46 cm
HMI-no. 64587
Article-no. 0300-240-000
Registration date 08-06-2011
Last updated 08-06-2011
Specifications
| User weight max. | 125 | kg |
| Adjustable seat width | Yes | |
| Seat width, min. | 400 | mm |
| Seat width, max. | 460 | mm |
| Adjustable seat depth | Yes | |
| Seat depth, min. | 400 | mm |
| Seat depth, max. | 400 | mm |
| Seat height, min. | 550 | mm |
| Seat height, max. | 550 | mm |
| Adjustable back rest | No | |
| Back rest height, min. | 550 | mm |
| Back rest height, max. | 550 | mm |
| Total width | 630 | mm |
| Total length | 710 | mm |
| Weight | 47 | kg |
| Adjustable push handles | Yes | |
| Front-wheel-driven | No | |
| Wheels with handrims | No | |
| Transit wheels | Yes | |
| Can be subsequently equipped with propulsion unit | Yes | |
| Can be mounted on a stair climber | Yes | |
| Intended for fastening in a car | Yes | |
| Foldable | No | |
| Intended for children | Yes | |
| Tilt-in-space forward | 0 | degrees |
| Tilt-in-space back | 30 | degrees |
| Can be supplied with electrically operated tilt-in-space | No | |
| Back rest recline max. | 170 | degrees |
| Can be supplied with electrically operated back-rest recline | No | |
| Head rest | Yes | |
| Can be supplied with central legrest | No | |
| Balance point adjustable | Yes |
Product 4 of 8 - Kelvin 2 M48, SB 40-46 cm
HMI-no. 36496
Article-no. 0300-248-000
Registration date 17-03-2004
Last updated 27-03-2013
Specifications
| User weight max. | 125 | kg |
| Adjustable seat width | Yes | |
| Seat width, min. | 400 | mm |
| Seat width, max. | 460 | mm |
| Adjustable seat depth | Yes | |
| Seat depth, min. | 480 | mm |
| Seat depth, max. | 480 | mm |
| Seat height, min. | 550 | mm |
| Seat height, max. | 550 | mm |
| Adjustable back rest | No | |
| Back rest height, min. | 550 | mm |
| Back rest height, max. | 550 | mm |
| Total width | 630 | mm |
| Total length | 710 | mm |
| Weight | 470 | kg |
| Adjustable push handles | Yes | |
| Front-wheel-driven | No | |
| Wheels with handrims | No | |
| Transit wheels | Yes | |
| Can be subsequently equipped with propulsion unit | Yes | |
| Can be mounted on a stair climber | Yes | |
| Intended for fastening in a car | Yes | |
| Foldable | No | |
| Intended for children | Yes | |
| Tilt-in-space forward | 0 | degrees |
| Tilt-in-space back | 30 | degrees |
| Can be supplied with electrically operated tilt-in-space | No | |
| Back rest recline max. | 170 | degrees |
| Can be supplied with electrically operated back-rest recline | No | |
| Head rest | Yes | |
| Can be supplied with central legrest | No | |
| Balance point adjustable | Yes |
Product 5 of 8 - Kelvin 2 M56, SB 40-46 cm
HMI-no. 64588
Article-no. 0300-256-000
Registration date 08-06-2011
Last updated 08-06-2011
Specifications
| User weight max. | 125 | kg |
| Adjustable seat width | Yes | |
| Seat width, min. | 400 | mm |
| Seat width, max. | 460 | mm |
| Adjustable seat depth | Yes | |
| Seat depth, min. | 560 | mm |
| Seat depth, max. | 560 | mm |
| Seat height, min. | 550 | mm |
| Seat height, max. | 550 | mm |
| Adjustable back rest | No | |
| Back rest height, min. | 550 | mm |
| Back rest height, max. | 550 | mm |
| Total width | 630 | mm |
| Total length | 710 | mm |
| Weight | 470 | kg |
| Adjustable push handles | Yes | |
| Front-wheel-driven | No | |
| Wheels with handrims | No | |
| Transit wheels | Yes | |
| Can be subsequently equipped with propulsion unit | Yes | |
| Can be mounted on a stair climber | Yes | |
| Intended for fastening in a car | Yes | |
| Foldable | No | |
| Intended for children | Yes | |
| Tilt-in-space forward | 0 | degrees |
| Tilt-in-space back | 30 | degrees |
| Can be supplied with electrically operated tilt-in-space | No | |
| Back rest recline max. | 170 | degrees |
| Can be supplied with electrically operated back-rest recline | No | |
| Head rest | Yes | |
| Can be supplied with central legrest | No | |
| Balance point adjustable | Yes |
Product 6 of 8 - Kelvin 3, L48, SB 46-50 cm
HMI-no. 36497
Article-no. 0300-348-000
Registration date 17-03-2004
Last updated 08-06-2011
Specifications
| User weight max. | 100 | kg |
| Adjustable seat width | Yes | |
| Seat width, min. | 460 | mm |
| Seat width, max. | 500 | mm |
| Adjustable seat depth | Yes | |
| Seat depth, min. | 480 | mm |
| Seat depth, max. | 480 | mm |
| Seat height, min. | 550 | mm |
| Seat height, max. | 550 | mm |
| Adjustable back rest | No | |
| Back rest height, min. | 550 | mm |
| Back rest height, max. | 550 | mm |
| Total width | 680 | mm |
| Total length | 750 | mm |
| Weight | 47 | kg |
| Adjustable push handles | Yes | |
| Front-wheel-driven | No | |
| Wheels with handrims | No | |
| Transit wheels | Yes | |
| Can be subsequently equipped with propulsion unit | Yes | |
| Can be mounted on a stair climber | Yes | |
| Intended for fastening in a car | Yes | |
| Foldable | No | |
| Intended for children | Yes | |
| Tilt-in-space forward | 0 | degrees |
| Tilt-in-space back | 30 | degrees |
| Can be supplied with electrically operated tilt-in-space | No | |
| Back rest recline max. | 170 | degrees |
| Can be supplied with electrically operated back-rest recline | No | |
| Head rest | Yes | |
| Can be supplied with central legrest | Yes | |
| Balance point adjustable | Yes |
Product 7 of 8 - Kelvin 3, L56, SB 46-50 cm
HMI-no. 64589
Article-no. 0300-356-000
Registration date 08-06-2011
Last updated 08-06-2011
Specifications
| User weight max. | 125 | kg |
| Adjustable seat width | Yes | |
| Seat width, min. | 460 | mm |
| Seat width, max. | 500 | mm |
| Adjustable seat depth | Yes | |
| Seat depth, min. | 560 | mm |
| Seat depth, max. | 560 | mm |
| Seat height, min. | 550 | mm |
| Seat height, max. | 550 | mm |
| Adjustable back rest | No | |
| Back rest height, min. | 550 | mm |
| Back rest height, max. | 550 | mm |
| Total width | 680 | mm |
| Total length | 750 | mm |
| Weight | 47 | kg |
| Adjustable push handles | Yes | |
| Front-wheel-driven | No | |
| Wheels with handrims | No | |
| Transit wheels | Yes | |
| Can be subsequently equipped with propulsion unit | Yes | |
| Can be mounted on a stair climber | Yes | |
| Intended for fastening in a car | Yes | |
| Foldable | No | |
| Intended for children | Yes | |
| Tilt-in-space forward | 0 | degrees |
| Tilt-in-space back | 30 | degrees |
| Can be supplied with electrically operated tilt-in-space | No | |
| Back rest recline max. | 170 | degrees |
| Can be supplied with electrically operated back-rest recline | No | |
| Head rest | Yes | |
| Can be supplied with central legrest | Yes | |
| Balance point adjustable | Yes |
Product 8 of 8 - Kelvin Junior
HMI-no. 55396
Article-no. 0300-133-000
Registration date 21-04-2010
Last updated 08-06-2011
Specifications
| User weight max. | 125 | kg |
| Adjustable seat width | Yes | |
| Seat width, min. | 180 | mm |
| Seat width, max. | 330 | mm |
| Adjustable seat depth | Yes | |
| Seat depth, min. | 330 | mm |
| Seat depth, max. | 420 | mm |
| Seat height, min. | 500 | mm |
| Seat height, max. | 500 | mm |
| Adjustable back rest | No | |
| Back rest height, min. | 420 | mm |
| Back rest height, max. | 420 | mm |
| Total width | 630 | mm |
| Total length | 1100 | mm |
| Weight | 47.3 | kg |
| Adjustable push handles | Yes | |
| Front-wheel-driven | No | |
| Wheels with handrims | No | |
| Transit wheels | Yes | |
| Can be subsequently equipped with propulsion unit | Yes | |
| Can be mounted on a stair climber | No | |
| Intended for fastening in a car | Yes | |
| Foldable | No | |
| Intended for children | Yes | |
| Tilt-in-space forward | 0 | degrees |
| Tilt-in-space back | 30 | degrees |
| Can be supplied with electrically operated tilt-in-space | No | |
| Back rest recline max. | 0 | degrees |
| Can be supplied with electrically operated back-rest recline | No | |
| Head rest | Yes | |
| Can be supplied with central legrest | Yes | |
| Balance point adjustable | No |
