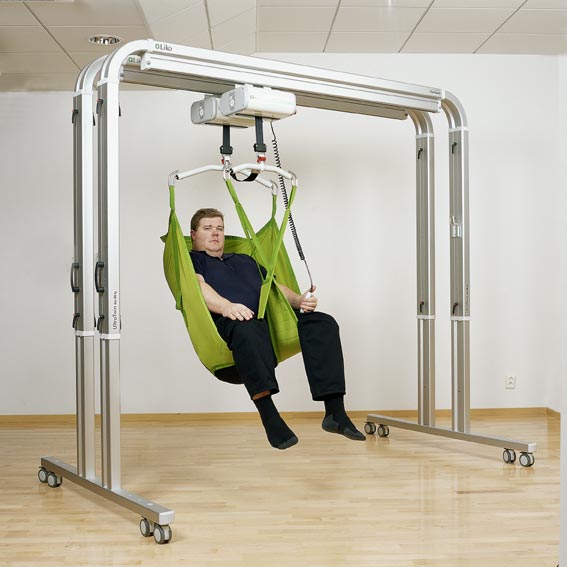

FreeSpan - fritstående loftlift
Classification
12 36 18 03 - Stationary free-standing hoists
Documents
User manualThe product series contains 3 products.
Product 1 of 3
FreeSpan
HMI-no.
41087
Article-no.
1000-3103512-xx
Registration date
31-08-2005
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX3
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
Yes
Room covering rail system
Yes
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
250
kg
Max lifting velocity, loaded
0.05
m/s
Max length of rail
550
cm
Min. length of rail
150
cm
Max height to top of rail
255
cm
Min. height to top of rail
170
cm
Min. distance from top of rail to central suspension point
52
cm
Weight of lifting machinery
12.6
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Product 2 of 3
FreeSpan Travers
HMI-no.
41088
Article-no.
1000-3103515-xx
Registration date
31-08-2005
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX3
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
Yes
Room covering rail system
Yes
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
250
kg
Max lifting velocity, loaded
0.05
m/s
Max length of rail
550
cm
Min. length of rail
150
cm
Max height to top of rail
255
cm
Min. height to top of rail
170
cm
Min. distance from top of rail to central suspension point
52
cm
Weight of lifting machinery
12.6
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Product 3 of 3
FreeSpan Ultra
HMI-no.
41089
Article-no.
1000-3103520
Registration date
31-08-2005
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX3
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
Yes
Room covering rail system
Yes
External battery charger
No
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
500
kg
Max lifting velocity, loaded
0.05
m/s
Max length of rail
550
cm
Min. length of rail
150
cm
Max height to top of rail
255
cm
Min. height to top of rail
170
cm
Min. distance from top of rail to central suspension point
26
cm
Weight of lifting machinery
12.6
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
