Wash basin bracket, height adjustable (electric)
Classification 18 15 06 - 01
Height-adjustable plinths and brackets
Height-adjustable plinths and brackets
The product series contains 4 products.

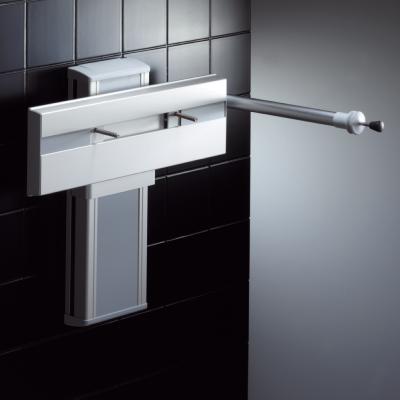

Product 1 of 4 - Electric bracket for washbasin. Height adjustable
300 mm heigth adjustable with the lever control. The lever can be placed in the right or the left side.HMI-no. 19847
Article-no. R4260
EAN-no. 5708590156293
Registration date 16-10-1998
Last updated 04-01-2006
Specifications
| Length min. | 582 | mm |
| Length, max. | 582 | mm |
| Width min | 525 | mm |
| Width max | 525 | mm |
| Load, max. | 100 | kg |
| Height, min. | 667 | mm |
| Height, max. | 967 | mm |
| Depth | 160 | mm |
Product 2 of 4 - Electric bracket for washbasin. Height adjustable
300 mm heigth adjustable with the included hand control.HMI-no. 31659
Article-no. R4270
EAN-no. 5708590202884
Registration date 25-02-2002
Last updated 19-07-2011
Specifications
| Length min. | 582 | mm |
| Length, max. | 582 | mm |
| Width min | 604 | mm |
| Width max | 604 | mm |
| Load, max. | 100 | kg |
| Height, min. | 667 | mm |
| Height, max. | 967 | mm |
| Depth | 160 | mm |
Product 3 of 4 - Manual operated wash basin bracket. Height adjustable
250 mm heigth adjustable. This manual bracket is suitable primarily for situations in which the height needs to be changed only occasionally.HMI-no. 12409
Article-no. R4140
EAN-no. 5708590152295
Registration date 08-01-1998
Last updated 21-07-2011
Specifications
| Length min. | 422 | mm |
| Length, max. | 422 | mm |
| Width min | 525 | mm |
| Width max | 525 | mm |
| Load, max. | 100 | kg |
| Height, min. | 632 | mm |
| Height, max. | 882 | mm |
| Depth | 108 | mm |
Product 4 of 4 - Wash basin bracket - gas cylinder. Height adjustable
300 mm heigth adjustable with the lever control. The lever can be placed in the right or the left side.HMI-no. 15653
Article-no. R4360
EAN-no. 5708590097381
Registration date 16-10-1998
Last updated 22-02-2011
Specifications
| Length min. | 582 | mm |
| Length, max. | 582 | mm |
| Width min | 525 | mm |
| Width max | 520 | mm |
| Height, min. | 967 | mm |
| Height, max. | 1080 | mm |
