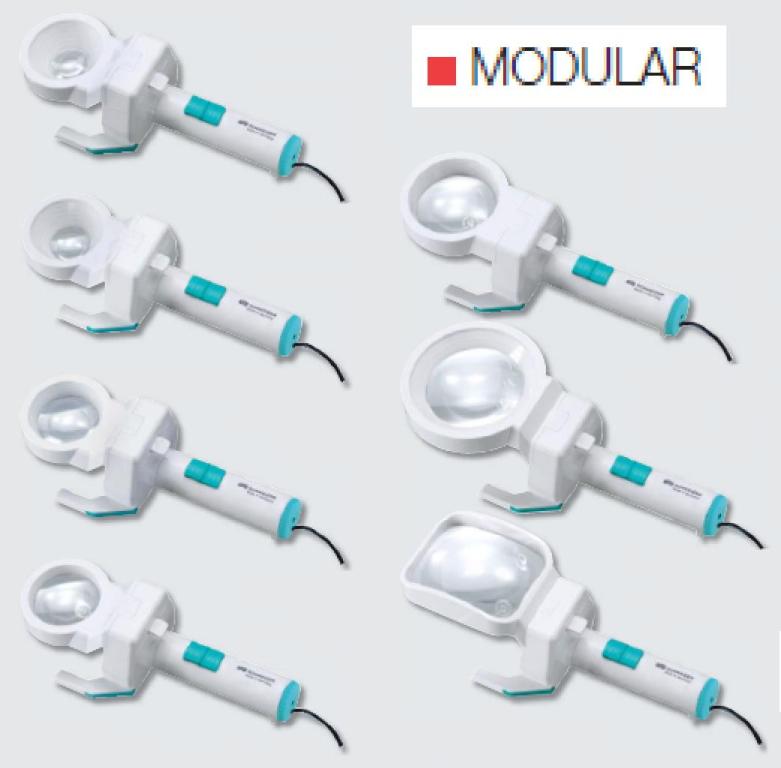

MODULAR

Mains operated stand magnifier (only 230 V / 50 Hz with Euro-plug) with halogen lighting (2000 hrs. lifetime).

Easily interchangeable open magnification heads available in different magnification powers

Reading inclination for right-hand or left-hand use

Possibility to write under the low power lenses

Set of filters included

Supplier Lysoglup ApS
2610 Rødovre

Classification 22 03 09 - 01
Illuminated pocket magnifiers

The product series contains 7 products.

» Summarize specifications

Product 1 of 7 - Modular 2,5X / 6D

Reading inclination for right-hand or left-hand use

Possibility to write under the low power lenses

Set of filters included

Low energy consumption

HMI-no. 16369

Article-no. SC195002

Registration date 06-02-1997

Last updated 16-07-2012

Specifications

Magnification	2.5	X
Dioptrics	6	D
Lens dimension	100	mm

Product 2 of 7 - Modular 3X / 8D

Reading inclination for right-hand or left-hand use

Possibility to write under the low power lenses

Set of filters included

Low energy consumption

HMI-no. 18776

Article-no. SC196002

Registration date 06-02-1997

Last updated 16-07-2012

Specifications

Magnification	3	X
Dioptrics	8	D

Product 3 of 7 - Modular 3X / 8D

Reading inclination for right-hand or left-hand use

Possibility to write under the low power lenses

Set of filters included

Low energy consumption

HMI-no. 18777

Article-no. SC194002

Registration date 06-02-1997

Last updated 16-07-2012

Specifications

Magnification	3	X
Dioptrics	8	D
Lens dimension	85	mm

Product 4 of 7 - Modular 4X / 12D

Reading inclination for right-hand or left-hand use

Possibility to write under the low power lenses

Set of filters included

Low energy consumption

HMI-no. 16367

Article-no. SC193002

Registration date 06-02-1997

Last updated 16-07-2012

Specifications

Magnification	4	X
Dioptrics	12	D
Lens dimension	70	mm

Product 5 of 7 - Modular 5X / 16D

Reading inclination for right-hand or left-hand use

Possibility to write under the low power lenses

Set of filters included

Low energy consumption

HMI-no. 18778

Article-no. SC192002

Registration date 06-02-1997

Last updated 16-07-2012

Specifications

Magnification	5	X
Dioptrics	16	D
Lens dimension	60	mm

Product 6 of 7 - Modular 6 X / 20D

Reading inclination for right-hand or left-hand use

Possibility to write under the low power lenses

Set of filters included

Low energy consumption

HMI-no. 16365

Article-no. SC191002

Registration date 06-02-1997

Last updated 16-07-2012

Specifications

Magnification	6	X
Dioptrics	20	D
Lens dimension	55	mm

Product 7 of 7 - Modular 8X / 28D

Reading inclination for right-hand or left-hand use

Possibility to write under the low power lenses

Set of filters included

Low energy consumption

Aspheric lightweight lens

HMI-no. 16364

Article-no. SC190002

Registration date 06-02-1997

Last updated 16-07-2012

Specifications

Magnification	8	X
Dioptrics	28	D
Lens dimension	35	mm
