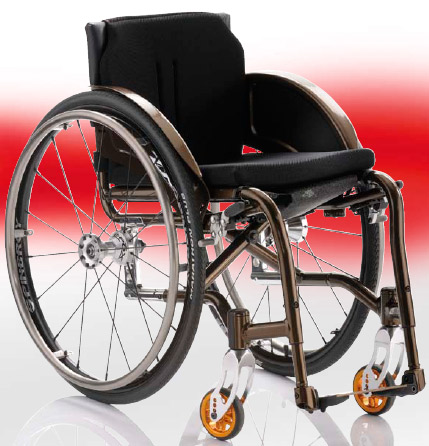

ZX1 - Kompakt ramme 85 grader, lige front

ZX1 - Kompakt ramme 85 grader, lige front


Supplier Meyra Ortopedia Danmark
3660 Stenløse



Classification 12 22 03 - 08
Manual wheelchairs with x-frame




The product series contains 63 products.

Product 1 of 63 - ZX1 - sædebredde 34 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63665
Article-no. 27063
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 340mm
Seat width, max. 340mm
Adjustable seat depth No
Seat depth, min. 380mm
Seat depth, max. 380mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 510mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 2 of 63 - ZX1 - sædebredde 34 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63666
Article-no. 27064
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 340mm
Seat width, max. 340mm
Adjustable seat depth No
Seat depth, min. 400mm
Seat depth, max. 400mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 510mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 3 of 63 - ZX1 - sædebredde 34 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63667
Article-no. 27065
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 340mm
Seat width, max. 340mm
Adjustable seat depth No
Seat depth, min. 420mm
Seat depth, max. 420mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 510mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 4 of 63 - ZX1 - sædebredde 34 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63668
Article-no. 27066
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 340mm
Seat width, max. 340mm
Adjustable seat depth No
Seat depth, min. 440mm
Seat depth, max. 440mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 510mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 5 of 63 - ZX1 - sædebredde 34 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63669
Article-no. 27067
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 340mm
Seat width, max. 340mm
Adjustable seat depth No
Seat depth, min. 460mm
Seat depth, max. 460mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 510mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 6 of 63 - ZX1 - sædebredde 34 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63670
Article-no. 27068
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 340mm
Seat width, max. 340mm
Adjustable seat depth No
Seat depth, min. 480mm
Seat depth, max. 480mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 510mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 7 of 63 - ZX1 - sædebredde 34 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63671
Article-no. 27069
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 340mm
Seat width, max. 340mm
Adjustable seat depth No
Seat depth, min. 500mm
Seat depth, max. 500mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 510mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 8 of 63 - ZX1 - sædebredde 36 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63672
Article-no. 27070
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 360mm
Seat width, max. 360mm
Adjustable seat depth No
Seat depth, min. 380mm
Seat depth, max. 380mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 530mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 9 of 63 - ZX1 - sædebredde 36 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63673
Article-no. 27071
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 360mm
Seat width, max. 360mm
Adjustable seat depth No
Seat depth, min. 400mm
Seat depth, max. 400mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 530mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 10 of 63 - ZX1 - sædebredde 36 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63674
Article-no. 27072
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 360mm
Seat width, max. 360mm
Adjustable seat depth No
Seat depth, min. 420mm
Seat depth, max. 420mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 530mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 11 of 63 - ZX1 - sædebredde 36 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63675
Article-no. 27073
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 360mm
Seat width, max. 360mm
Adjustable seat depth No
Seat depth, min. 440mm
Seat depth, max. 440mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 530mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 12 of 63 - ZX1 - sædebredde 36 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63676
Article-no. 27074
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 360mm
Seat width, max. 360mm
Adjustable seat depth No
Seat depth, min. 460mm
Seat depth, max. 460mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 530mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 13 of 63 - ZX1 - sædebredde 36 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63677
Article-no. 27075
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 360mm
Seat width, max. 360mm
Adjustable seat depth No
Seat depth, min. 480mm
Seat depth, max. 480mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 530mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 14 of 63 - ZX1 - sædebredde 36 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63678
Article-no. 27076
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 360mm
Seat width, max. 360mm
Adjustable seat depth No
Seat depth, min. 500mm
Seat depth, max. 500mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 530mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 15 of 63 - ZX1 - sædebredde 38 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63679
Article-no. 27077
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 380mm
Seat width, max. 380mm
Adjustable seat depth No
Seat depth, min. 380mm
Seat depth, max. 380mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 550mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 16 of 63 - ZX1 - sædebredde 38 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63680
Article-no. 27078
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 380mm
Seat width, max. 380mm
Adjustable seat depth No
Seat depth, min. 400mm
Seat depth, max. 400mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 550mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 17 of 63 - ZX1 - sædebredde 38 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63681
Article-no. 27079
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 380mm
Seat width, max. 380mm
Adjustable seat depth No
Seat depth, min. 420mm
Seat depth, max. 420mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 550mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 18 of 63 - ZX1 - sædebredde 38 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63682
Article-no. 27080
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 380mm
Seat width, max. 380mm
Adjustable seat depth No
Seat depth, min. 440mm
Seat depth, max. 440mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 550mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 19 of 63 - ZX1 - sædebredde 38 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63683
Article-no. 27081
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 380mm
Seat width, max. 380mm
Adjustable seat depth No
Seat depth, min. 460mm
Seat depth, max. 460mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 550mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 20 of 63 - ZX1 - sædebredde 38 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63684
Article-no. 27082
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 380mm
Seat width, max. 380mm
Adjustable seat depth No
Seat depth, min. 480mm
Seat depth, max. 480mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 550mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 21 of 63 - ZX1 - sædebredde 38 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63685
Article-no. 27083
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 380mm
Seat width, max. 380mm
Adjustable seat depth No
Seat depth, min. 500mm
Seat depth, max. 500mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 550mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 22 of 63 - ZX1 - sædebredde 40 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63686
Article-no. 27084
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 400mm
Seat width, max. 400mm
Adjustable seat depth No
Seat depth, min. 380mm
Seat depth, max. 380mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 570mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 23 of 63 - ZX1 - sædebredde 40 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63687
Article-no. 27085
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 400mm
Seat width, max. 400mm
Adjustable seat depth No
Seat depth, min. 400mm
Seat depth, max. 400mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 570mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 24 of 63 - ZX1 - sædebredde 40 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63688
Article-no. 27086
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 400mm
Seat width, max. 400mm
Adjustable seat depth No
Seat depth, min. 420mm
Seat depth, max. 420mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 570mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 25 of 63 - ZX1 - sædebredde 40 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63689
Article-no. 27087
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 400mm
Seat width, max. 400mm
Adjustable seat depth No
Seat depth, min. 440mm
Seat depth, max. 440mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 570mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 26 of 63 - ZX1 - sædebredde 40 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63690
Article-no. 27088
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 400mm
Seat width, max. 400mm
Adjustable seat depth No
Seat depth, min. 460mm
Seat depth, max. 460mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 570mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 27 of 63 - ZX1 - sædebredde 40 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63691
Article-no. 27089
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 400mm
Seat width, max. 400mm
Adjustable seat depth No
Seat depth, min. 480mm
Seat depth, max. 480mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 570mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 28 of 63 - ZX1 - sædebredde 40 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63692
Article-no. 27090
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 400mm
Seat width, max. 400mm
Adjustable seat depth No
Seat depth, min. 500mm
Seat depth, max. 500mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 570mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 29 of 63 - ZX1 - sædebredde 42 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63693
Article-no. 27091
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 420mm
Seat width, max. 420mm
Adjustable seat depth No
Seat depth, min. 380mm
Seat depth, max. 380mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 590mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 30 of 63 - ZX1 - sædebredde 42 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63694
Article-no. 27092
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 420mm
Seat width, max. 420mm
Adjustable seat depth No
Seat depth, min. 400mm
Seat depth, max. 400mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 590mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 31 of 63 - ZX1 - sædebredde 42 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63695
Article-no. 27093
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 420mm
Seat width, max. 420mm
Adjustable seat depth No
Seat depth, min. 420mm
Seat depth, max. 420mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 590mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 32 of 63 - ZX1 - sædebredde 42 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63696
Article-no. 27094
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 420mm
Seat width, max. 420mm
Adjustable seat depth No
Seat depth, min. 440mm
Seat depth, max. 440mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 590mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 33 of 63 - ZX1 - sædebredde 42 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63697
Article-no. 27095
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 420mm
Seat width, max. 420mm
Adjustable seat depth No
Seat depth, min. 460mm
Seat depth, max. 460mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 590mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 34 of 63 - ZX1 - sædebredde 42 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63698
Article-no. 27096
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 420mm
Seat width, max. 420mm
Adjustable seat depth No
Seat depth, min. 480mm
Seat depth, max. 480mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 590mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 35 of 63 - ZX1 - sædebredde 42 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63699
Article-no. 27097
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 420mm
Seat width, max. 420mm
Adjustable seat depth No
Seat depth, min. 500mm
Seat depth, max. 500mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 590mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 36 of 63 - ZX1 - sædebredde 44 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63700
Article-no. 27098
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 440mm
Seat width, max. 440mm
Adjustable seat depth No
Seat depth, min. 380mm
Seat depth, max. 380mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 610mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 37 of 63 - ZX1 - sædebredde 44 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63704
Article-no. 27099
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 440mm
Seat width, max. 440mm
Adjustable seat depth No
Seat depth, min. 400mm
Seat depth, max. 400mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 610mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 38 of 63 - ZX1 - sædebredde 44 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63705
Article-no. 27100
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 440mm
Seat width, max. 440mm
Adjustable seat depth No
Seat depth, min. 420mm
Seat depth, max. 420mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 610mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 39 of 63 - ZX1 - sædebredde 44 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63706
Article-no. 27101
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 440mm
Seat width, max. 440mm
Adjustable seat depth No
Seat depth, min. 440mm
Seat depth, max. 440mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 610mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 40 of 63 - ZX1 - sædebredde 44 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63707
Article-no. 27102
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 440mm
Seat width, max. 440mm
Adjustable seat depth No
Seat depth, min. 460mm
Seat depth, max. 460mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 610mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 41 of 63 - ZX1 - sædebredde 44 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63708
Article-no. 27103
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 440mm
Seat width, max. 440mm
Adjustable seat depth No
Seat depth, min. 480mm
Seat depth, max. 480mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 610mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 42 of 63 - ZX1 - sædebredde 44 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63709
Article-no. 27104
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 440mm
Seat width, max. 440mm
Adjustable seat depth No
Seat depth, min. 500mm
Seat depth, max. 500mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 610mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 43 of 63 - ZX1 - sædebredde 46 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63710
Article-no. 27105
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 460mm
Seat width, max. 460mm
Adjustable seat depth No
Seat depth, min. 380mm
Seat depth, max. 380mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 630mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 44 of 63 - ZX1 - sædebredde 46 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63711
Article-no. 27106
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 460mm
Seat width, max. 460mm
Adjustable seat depth No
Seat depth, min. 400mm
Seat depth, max. 400mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 630mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 45 of 63 - ZX1 - sædebredde 46 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63712
Article-no. 27107
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 460mm
Seat width, max. 460mm
Adjustable seat depth No
Seat depth, min. 420mm
Seat depth, max. 420mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 630mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 46 of 63 - ZX1 - sædebredde 46 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63713
Article-no. 27108
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 460mm
Seat width, max. 460mm
Adjustable seat depth No
Seat depth, min. 440mm
Seat depth, max. 440mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 630mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 47 of 63 - ZX1 - sædebredde 46 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63714
Article-no. 27109
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 460mm
Seat width, max. 460mm
Adjustable seat depth No
Seat depth, min. 460mm
Seat depth, max. 460mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 630mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 48 of 63 - ZX1 - sædebredde 46 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63715
Article-no. 27110
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 460mm
Seat width, max. 460mm
Adjustable seat depth No
Seat depth, min. 480mm
Seat depth, max. 480mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 630mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 49 of 63 - ZX1 - sædebredde 46 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63716
Article-no. 27111
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 460mm
Seat width, max. 460mm
Adjustable seat depth No
Seat depth, min. 500mm
Seat depth, max. 500mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 630mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 50 of 63 - ZX1 - sædebredde 48 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63717
Article-no. 27112
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 480mm
Seat width, max. 480mm
Adjustable seat depth No
Seat depth, min. 380mm
Seat depth, max. 380mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 650mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 51 of 63 - ZX1 - sædebredde 48 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63718
Article-no. 27113
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 480mm
Seat width, max. 480mm
Adjustable seat depth No
Seat depth, min. 400mm
Seat depth, max. 400mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 650mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 52 of 63 - ZX1 - sædebredde 48 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63719
Article-no. 27114
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 480mm
Seat width, max. 480mm
Adjustable seat depth No
Seat depth, min. 420mm
Seat depth, max. 420mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 650mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 53 of 63 - ZX1 - sædebredde 48 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63720
Article-no. 27115
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 480mm
Seat width, max. 480mm
Adjustable seat depth No
Seat depth, min. 440mm
Seat depth, max. 440mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 650mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 54 of 63 - ZX1 - sædebredde 48 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63721
Article-no. 27116
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 480mm
Seat width, max. 480mm
Adjustable seat depth No
Seat depth, min. 460mm
Seat depth, max. 460mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 650mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 55 of 63 - ZX1 - sædebredde 48 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63722
Article-no. 27117
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 480mm
Seat width, max. 480mm
Adjustable seat depth No
Seat depth, min. 480mm
Seat depth, max. 480mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 650mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 56 of 63 - ZX1 - sædebredde 48 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63723
Article-no. 27118
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 480mm
Seat width, max. 480mm
Adjustable seat depth No
Seat depth, min. 500mm
Seat depth, max. 500mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 650mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 57 of 63 - ZX1 - sædebredde 50 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63724
Article-no. 27119
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 500mm
Seat width, max. 500mm
Adjustable seat depth No
Seat depth, min. 380mm
Seat depth, max. 380mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 670mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 58 of 63 - ZX1 - sædebredde 50 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63725
Article-no. 27120
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 500mm
Seat width, max. 500mm
Adjustable seat depth No
Seat depth, min. 400mm
Seat depth, max. 400mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 670mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 59 of 63 - ZX1 - sædebredde 50 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63726
Article-no. 27121
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 500mm
Seat width, max. 500mm
Adjustable seat depth No
Seat depth, min. 420mm
Seat depth, max. 420mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 670mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 60 of 63 - ZX1 - sædebredde 50 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63727
Article-no. 27122
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 500mm
Seat width, max. 500mm
Adjustable seat depth No
Seat depth, min. 440mm
Seat depth, max. 440mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 670mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 61 of 63 - ZX1 - sædebredde 50 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63728
Article-no. 27123
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 500mm
Seat width, max. 500mm
Adjustable seat depth No
Seat depth, min. 460mm
Seat depth, max. 460mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 670mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 62 of 63 - ZX1 - sædebredde 50 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63729
Article-no. 27124
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 500mm
Seat width, max. 500mm
Adjustable seat depth No
Seat depth, min. 480mm
Seat depth, max. 480mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 670mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Product 63 of 63 - ZX1 - sædebredde 50 cm. Kompakt ramme 85 grader, lige front


HMI-no. 63730
Article-no. 27125
Registration date 11-03-2011
Last updated 16-03-2011

Specifications
User weight max. 120kg
Adjustable seat width No
Seat width, min. 500mm
Seat width, max. 500mm
Adjustable seat depth No
Seat depth, min. 500mm
Seat depth, max. 500mm
Seat height, min. 400mm
Seat height, max. 530mm
Adjustable seat angle Yes
Balance point adjustable Yes
Sling seat Yes
Hard base No
Back rest angle adjustable Yes
Adjustable back rest No
Back rest height, min. 250mm
Back rest height, max. 500mm
Total width 510mm
Total length 810mm
Weight 9kg
Push handles Yes
Adjustable push handles Yes
Front-wheel-driven No
Driving wheels, quick release Yes
Intended for fastening in a car No
Intended for children No
Can be subsequently equipped with propulsion unit No

Last updates
XXL
Meyra Ortopedia Danmark
XXL
Budget
Meyra Ortopedia Danmark
Budget
ZX3
Meyra Ortopedia Danmark
ZX3
Eurochair Avanti Junior
Meyra Ortopedia Danmark
Eurochair Avanti Junior
