Golvo mobile lift
Classification 12 36 03 - 04
Mobile hoists for transferring a person in sitting position with sling seats
Mobile hoists for transferring a person in sitting position with sling seats
The product series contains 3 products.

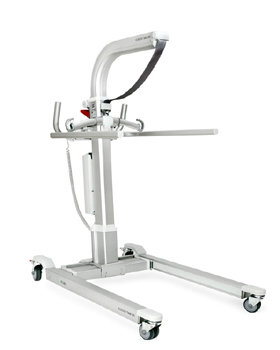

Product 1 of 3 - Golvo 8000 mobile lift
HMI-no. 64972
Article-no. 2000014
Registration date 15-08-2011
Last updated 10-08-2012
Specifications
| User weight max. | 200 | kg |
| Hoisting range | 1260 | mm |
| Electrical lifting mechanism | Yes | |
| Parallel lifting movement | No | |
| Electrical width adjustment of base | Yes | |
| Parallel width adjustment of base | Yes | |
| Internal width of base, max. | 826 | mm |
| External width of base, min. | 654 | mm |
| Height of base at front | 105 | mm |
| Turning diameter | 1240 | mm |
| Foldable | No | |
| Can be disassembled without tools | No | |
| Weight of heaviest main part | 42 | kg |
| Can lift from floor level | Yes | |
| Standing mobile hoist unit available | No | |
| Integrated battery charger | Yes | |
| Emergency lowering function | Yes | |
| Ingress protection class for water | 44 | IP class |
| Maintenance frequency | 12 | måneder |
Product 2 of 3 - Golvo 8008 Lowbase mobilelift
HMI-no. 64974
Article-no. 2000019
Registration date 15-08-2011
Last updated 10-08-2012
Specifications
| User weight max. | 200 | kg |
| Hoisting range | 1260 | mm |
| Electrical lifting mechanism | Yes | |
| Parallel lifting movement | No | |
| Electrical width adjustment of base | Yes | |
| Parallel width adjustment of base | Yes | |
| Internal width of base, max. | 907 | mm |
| External width of base, min. | 745 | mm |
| Height of base at front | 60 | mm |
| Turning diameter | 1330 | mm |
| Foldable | No | |
| Can be disassembled without tools | No | |
| Weight of heaviest main part | 42 | kg |
| Can lift from floor level | Yes | |
| Standing mobile hoist unit available | No | |
| Integrated battery charger | Yes | |
| Emergency lowering function | Yes | |
| Ingress protection class for water | 44 | IP class |
| Maintenance frequency | 12 | måneder |
Product 3 of 3 - Golvo 8008 mobilelift
HMI-no. 64973
Article-no. 2000015
Registration date 15-08-2011
Last updated 10-08-2012
Specifications
| User weight max. | 200 | kg |
| Hoisting range | 1260 | mm |
| Electrical lifting mechanism | Yes | |
| Parallel lifting movement | No | |
| Electrical width adjustment of base | Yes | |
| Parallel width adjustment of base | Yes | |
| Internal width of base, max. | 907 | mm |
| External width of base, min. | 735 | mm |
| Height of base at front | 105 | mm |
| Turning diameter | 1330 | mm |
| Foldable | No | |
| Can be disassembled without tools | No | |
| Weight of heaviest main part | 42 | kg |
| Can lift from floor level | Yes | |
| Standing mobile hoist unit available | No | |
| Integrated battery charger | Yes | |
| Emergency lowering function | Yes | |
| Ingress protection class for water | 44 | IP class |
| Maintenance frequency | 12 | måneder |
