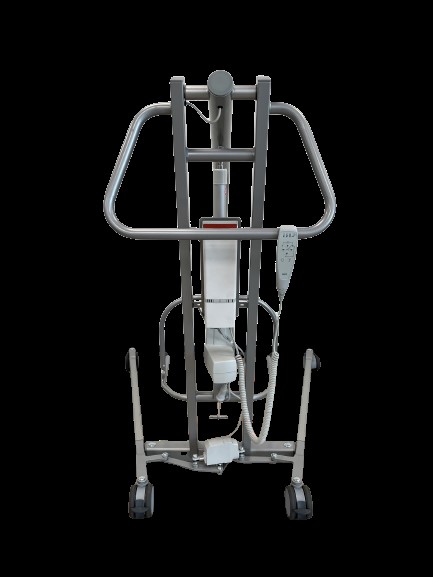

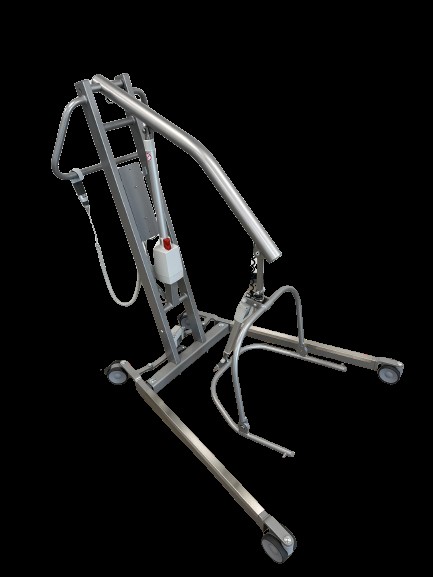

Mary Personlift
Mary lift equipment is for the stable and comfortable move of a patient. It comes with the latest technology and the best and long lasting quality components. Functionally optimized and cleaning frindly, the Mary lift is user-frindly in day to day care, and a very excellent working envioment.
Classification
12 36 03 04 - Mobile hoists for transferring a person in sitting position with sling seats
Video
The product series contains 1 product.
Product 1 of 1
Mary personlift
HMI-no.
71370
Article-no.
PR-3500-200
Registration date
02-04-2012
Last updated
09-01-2024
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Attachmentpoints at the spreader bar
4
Properties
Width adjustment of base
Ja, elektrisk
Properties
Width adjustable movement
V-formet
Properties
Lifting movement
Bueformet
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Intended for children
No
Products for children must comply with the specific demands for safety as stated in certain standards. The supplier of the product has stated that the product is intended for children. The Danish Authority of Social Services and Housing holds no responsibility in relation to this assessment.
Intended for adults
Yes
Foldable
Yes
Can be disassembled without tools
Yes
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
Yes
Emergency lowering function
Yes
Parking brake
No
Measures
User weight, max
250
kg
Internal width of base, max
96.4
cm
Measured with the base in the widest position
External width of base in the most narrow position
70
cm
Height of base at front
13.4
cm
Turning diameter
135
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
25
kg
Maintenance frequency
12
måneder
Height of push handles/push bar, min.
90
cm
Measured from the floor to the upper surface of the lower grip
Height of push handles/push bar, max.
90
cm
Measured from the floor to the upper surface of the heigher grip
Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN ISO 10535:2006: Hoists for the transfer of disabled persons - Requirements and test methods.
Test lab: Teknologisk DANAK. Test date: 22-08-2014 Test report for HMI-no. 71370
Test lab: Teknologisk DANAK. Test date: 22-08-2014 Test report for HMI-no. 71370
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
