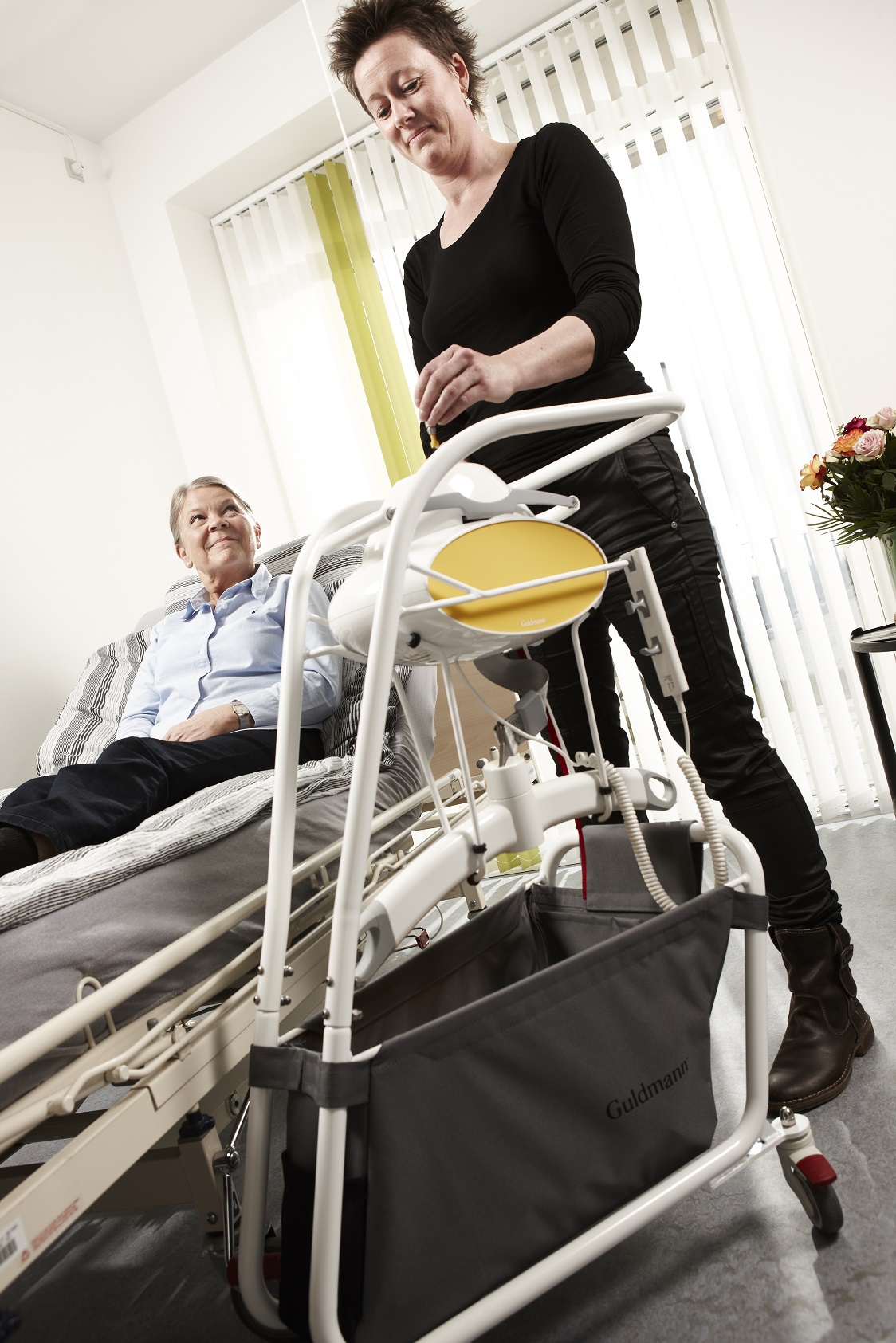

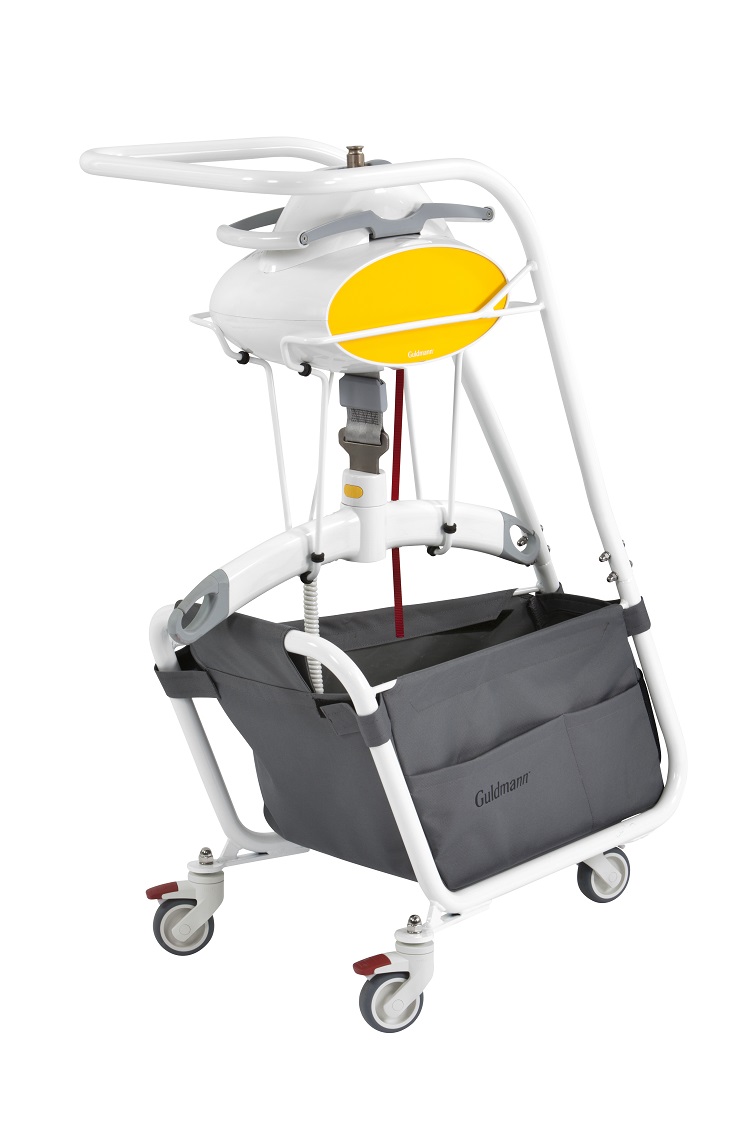

GH1 F lifting module




Classification
12 36 12 02 - Stationary hoists fixed to walls, floor or ceiling



The product series contains 3 products.

Product 1 of 3
GH1 F 175 110 SG


HMI-no.
71625
Article-no.
554192

Registration date
24-04-2012
Last updated
21-11-2023

Properties
Ingress protection class for water
IPX2
info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
Yes
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes

Measures
User weight, max
175
kg
Max lifting velocity, loaded
0.04
m/s
Weight of lifting machinery
11
kg
Min. distance from ceiling to central suspension point
8.3
cm
Maintenance frequency
12
måneder

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 2 of 3
GH1 F 205 110 SG


HMI-no.
71626
Article-no.
554125

Registration date
24-04-2012
Last updated
21-11-2023

Properties
Ingress protection class for water
IPX2
info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
Yes
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes

Measures
User weight, max
205
kg
Max lifting velocity, loaded
0.04
m/s
Weight of lifting machinery
11
kg
Min. distance from ceiling to central suspension point
8.3
cm
Maintenance frequency
12
måneder

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 3 of 3
GH1 F 255 110 SG


HMI-no.
71627
Article-no.
554126

Registration date
24-04-2012
Last updated
21-11-2023

Properties
Ingress protection class for water
IPX2
info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
Yes
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes

Measures
User weight, max
255
kg
Max lifting velocity, loaded
0.04
m/s
Weight of lifting machinery
11
kg
Min. distance from ceiling to central suspension point
8.3
cm
Maintenance frequency
12
måneder

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
