LFM LED

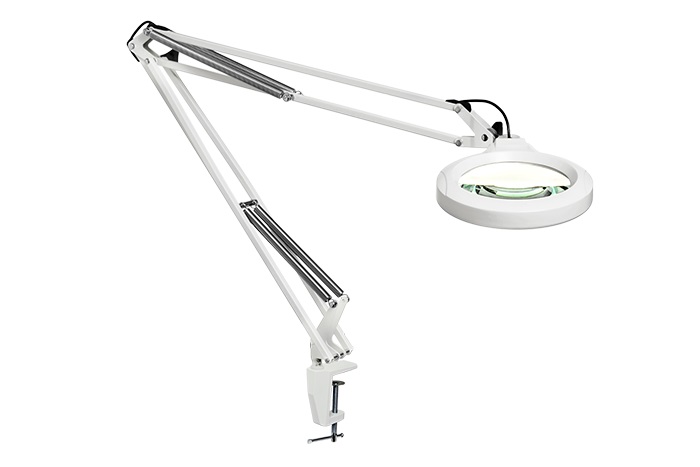

LFM LED is a lightweight magnifier with an all-metal construction, LED light sources, and a flexible spring-balanced arm. The arm provides long reach and maximum vertical and horizontal movement, and will always stay in the right position without drifting. The flexibility of the joint between lamp head and arm makes exact positioning easy.
Classification
22 03 09 11 - Magnifying lights
The product series contains 2 products.
Product 1 of 2
LFM LED 3dpt
HMI-no.
Article-no.
LFG028194
Registration date
30-01-2014
Last updated
30-01-2024
Properties
Floor-stand
No
Replaceable lens
No
Measures
Magnification
1.75
X
Optical strength
3
D
Light intensity
700
Lumen
If the product has a dimmer please state the maximum light intensity.
Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
: Tested according to other national or international standard.
Test lab: Nemko AS. Test date: 22-02-2021
Test report for HMI-no. 82511
Test lab: Nemko AS. Test date: 22-02-2021
Test report for HMI-no. 82511EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
Other specifications
Dimensions
Length (mm): 1000
Arm length (cm): 1000
Total magnification: 175
Focal Length: 330
Lightsource LED
Lamp power (W) 10
Lumen Out 505
Lumen/Watt 51
Length (mm): 1000
Arm length (cm): 1000
Total magnification: 175
Focal Length: 330
Lightsource LED
Lamp power (W) 10
Lumen Out 505
Lumen/Watt 51
Product 2 of 2
LFM LED 5dpt
HMI-no.
Article-no.
LFG028195
Registration date
30-01-2014
Last updated
30-01-2024
Properties
Floor-stand
No
Replaceable lens
No
Measures
Magnification
2.25
X
Optical strength
5
D
Light intensity
700
Lumen
If the product has a dimmer please state the maximum light intensity.
Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
: Tested according to other national or international standard.
Test lab: Nemko AS. Test date: 22-02-2021Test report for HMI-no. 82512
Test lab: Nemko AS. Test date: 22-02-2021
Test report for HMI-no. 82512EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
Other specifications
Primary Lens: 5 dpt
Total magnification: 2,25X
Focal Length: 200
Light source LED
Number of lamps 1
Lamp power (W) 10
Lumen Out 505
Lumen/Watt 51
Total magnification: 2,25X
Focal Length: 200
Light source LED
Number of lamps 1
Lamp power (W) 10
Lumen Out 505
Lumen/Watt 51
