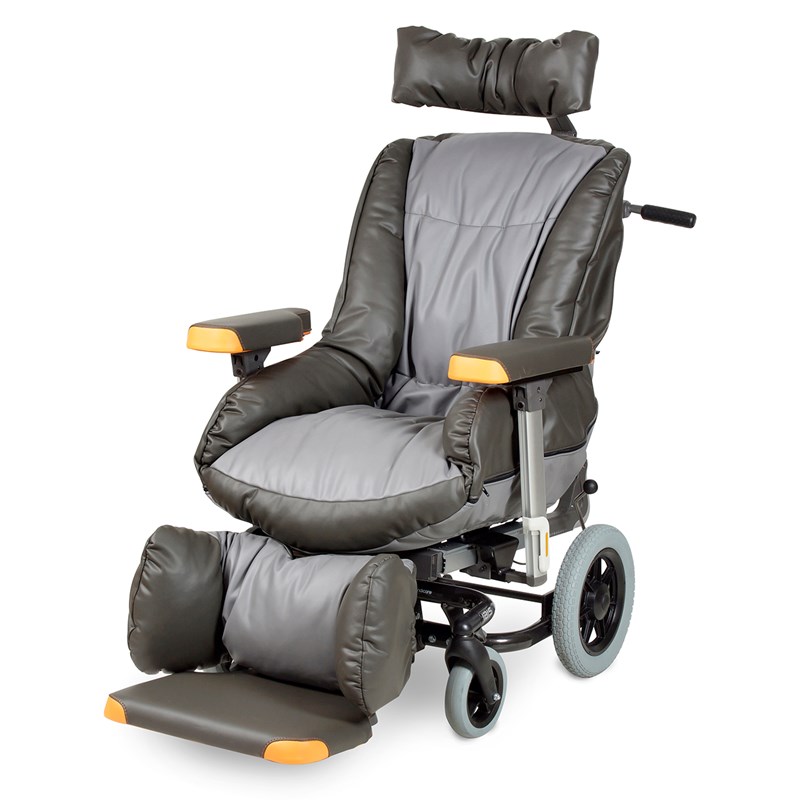

NUAGE PLS
Classification
12 22 18 04 - Manual comfort push wheelchairs with tilt-in-space
Documents
User manualThe product series contains 3 products.
Specifications summarized
Specifications for the 3 products in the product series. Click a HMI-no. to see all details for a single product.| Product 1 - 3 | |||
|---|---|---|---|
| Specification/HMI-no. | 101111 | 101114 | 101119 |
| Adjustable seat width | Yes | Yes | Yes |
| Adjustable seat depth | Yes | Yes | Yes |
| Height adjustable back rest | Yes | Yes | Yes |
| Front-wheel-driven | No | No | No |
| Can be subsequently equipped with propulsion unit | Yes | Yes | Yes |
| Can be mounted on a stair climber | Yes | No | No |
| Intended for fastening in a car | Yes | Yes | Yes |
Intended for children  Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment. | Yes | Yes | Yes |
| Can be supplied with electrically operated tilt-in-space | Yes | Yes | Yes |
| Can be supplied with electrically operated back-rest recline | Yes | Yes | Yes |
| Head support | Yes | Yes | Yes |
| Can be supplied with central legrest | Yes | Yes | Yes |
| Balance point adjustable | Yes | Yes | Yes |
| Adjustable push handles | Yes | Yes | Yes |
| Wheels with handrims | Yes | Yes | Yes |
| Transit wheels | Yes | Yes | Yes |
| Foldable | No | No | No |
| Seat width, min (cm) | 25 | 38 | 38 |
| Seat width, max (cm) | 38 | 55 | 55 |
| Seat depth, min (cm) | 25 | 44 | 44 |
| Seat depth, max (cm) | 45 | 55 | 55 |
| Seat height, min (cm) | 32 | 32 | 32 |
| Seat height, max (cm) | 47 | 47 | 47 |
| Back rest height, min. (cm) | 50 | 50 | 50 |
| Back rest height, max (cm) | 64 | 64 | 64 |
| Total width (cm) The narrowest possible configuration. | 62.5 | 62.5 | 62.5 |
| Total length (cm) | 104 | 104 | 104 |
| Weight (kg) The stated weight of the wheelchair is incl. wheels and leg supports. | 40 | 40 | 40 |
| User weight, max (kg) | 80 | 120 | 120 |
| Tilt-in-space forward (°) Measured from the horizontal position. | 6 | 0 | 0 |
| Tilt-in-space back (°) Measured from the horizontal position. | 30 | 30 | 30 |
| Back rest recline, max (°) Recline of back rest from an upright position. | 40 | 40 | 40 |
