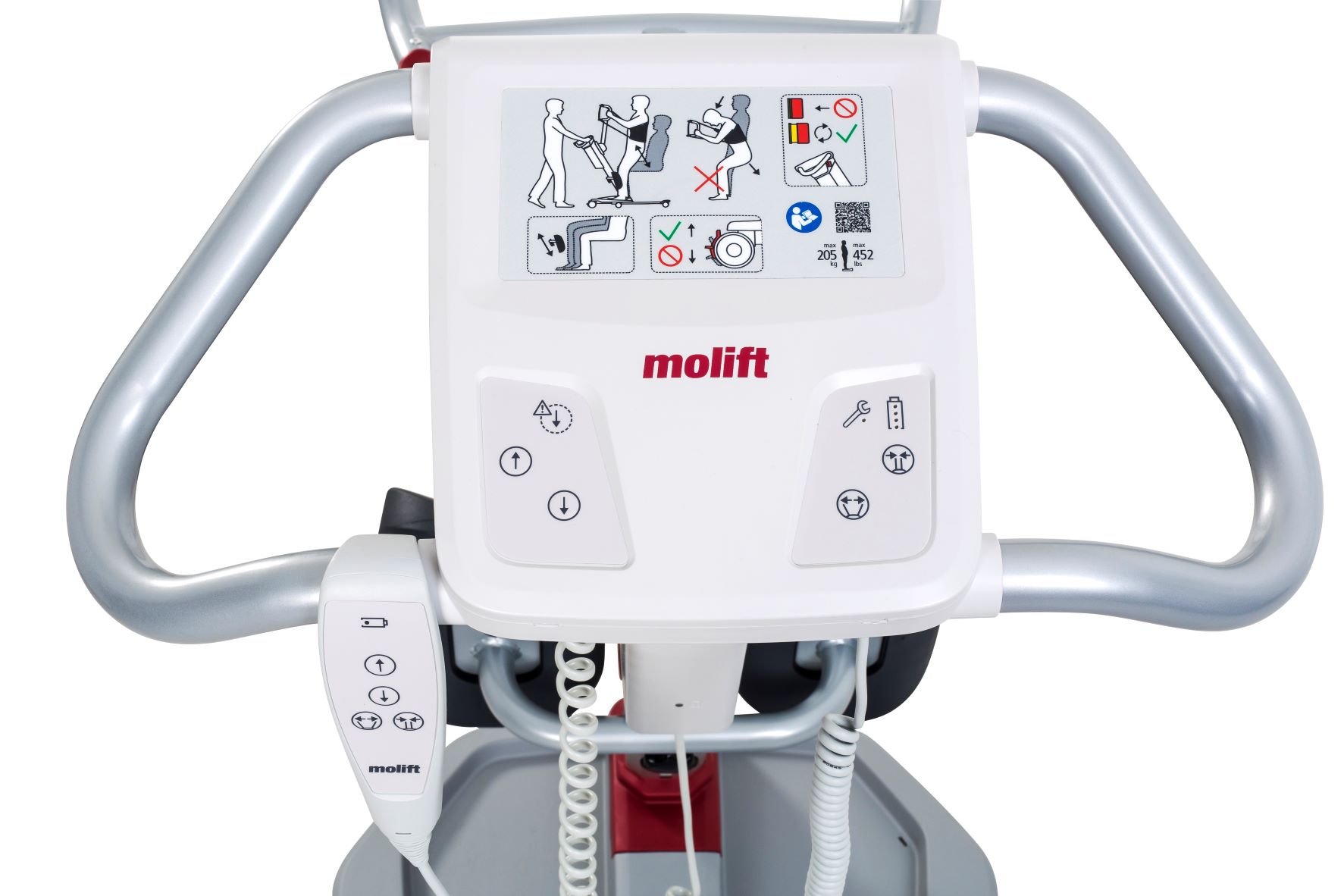

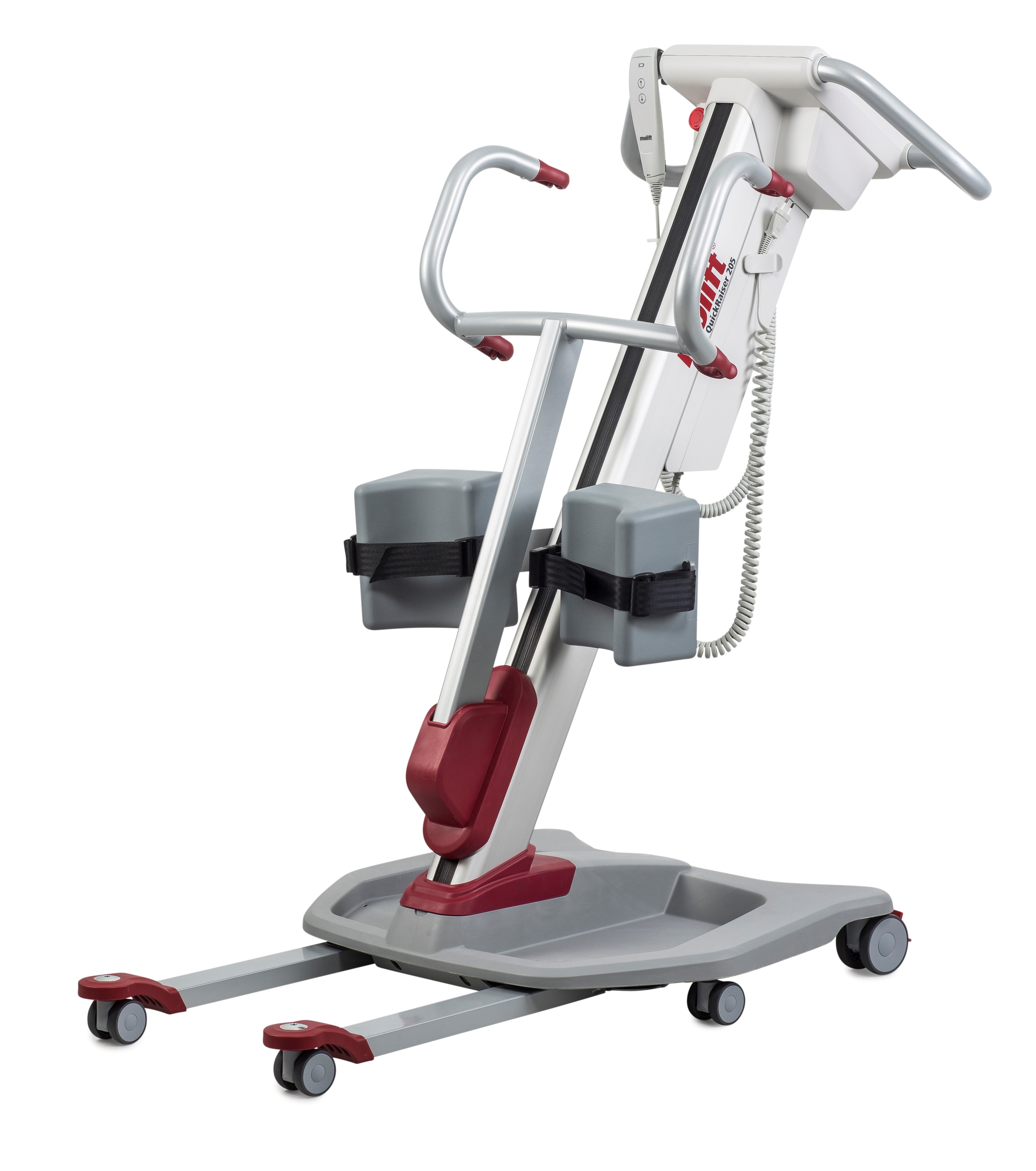

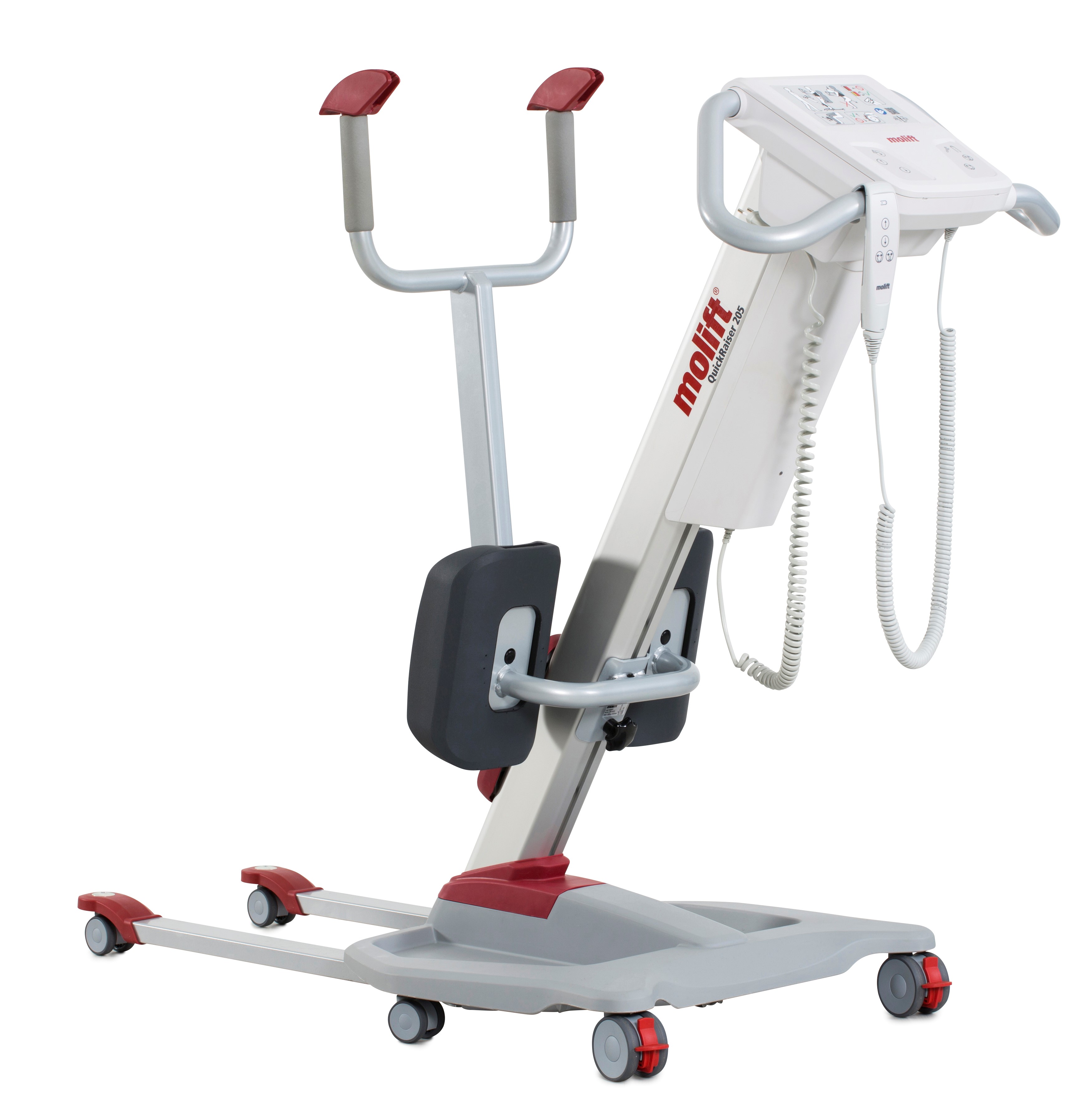

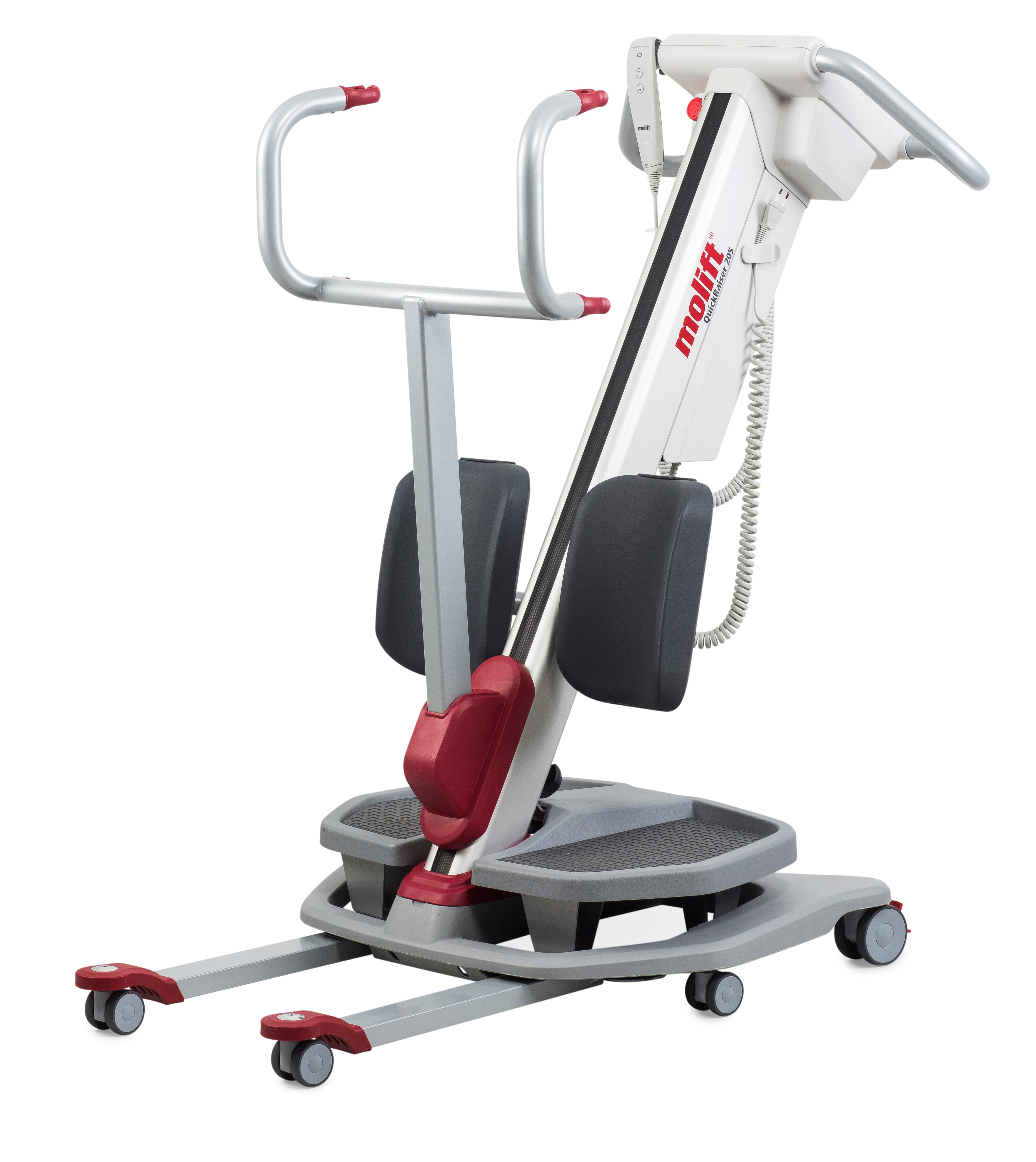

Molift Quick Raiser 205 sit to stand hoist



The Molift Quick Raiser 205 is a state-of-the-art sit-to-stand hoist with outstanding transfer capabilities and exceptional manoeuvrability. The design encourages a natural movement pattern and fulfils the lifting needs of users with some weight-bearing capacity.

Classification
12 36 04 01 - Mobile hoists for transferring a person in standing position




The product series contains 2 products.

Product 1 of 2
Molift QuickRaiser 205 med 100 mm hjul


HMI-no.
105098
Article-no.
M29100

Registration date
01-05-2017
Last updated
19-12-2023

Properties
Ingress protection class for water
IPX3
info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical width adjustment of base
No
Parallel width adjustment of base
No
Leg support adjustable in height
Yes
Leg support horizontal adjustable
No
Leg support adjustable without tools
Yes
Split leg support
Yes
Foldable
No
Can be disassembled without tools
Yes
Integrated battery charger
No
Emergency lowering function
Yes
Unit for use with sling(s) available
Yes

Measures
User weight, max
205
kg
Lifting height, max
82
cm
Internal width of base, max
20
cm
External width of base in the most narrow position
62
cm
Height of base at front
52
cm
Turning diameter
115
cm
info
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
19
kg
Maintenance frequency
12
måneder

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 2 of 2
Molift QuickRaiser 205 med 75 mm hjul


HMI-no.
105097
Article-no.
M29000

Registration date
01-05-2017
Last updated
19-12-2023

Properties
Ingress protection class for water
IPX3
info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical width adjustment of base
No
Parallel width adjustment of base
No
Leg support adjustable in height
Yes
Leg support horizontal adjustable
No
Leg support adjustable without tools
Yes
Split leg support
Yes
Foldable
No
Can be disassembled without tools
Yes
Integrated battery charger
No
Emergency lowering function
Yes
Unit for use with sling(s) available
Yes

Measures
User weight, max
205
kg
Lifting height, max
82
cm
Internal width of base, max
20
cm
External width of base in the most narrow position
62
cm
Height of base at front
27
cm
Turning diameter
115
cm
info
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
19
kg
Maintenance frequency
12
måneder

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
