KR HEAVY BED 400 - Bariatric Bed

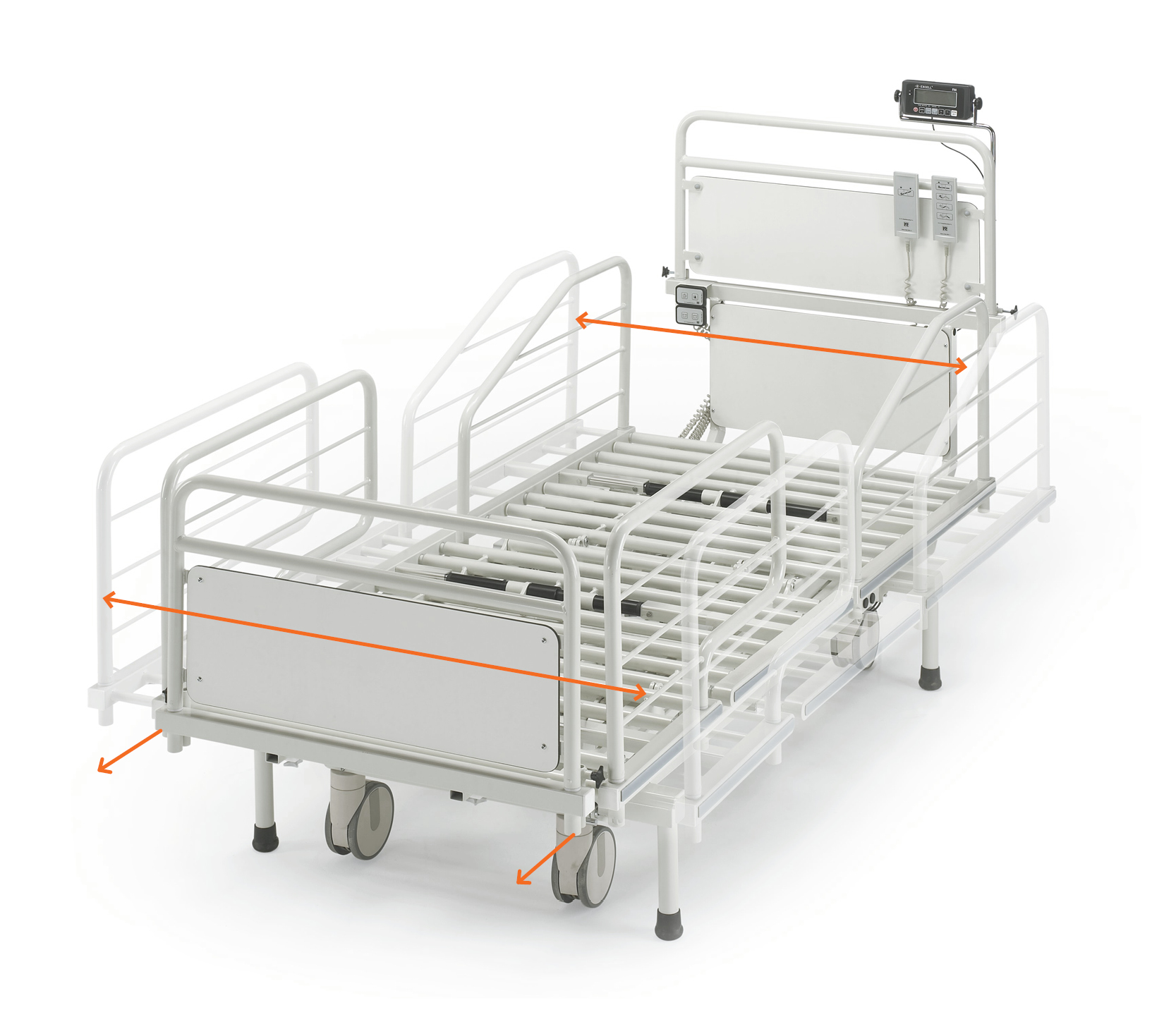

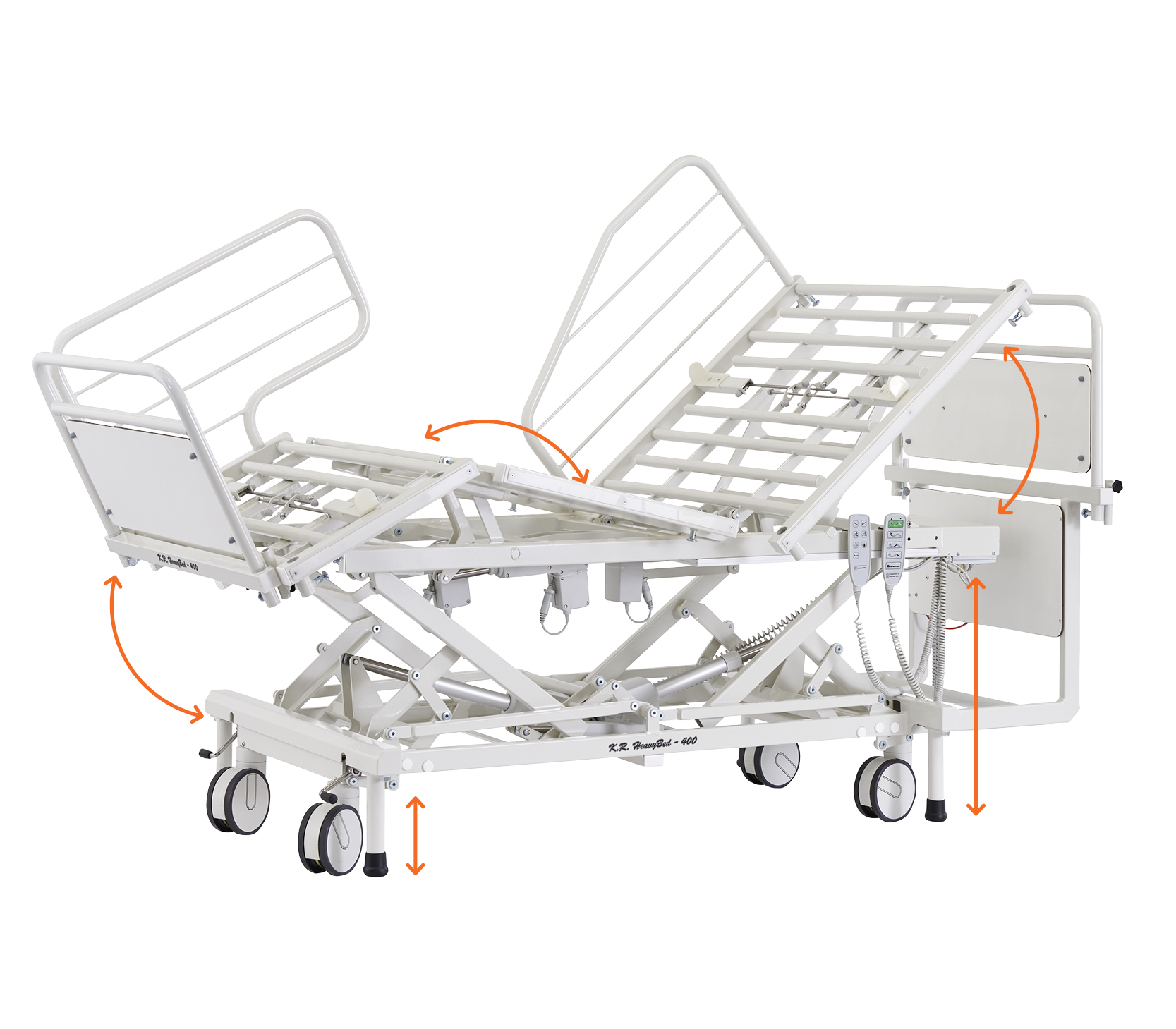

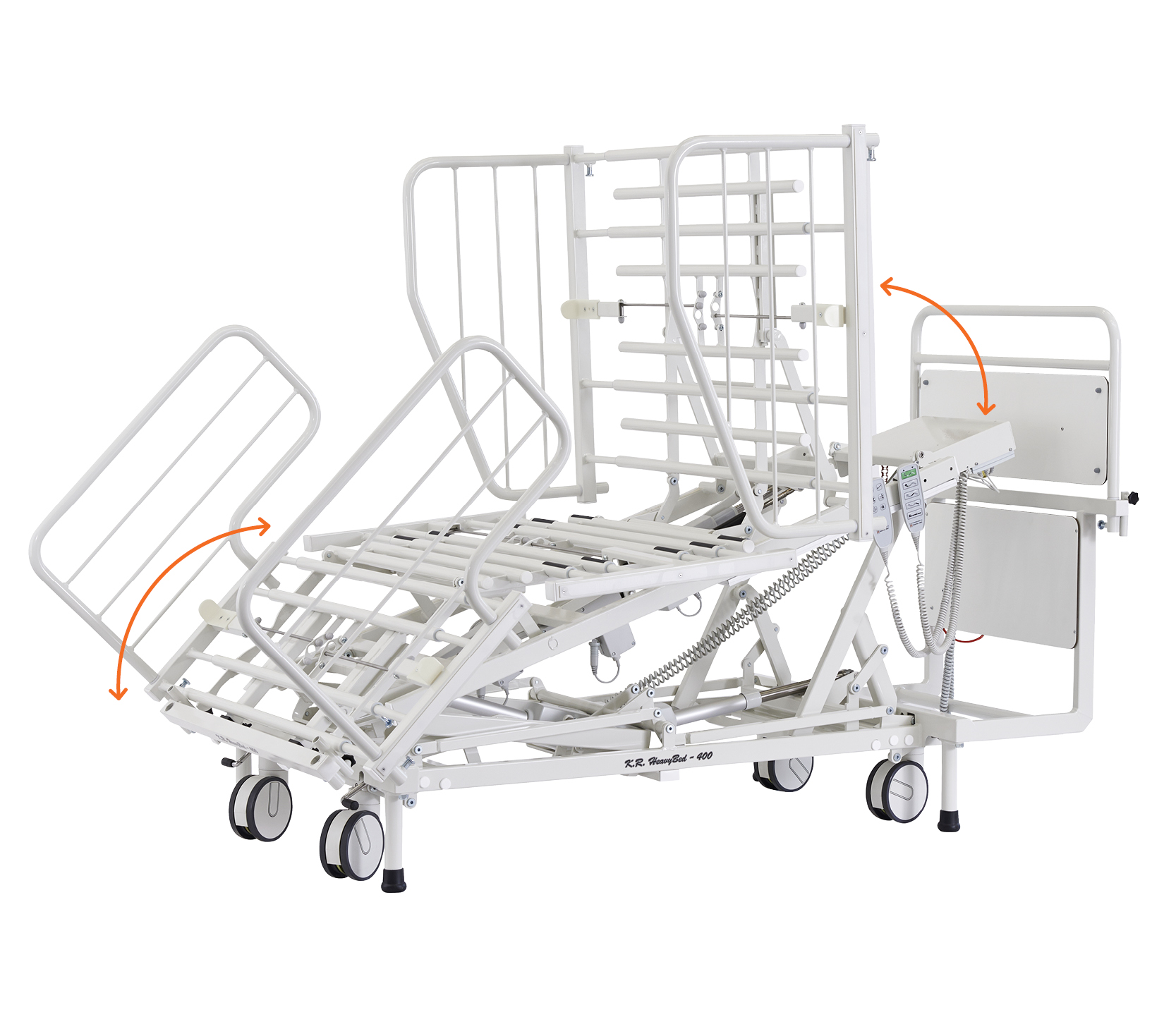

Users up to 400 kg. El. widening (30) cm and maual lengthening (20 cm). Mattress: 90-120x210-230 cm. Pre-programmed sitting positions. Removable boards. El. lift of wheels and 4 iron legs. El. anti- and trendelenburg. Battery backup, central brake and direction control. Accessories: Fixed or collapsible support grips, weight, bed mover etc

Classification
18 12 10 29 - Adjustable beds, 3-sectioned mattress support platform, electrically operated

Documents
Brochure
User manual
QuickGuide


The product series contains 1 product. The product below meets the specified details.

KR HEAVY BED 400


HMI-no.
43192
Article-no.
1430-104

Registration date
06-04-2006
Last updated
11-09-2025

Properties
Adjustment of the height of mattress support platform
Elektrisk
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
Yes
Intended for use in nursing institutions
No
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
No
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
No
Back rest section, electrical adjustment
Yes
Leg section, electrical adjustment
Yes
Separate adjustment of back rest
Yes
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
No
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
No
Removable self-lifting rail
No
Removable foot board
Yes
Removable head board
Yes
Heigh cot sides
No
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
Yes
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
Yes
Rotational mattress support platform, manual operation
No
Rotational mattress support platform, electrical operation
No

Measures
Outside measure length
259
cm
Measured without any bed extension
Outside measure width
131
cm
Measured including non-detachable accessories
Mattress size, length
210
cm
Mattress size, width
120
cm
Load, max
450
kg
Maximum external load on the product that is permitted in normal use
User weight, max
400
kg
Weight of heaviest main part
255
kg
Weight of heaviest part when disassembled without the use of tools.
Ingress protection class for water
5
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Mattress support platform, height above floor, min
43.5
cm
Measured without mattress
Mattress support platform, height above floor, max
88
cm
Measured without mattress
Under bed clearance
17
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.
Wheel diameter
15
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
