Hi-low indendørs - powered height adjustment

Hi-low indendørs - powered height adjustment

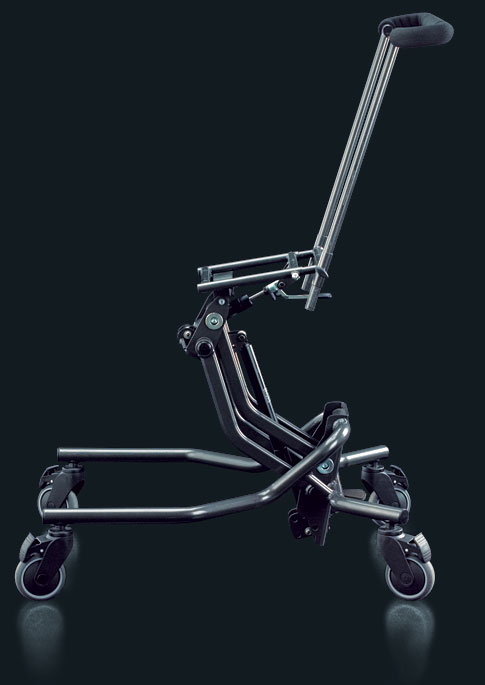

Hi-low chassis with angle adjustment for tilt in space. All adjustments can be made safely with the child in the seat.

Classification
12 22 18 06 - Frames for wheelchairs

Documents
Brochure
User manual


The product series contains 2 products. The product below meets the specified details.
Click show all products to see all products belonging to the product series.

Hi-low chassis for Mygo - powered height adjustment


HMI-no.
79780
Article-no.
840100100522

Registration date
04-07-2013
Last updated
11-09-2025

Properties
Can be subsequently equipped with propulsion unit
No
Can be mounted on a stair climber
No
Intended for fastening in a car
No
Height adjustable
Yes
Indoor use
Yes
Outdoor use
No
Push handles
Yes

Measures
Total width
40
cm
The narrowest possible configuration.
Total length
50
cm
Weight
12
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Load, max
50
kg
Including seat, accessories, and person.
Height, min
37
cm
Measured from the floor to the top of the adapter unit in the lowest position.
Height, max
67.5
cm
Measured from the floor to the top of the adapter unit in the highest position.
Tilt-in-space forward
10
°
Measured from the horizontal position.
Tilt-in-space back
25
°
Measured from the horizontal position.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
