Aquatec Ocean E-Vip

This product series and all belonging products have been discontinued by Invacare A/S since 26-06-2023

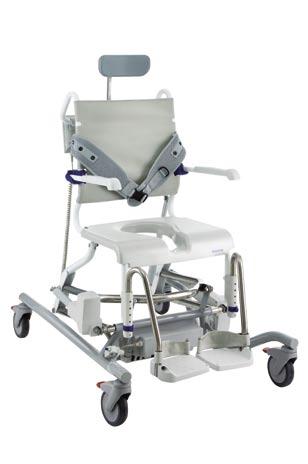

Aquatec Ocean E-Vip
While everybody is thinking of the demands of the patient, who is taking care of the difficulties the caretaker has to overcome each day? Lifting people in and out of chairs and looking after the personal hygiene of disabled people often might cause harm to the attendant and back injuries have become just one of the long-term effects.

Classification
09 12 03 11 - Commode shower chairs with wheels, tilt and electrical functions

Documents
Brochure
User manual
Accessories catalogue


The product series includes 1 discontinued product.

Product 1 of 1
Aquatec Ocean E-Vip

The product was discontinued from Invacare A/S 26-06-2023


HMI-no.
48580
Article-no.
1471208

Registration date
22-04-2008
Last updated
11-09-2025

Properties
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
Yes
Tilt-in-space dissociated from the height adjustment
Yes
The function of the tilt-in-space is separated from the hydraulic or electrical function of the height adjustment.
Head support
Yes
Battery chargeable separated from the product
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes

Measures
User weight, max
150
kg
Total width
73
cm
Ground clearance
101
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
47.5
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
45
cm
If the seat depth is adjustable, this is the maximum seat depth
Number of wheels with brake
4
Seat height, min
50
cm
Seat height, max
105
cm
Tilt-in-space forward
5
°
Measured from the horizontal position.
Tilt-in-space back
35
°
Measured from the horizontal position.
Ingress protection class for water
7
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
