Faaborg Liften Nordic

Faaborg Liften Nordic

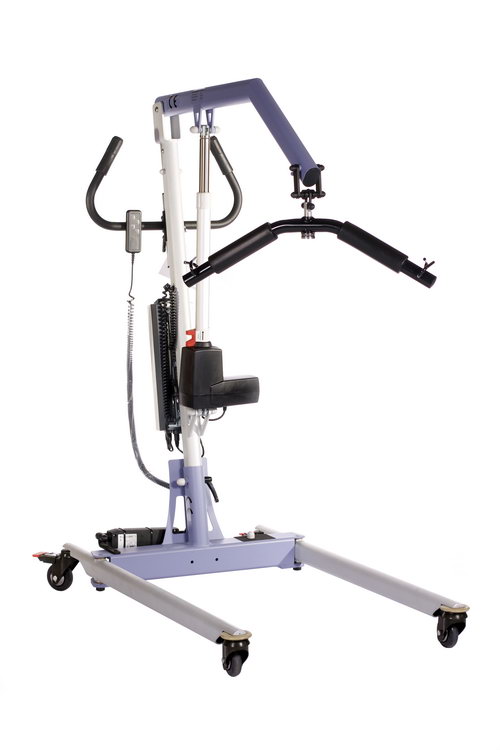

The lift has Electronic spreading of the legs which move a full length like the traditional V-lifts. This Means that the distance between the castor is reduced slightly when spreding the legs. In the Electric version the legs are spead quietly and steadily.

Classification
12 36 03 04 - Mobile hoists for transferring a person in sitting position with sling seats

Documents
Brochure
User manual


The product serie includes 4 products. 3 of these products are discontinued from the supplier.

» Summarize specifications

Product 1 of 4
CareLine Fionia 135 m. Faaborg-styring

The product was discontinued from Faaborg Rehab Technic ApS 20-12-2012


HMI-no.
26595
Article-no.
2004-135-1

Registration date
25-07-2000
Last updated
14-08-2025

Properties
Width adjustment of base
Ja, elektrisk

Properties
Lifting movement
Vertikal
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can be disassembled without tools
Yes
Can lift from floor level
Yes
Standing mobile hoist unit available
Yes
Integrated battery charger
Yes
Emergency lowering function
Yes

Measures
User weight, max
135
kg
Internal width of base, max
100
cm
Measured with the base in the widest position
External width of base in the most narrow position
64
cm
Height of base at front
13
cm
Turning diameter
123
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
24
kg
Ingress protection class for water
5
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Maintenance frequency
12
måneder

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking

Product 2 of 4
CareLine Fionia 135 m. Linak-styring

The product was discontinued from Faaborg Rehab Technic ApS 17-12-2024


HMI-no.
46651
Article-no.
2004-135-2

Registration date
08-08-2007
Last updated
14-08-2025

Properties
Width adjustment of base
Ja, elektrisk

Properties
Width adjustable movement
V-formet

Properties
Lifting movement
Vertikal
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can be disassembled without tools
Yes
Can lift from floor level
Yes
Standing mobile hoist unit available
Yes
Integrated battery charger
Yes
Emergency lowering function
Yes

Measures
User weight, max
135
kg
Internal width of base, max
100
cm
Measured with the base in the widest position
External width of base in the most narrow position
64
cm
Height of base at front
13
cm
Turning diameter
123
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
24
kg
Ingress protection class for water
5
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Maintenance frequency
12
måneder

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking

Product 3 of 4
CareLine Fionia 165 m. Faaborg-styring

The product was discontinued from Faaborg Rehab Technic ApS 20-12-2012


HMI-no.
17336
Article-no.
2004-165-1

Registration date
08-01-1998
Last updated
14-08-2025

Properties
Width adjustment of base
Ja, elektrisk

Properties
Lifting movement
Vertikal
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can be disassembled without tools
Yes
Can lift from floor level
Yes
Standing mobile hoist unit available
Yes
Integrated battery charger
Yes
Emergency lowering function
Yes

Measures
User weight, max
165
kg
Internal width of base, max
100
cm
Measured with the base in the widest position
External width of base in the most narrow position
64
cm
Height of base at front
13
cm
Turning diameter
123
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
24
kg
Ingress protection class for water
5
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Maintenance frequency
12
måneder

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking

Product 4 of 4
CareLine Fionia 165 m. Linak-styring


HMI-no.
46652
Article-no.
2004-165-2

Registration date
08-08-2007
Last updated
14-08-2025

Properties
Width adjustment of base
Ja, elektrisk

Properties
Width adjustable movement
V-formet

Properties
Lifting movement
Vertikal
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can be disassembled without tools
Yes
Can lift from floor level
Yes
Standing mobile hoist unit available
Yes
Integrated battery charger
Yes
Emergency lowering function
Yes

Measures
User weight, max
165
kg
Internal width of base, max
100
cm
Measured with the base in the widest position
External width of base in the most narrow position
64
cm
Height of base at front
13
cm
Turning diameter
123
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
24
kg
Ingress protection class for water
5
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Maintenance frequency
12
måneder

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
