Co Pilot 3, 3-wheeled Tandem

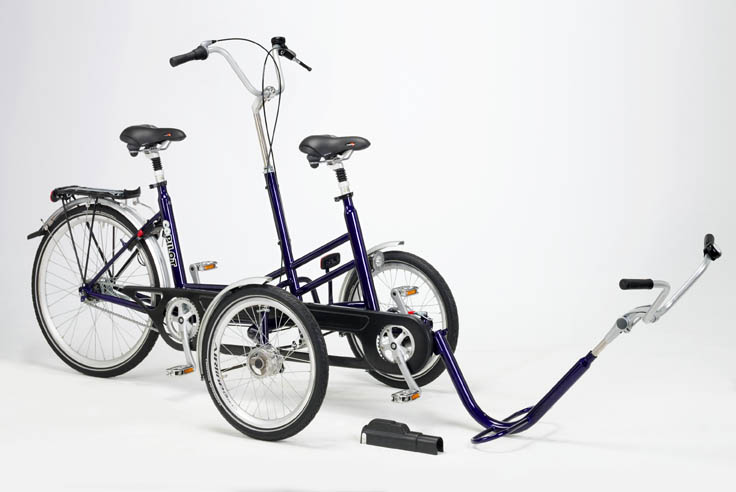

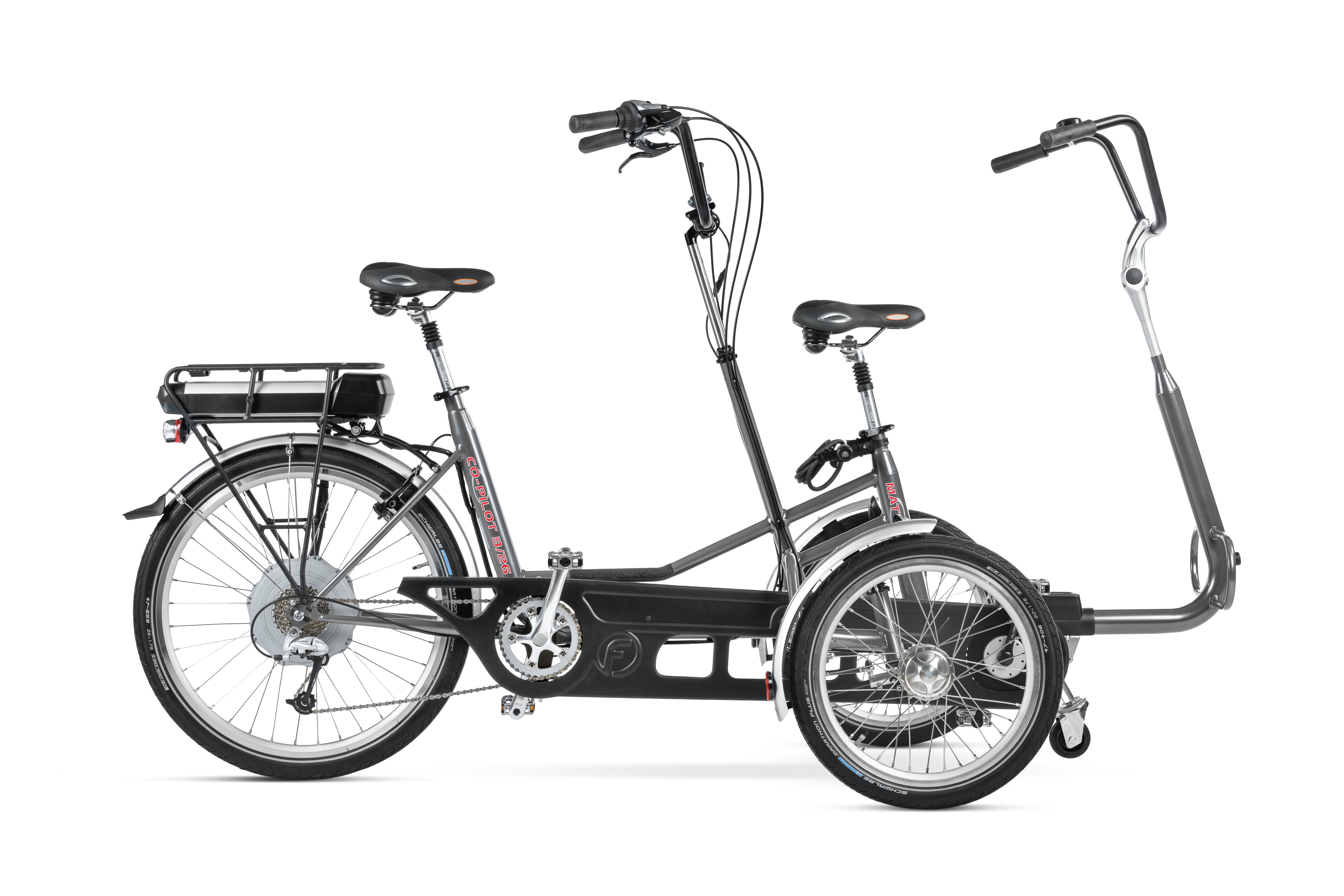

The 3wheel tandem, with 2 wheels in front.
Alternative solution for those who do not feel safe on a 2wheeltandem. The disabled person sits in front.
Available in two models. Additional equipment:Back support, spec. pedals, idler hub and freewheel hub in front, reverse gear, can lev. with auxiliary motor. Standard with hydraulic brake on front wheel
Alternative solution for those who do not feel safe on a 2wheeltandem. The disabled person sits in front.
Available in two models. Additional equipment:Back support, spec. pedals, idler hub and freewheel hub in front, reverse gear, can lev. with auxiliary motor. Standard with hydraulic brake on front wheel
Classification
12 18 15 08 - Tandems with three wheels
Documents
BrochureThe product serie includes 6 products. 2 of these products are discontinued from the supplier.
Specifications summarized
Specifications for the 6 products in the product series. Click a HMI-no. to see all details for a single product.| Product 1 - 6 | ||||||
|---|---|---|---|---|---|---|
| Specification/HMI-no. | 38971 | 104946 discont. | 104945 discont. | 139906 | 44507 | 139993 |
| One crank can be disabled | Yes | Yes | Yes | Yes | No | Yes |
| Dual steering possible | No | - | - | No | No | No |
| Power-assist unit | No | No | No | No | Yes | Yes |
| Hand propulsion | No | No | No | No | No | No |
| Steering and gear operation from frontseat | No | No | No | No | No | No |
| Steering and gear operation from backseat | Yes | Yes | Yes | Yes | Yes | Yes |
| Adult/adult | Yes | Yes | Yes | Yes | Yes | Yes |
| Adult/child | Yes | No | Yes | Yes | Yes | Yes |
| Load, max (kg) | 180 | 180 | 180 | 180 | 180 | 200 |
| Weight (kg) | 30 | 30 | 30 | 30 | 30 | 31 |
| Number of gears | 7 | 8 | 8 | 7 | 7 | 7 |
| Inside leg, min, front seat (cm) | 50 | 72 | 51.5 | 50 | 50 | 69 |
| Inside leg, max, front seat (cm) | 78 | 88 | 86 | 78 | 78 | 97 |
| Inside leg, min, back seat (cm) | 71 | 85 | 65 | 71 | 71 | 85 |
| Inside leg, max, back seat (cm) | 90 | 91 | 85 | 90 | 90 | 99 |
