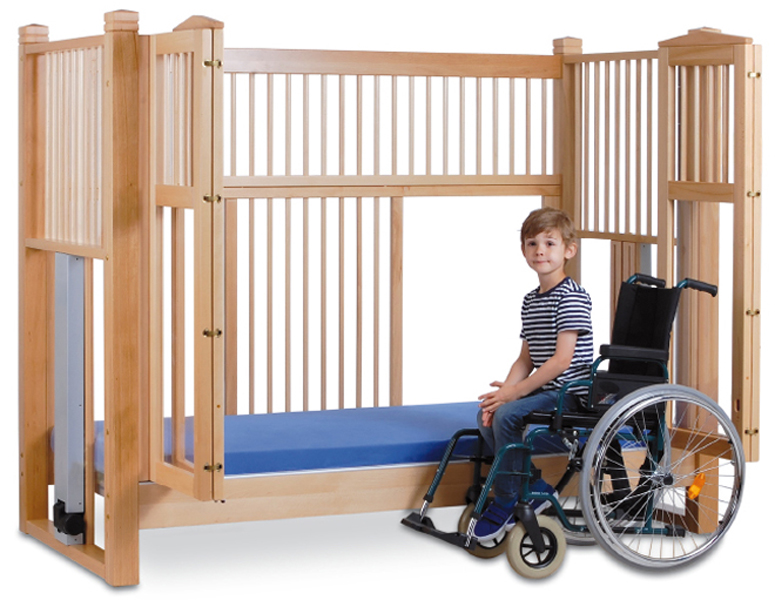

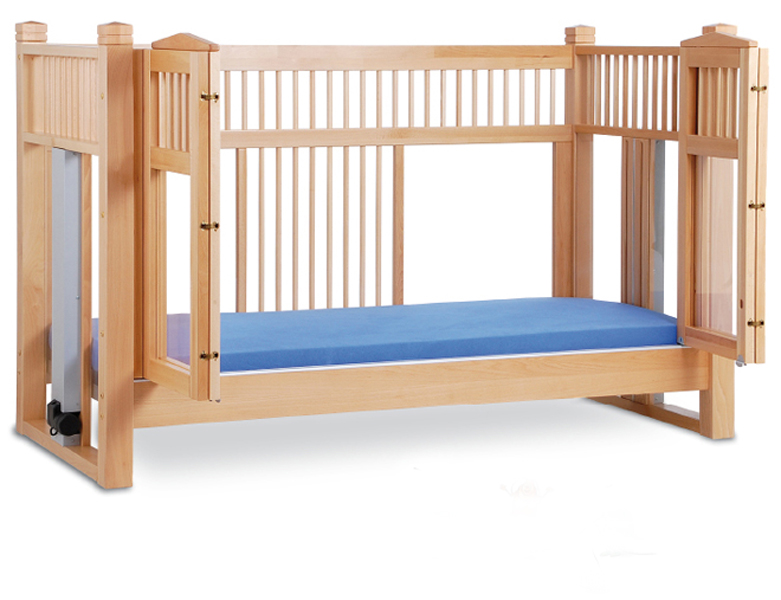

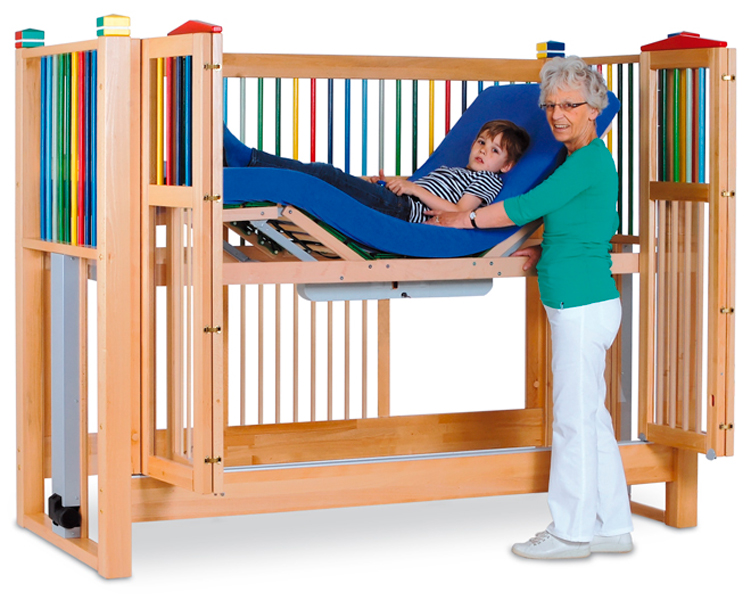

Olaf Nordic high cot




Classification
18 12 10 27 - Adjustable cots, electrically operated

Documents
Brochure


The product series contains 2 products.

» Summarize specifications

Product 1 of 2
Olaf 98 Nordic high cot 170/90 cm.


HMI-no.
43068
Article-no.
KBOLAF

Registration date
31-03-2006
Last updated
14-11-2025

Properties
Adjustment of the height of mattress support platform
Elektrisk
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
Yes
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
No
Removable bed-rails
No
Removable self-lifting rail
Yes
Removable foot board
No
Removable head board
No
Heigh cot sides
Yes
Intended to prevent a person (usually a child) in getting out of the bed.
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No

Measures
Outside measure length
185
cm
Measured without any bed extension
Outside measure width
105
cm
Measured including non-detachable accessories
Mattress size, length
170
cm
Mattress size, width
90
cm
Load, max
170
kg
Maximum external load on the product that is permitted in normal use
User weight, max
135
kg
Weight of heaviest main part
130
kg
Weight of heaviest part when disassembled without the use of tools.
Ingress protection class for water
4
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Mattress support platform, height above floor, min
42.5
cm
Measured without mattress
Mattress support platform, height above floor, max
112.5
cm
Measured without mattress
Under bed clearance
235
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.
Wheel diameter
5
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking

Product 2 of 2
Olaf 98 Nordic high cot 200/90 cm.


HMI-no.
141020
Article-no.
KBOLAF22

Registration date
13-08-2024
Last updated
14-11-2025

Properties
Adjustment of the height of mattress support platform
Elektrisk
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
Yes
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
No
Removable bed-rails
No
Removable self-lifting rail
Yes
Removable foot board
No
Removable head board
No
Heigh cot sides
Yes
Intended to prevent a person (usually a child) in getting out of the bed.
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No

Measures
Outside measure length
215
cm
Measured without any bed extension
Outside measure width
105
cm
Measured including non-detachable accessories
Mattress size, length
200
cm
Mattress size, width
90
cm
Load, max
170
kg
Maximum external load on the product that is permitted in normal use
User weight, max
135
kg
Weight of heaviest main part
130
kg
Weight of heaviest part when disassembled without the use of tools.
Ingress protection class for water
4
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Mattress support platform, height above floor, min
22
cm
Measured without mattress
Mattress support platform, height above floor, max
118
cm
Measured without mattress
Under bed clearance
0
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 141020
