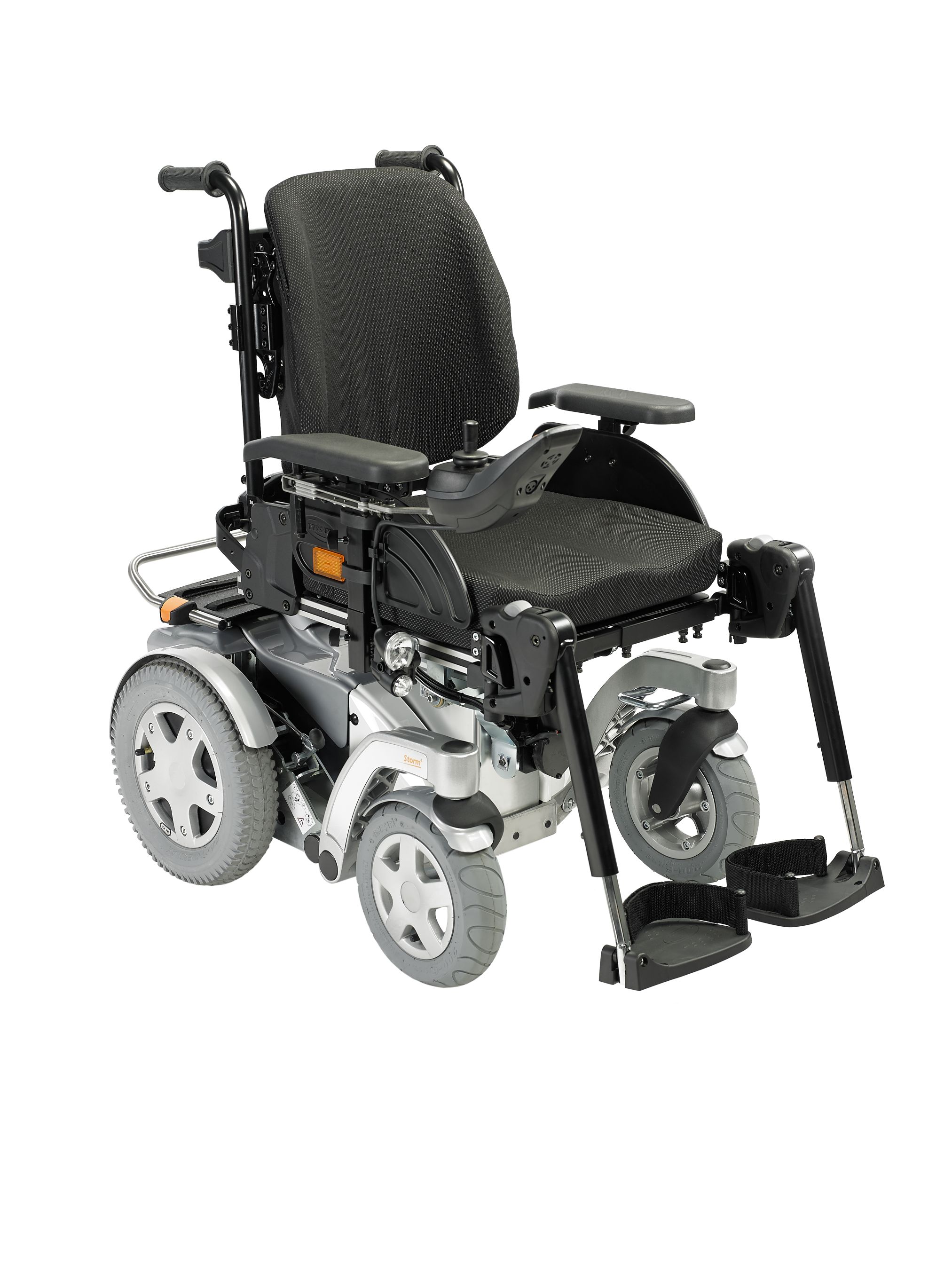

Invacare Storm4



The Storm4 power wheelchair has been created to satisfy even the most demanding user requirements regarding onfigurability, adaptability and functionality. The construction of the driving unit makes services simple and swift.

Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)

Documents
Brochure
User manual
Accessories catalogue
Service manual


The product series contains 1 product.

Product 1 of 1
Invacare Storm4


HMI-no.
51488
Article-no.
Konfigurerbar

Registration date
01-04-2009
Last updated
11-09-2025

Properties
Programmable
Yes
Elevating seat
Yes
Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
No
Rear-wheel-driven
Yes
Can be used as seat in a car
Yes

Measures
User weight, max
150
kg
External width
63
cm
Measured where widest
External length
119
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
174
kg
Speed, max
10
km/t
Driving distance range, fully charged
36
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
40
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
65
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
40
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
28
°
Measured from the horizontal position.
Ground clearance
7
cm
Slope, max
11
°
Climbs obstacles of max
6
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
