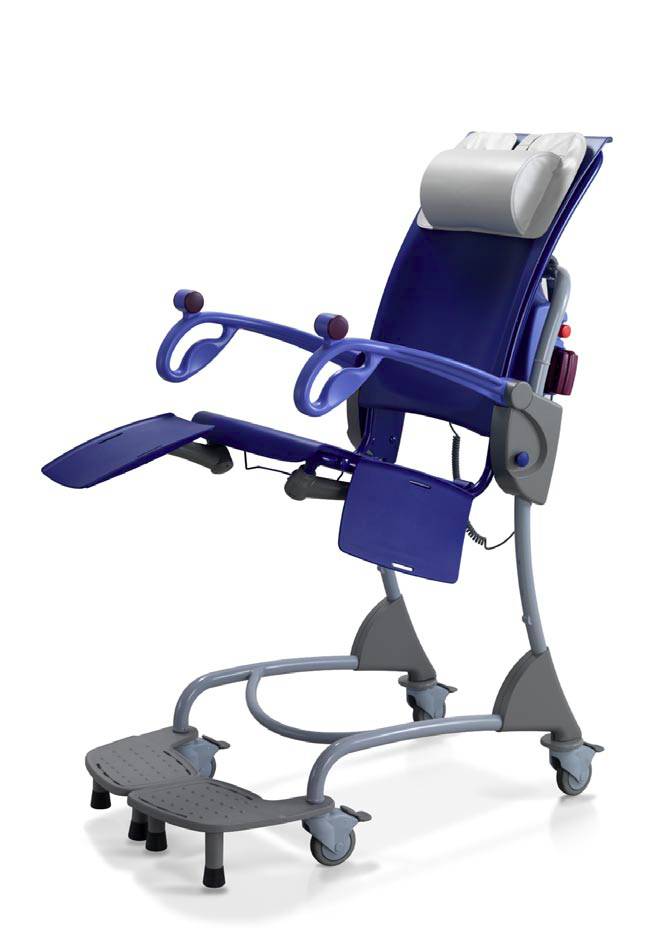

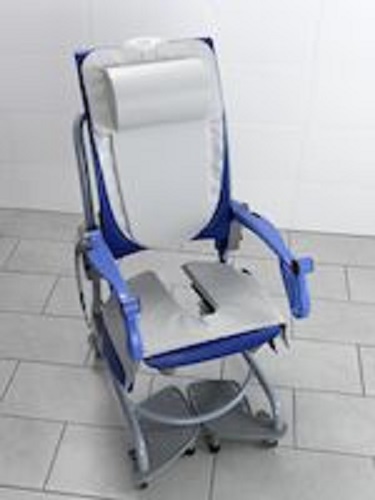

Carino, height adjustable shower and commode chair



With Carino, showering and other hygiene routines can be carried out by one caregiver, thus facilitating personal one-to-one interactions. Designed to reduce the number of transfers required for assisted hygiene. Height-adjustability allows the caregiver to reach the preferred working height at all times.

Classification
09 12 03 11 - Commode shower chairs with wheels, tilt and electrical functions

Documents
Brochure
User manual
QuickGuide


The product series contains 1 product.

Product 1 of 1
Carino, height adjustable shower and commode chair


HMI-no.
55806
Article-no.
BOC1001-01

Registration date
25-06-2010
Last updated
11-09-2025

Properties
Height adjustable
Elektrisk
Tension adjustable back rest upholstery
No
Can be used with standard wall-mounted toilets (without extension)
No
Possibility to change position of armrest to allow sideways transfer
Yes
Powered tilt
Yes
Tilt-in-space dissociated from the height adjustment
No
The function of the tilt-in-space is separated from the hydraulic or electrical function of the height adjustment.
Head support
Yes
Battery chargeable separated from the product
Yes
Emergency stopping function
Yes
Fold-up foot supports
Yes
Height adjustable legrests
No
Elevating legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes

Measures
User weight, max
140
kg
Total width
62
cm
Ground clearance
100
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
47.5
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
43
cm
If the seat depth is adjustable, this is the maximum seat depth
Wheel diameter
100
mm
Number of wheels with brake
4
Seat height, min
45
cm
Seat height, max
105
cm
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
23
°
Measured from the horizontal position.
Height of push handles/push bar, min.
0
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
0
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position
Ingress protection class for water
6
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
: Tested according to other national or international standard.
Test lab: TÜV SÜD. Test date: 30-10-2017 Test report for HMI-no. 55806

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
