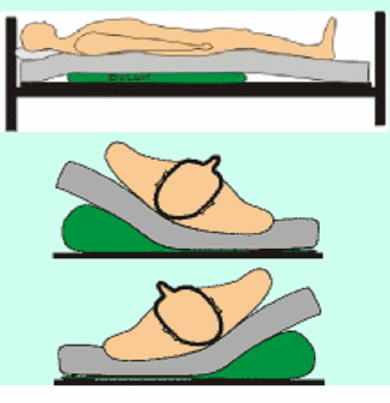

A/D-Surcon Antidecubitus/Turn System
Classification
12 31 03 23 - Powered sliding and turning products
Documents
BrochureVideo
Play videoThe product series contains 4 products.
Product 1 of 4
A/D-Surcon Antidecubitus/Turn System
HMI-no.
62447
Article-no.
04-62447
Registration date
08-12-2010
Last updated
14-08-2025
Properties
Positioning by means of
luft
Intended for use in hospitals
Yes
Intended for use in nursing institutions
Yes
Intended for use in a domestic area
Yes
Can also be used in adjusted positions of the support surface
Yes
Placed under the mattress
Yes
Placed on top of the mattress
No
Secured in or on the bed
Yes
Automated tilt function
Yes
Possibility for setting automated cycle for e.g. time interval and tilt.
Measures
Length
200
cm
Width
80
cm
User weight, max
300
kg
Load, max
300
kg
User weight, mattress and other accessories.
Intended for mattress length, max.
200
cm
Intended for mattress width, max.
80
cm
Ingress protection class for water
3
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 2 of 4
A/D-Surcon Antidecubitus/Turn System
HMI-no.
62448
Article-no.
04-42448
Registration date
08-12-2010
Last updated
14-08-2025
Properties
Positioning by means of
luft
Intended for use in hospitals
Yes
Intended for use in nursing institutions
Yes
Intended for use in a domestic area
Yes
Can also be used in adjusted positions of the support surface
Yes
Placed under the mattress
Yes
Placed on top of the mattress
No
Secured in or on the bed
Yes
Automated tilt function
Yes
Possibility for setting automated cycle for e.g. time interval and tilt.
Measures
Length
200
cm
Width
85
cm
User weight, max
300
kg
Load, max
300
kg
User weight, mattress and other accessories.
Intended for mattress length, max.
200
cm
Intended for mattress width, max.
85
cm
Ingress protection class for water
3
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 3 of 4
A/D-Surcon Antidecubitus/Turn System
HMI-no.
62449
Article-no.
04-62449
Registration date
08-12-2010
Last updated
14-08-2025
Properties
Positioning by means of
luft
Intended for use in hospitals
Yes
Intended for use in nursing institutions
Yes
Intended for use in a domestic area
Yes
Can also be used in adjusted positions of the support surface
Yes
Placed under the mattress
Yes
Placed on top of the mattress
No
Secured in or on the bed
Yes
Automated tilt function
Yes
Possibility for setting automated cycle for e.g. time interval and tilt.
Measures
Length
200
cm
Width
90
cm
User weight, max
300
kg
Load, max
300
kg
User weight, mattress and other accessories.
Intended for mattress length, max.
200
cm
Intended for mattress width, max.
90
cm
Ingress protection class for water
3
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 4 of 4
A/D-Surcon Antidecubitus/Turn System
HMI-no.
78053
Article-no.
04-78053
Registration date
11-04-2013
Last updated
14-08-2025
Properties
Positioning by means of
luft
Intended for use in hospitals
Yes
Intended for use in nursing institutions
Yes
Intended for use in a domestic area
Yes
Can also be used in adjusted positions of the support surface
Yes
Placed under the mattress
Yes
Placed on top of the mattress
No
Secured in or on the bed
Yes
Automated tilt function
Yes
Possibility for setting automated cycle for e.g. time interval and tilt.
Measures
Length
200
cm
Width
83
cm
User weight, max
300
kg
Load, max
300
kg
User weight, mattress and other accessories.
Intended for mattress length, max.
200
cm
Intended for mattress width, max.
83
cm
Ingress protection class for water
3
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
