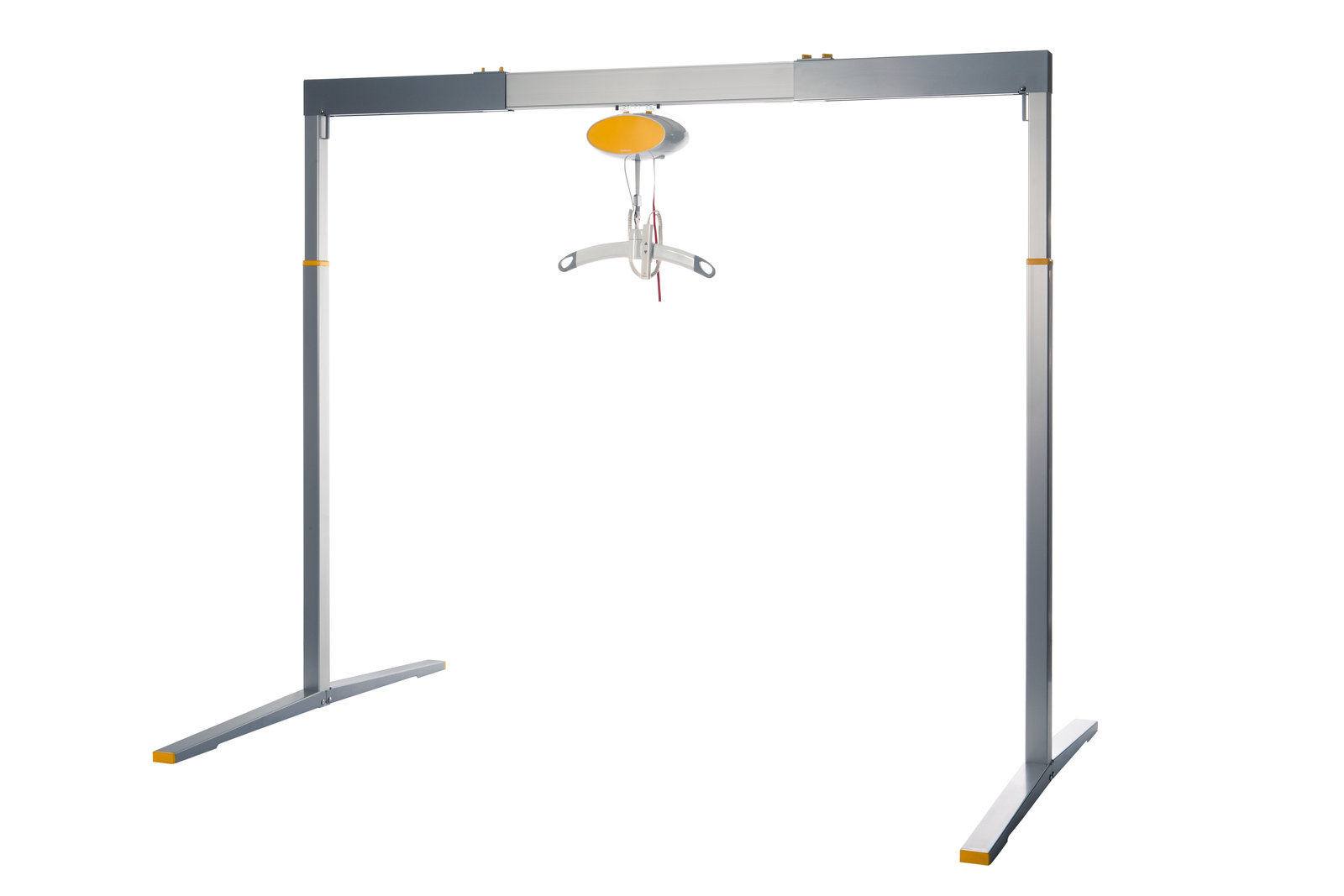

Free-standing single rail-system

Free-standing single rail-system

Classification
12 36 18 03 - Stationary free-standing hoists

Documents
User manual
Spare part catalogue


The product series contains 3 products.

» Summarize specifications

Product 1 of 3
Free-standing single rail-system - 2,2 - 3,4 m


HMI-no.
106871
Article-no.
556000

Registration date
02-11-2017
Last updated
18-02-2025

Properties
Electrical lifting mechanism
Yes
Electrical horizontal movement
Yes
Room covering rail system
No
External battery charger
Yes
Charging station at track
Yes
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
No

Measures
User weight, max
250
kg
Max lifting velocity, loaded
0.04
m/s
Max length of rail
339
cm
Min. length of rail
222
cm
Max height to top of rail
282
cm
Min. height to top of rail
202
cm
Min. distance from top of rail to central suspension point
8.2
cm
Weight of lifting machinery
9.6
kg
Maintenance frequency
12
måneder

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 2 of 3
Free-standing single rail-system - 2,7 - 3,9 m


HMI-no.
64115
Article-no.
553000

Registration date
24-03-2011
Last updated
14-08-2025

Properties
Electrical lifting mechanism
Yes
Electrical horizontal movement
Yes
Room covering rail system
No
External battery charger
Yes
Charging station at track
Yes
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
No

Measures
User weight, max
250
kg
Max lifting velocity, loaded
0.04
m/s
Max length of rail
389
cm
Min. length of rail
272
cm
Max height to top of rail
282
cm
Min. height to top of rail
202
cm
Min. distance from top of rail to central suspension point
8.2
cm
Weight of lifting machinery
9.6
kg
Ingress protection class for water
0
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Maintenance frequency
12
måneder

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 3 of 3
Free-standing single rail-system - 3,2 - 4,4 m


HMI-no.
106872
Article-no.
556297

Registration date
02-11-2017
Last updated
18-02-2025

Properties
Electrical lifting mechanism
Yes
Electrical horizontal movement
Yes
Room covering rail system
No
External battery charger
Yes
Charging station at track
Yes
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
No

Measures
User weight, max
250
kg
Max lifting velocity, loaded
0.04
m/s
Max length of rail
439
cm
Min. length of rail
322
cm
Max height to top of rail
282
cm
Min. height to top of rail
202
cm
Min. distance from top of rail to central suspension point
8.2
cm
Weight of lifting machinery
9.6
kg
Maintenance frequency
12
måneder

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
