Ichair MC3

Ichair MC3

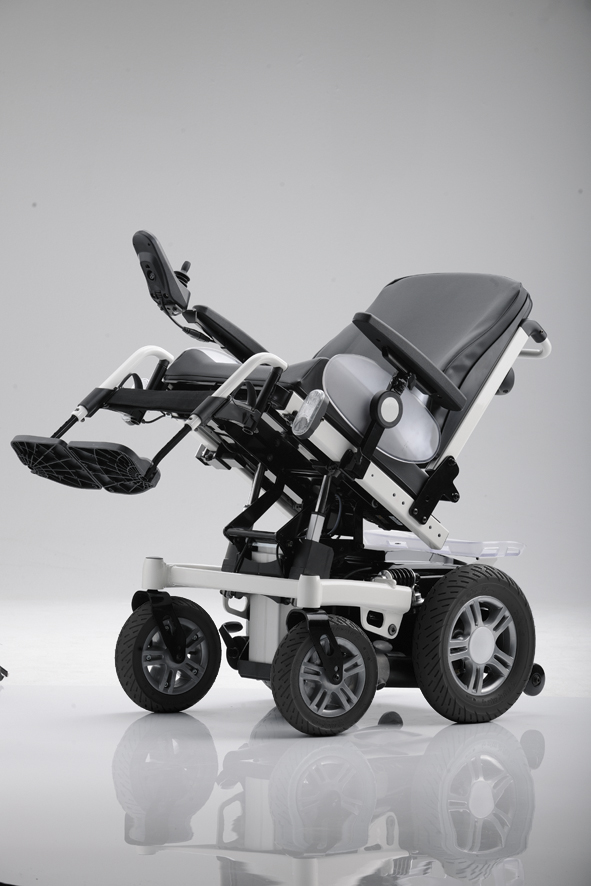

The Ichair MC3 is an electric wheelchair with a modular seat system; seat width and depth are adjustable for individual fitting. The design allows reuse and service. The chair can be equipped with all electric functions and double suspension to match the users driving style.

Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)



The product series contains 1 product.

Product 1 of 1
Ichair MC3


HMI-no.
64223
Article-no.
70502

Registration date
05-04-2011
Last updated
11-09-2025

Properties
Programmable
Yes
Elevating seat
Yes
Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
No
Rear-wheel-driven
Yes
Can be used as seat in a car
Yes

Measures
User weight, max
160
kg
External width
63
cm
Measured where widest
External length
87
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
108
kg
Speed, max
10
km/t
Driving distance range, fully charged
40
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
46
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
67
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
60
°
Recline of back rest from an upright position.
Tilt-in-space forward
2
°
Measured from the horizontal position.
Tilt-in-space back
33
°
Measured from the horizontal position.
Ground clearance
10
cm
Slope, max
27
°
Climbs obstacles of max
6
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
