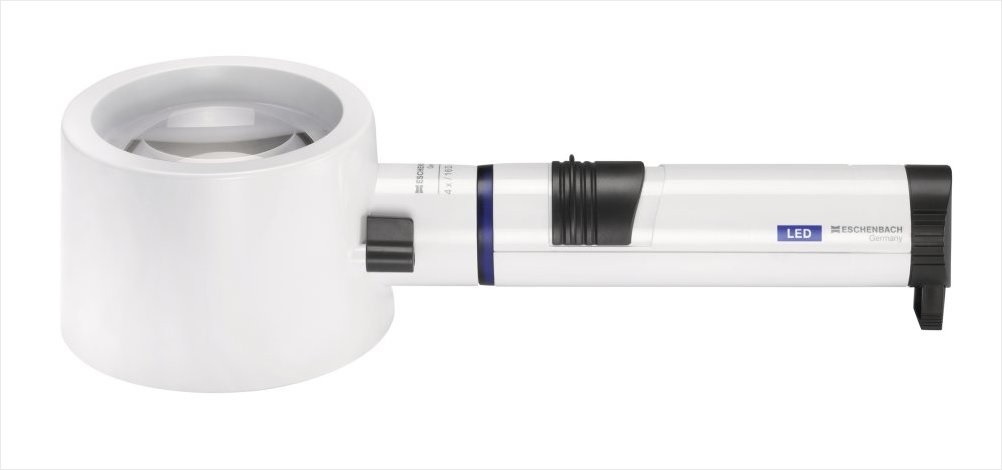

System Vario Plus Illuminated LED



The Eschenbach System Vario Plus offers 9 different magnification levels from 2.8x to 12.5x and a whole variety of illumination options. The system is therefore extremely versatile and can be adapted to suit individual requirements. Particularly suitable for users who cannot hold magnifiers freely (e.g. age-related shaking or Parkinsons disease)

Classification
22 03 09 09 - Dome and bar magnifiers

Documents


The product series contains 9 products.

Product 1 of 9
System Vario Plus Illuminated LED Magnifier 100x50mm (3x)


HMI-no.
Article-no.
E158064

Registration date
31-07-2009
Last updated
21-11-2023

Properties
Bar magnifier
No
Replaceable lens
Yes
With light
Yes
Battery-powered
Yes
Mains supply
No

Measures
Magnification
3
X
Optical strength
7.6
D

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Rectangular Yellow filter LED Stand Magnifier
Additional yellow filter 4 dioptre lens
Powerful LED light source
Magnification 3x
Dioptre 7.6D
Lens size (Diameter) 100 x 50mm/3.9 x 2 inches
Lens shape & design Rectangle aspheric PXM plastic lens
Liue


Product 2 of 9
System Vario Plus Illuminated LED Magnifier 100x70mm (2,8x)


HMI-no.
Article-no.
E158264

Registration date
31-07-2009
Last updated
21-11-2023

Properties
Bar magnifier
No
Replaceable lens
Yes
With light
Yes
Battery-powered
Yes
Mains supply
No

Measures
Magnification
2.8
X
Optical strength
7
D

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Magnification 2.8x (Magnifier Head with Yellow filter)
Additional yellow filter 4 dioptre lens
Dioptre 7D
Lens size (Diameter) 100 x 75mm/3.9 x 3 inches
Lens shape & design Rectangle aspheric PXM plastic lens


Product 3 of 9
System Vario Plus Illuminated LED Magnifier 35mm (10x)


HMI-no.
Article-no.
E155074

Registration date
31-07-2009
Last updated
21-11-2023

Properties
Bar magnifier
No
Replaceable lens
Yes
With light
Yes
Battery-powered
Yes
Mains supply
No

Measures
Magnification
10
X
Optical strength
38
D

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Magnification 10x
Dioptre 38D
Lens size (Diameter) 35mm/1.4 inches
Lens shape & design Round aspheric PXM plastic lens
Light colour/temperature White
Power supply Battery Operated - 2x C Size
Powerful LED light source
Magnifier length 219mm (8.62 i


Product 4 of 9
System Vario Plus Illuminated LED Magnifier 35mm (12,5x)


HMI-no.
Article-no.
E155774

Registration date
31-07-2009
Last updated
21-11-2023

Properties
Bar magnifier
No
Replaceable lens
Yes
With light
Yes
Battery-powered
Yes
Mains supply
No

Measures
Magnification
12.5
X
Optical strength
50
D

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Magnification 12.5x
Dioptre 50D
Lens size (Diameter) 35mm/1.4 inches
Lens shape & design Round aspheric PXM plastic lens
Light colour/temperature White
Power supply Battery Operated - 2x C Size
Powerful LED light source
Magnifier length 219mm (8.62


Product 5 of 9
System Vario Plus Illuminated LED Magnifier 35mm (7x)


HMI-no.
Article-no.
E155174

Registration date
31-07-2009
Last updated
21-11-2023

Properties
Bar magnifier
No
Replaceable lens
Yes
With light
Yes
Battery-powered
Yes
Mains supply
No

Measures
Magnification
7
X
Optical strength
28
D

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Magnification 7x
Dioptre 28D
Lens size (Diameter) 35mm/1.4 inches
Lens shape & design Round aspheric PXM plastic lens
Light colour/temperature White
Power supply Battery Operated - 2x C Size
Powerful LED light source
Magnifier length 221mm (8.7 inc


Product 6 of 9
System Vario Plus Illuminated LED Magnifier 50mm (6x)


HMI-no.
Article-no.
E155274

Registration date
31-07-2009
Last updated
21-11-2023

Properties
Bar magnifier
No
Replaceable lens
Yes
With light
Yes
Battery-powered
Yes
Mains supply
No

Measures
Magnification
6
X
Optical strength
24
D

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Powerful LED light source
Magnifier length 227mm (8.94 inches)
Magnification 6x
Dioptre 23D
Lens size (Diameter) 50mm/2 inches
Lens shape & design Round aspheric PXM plastic lens
Light colour/temperature White
Power supply Battery Operated - 2x C S


Product 7 of 9
System Vario Plus Illuminated LED Magnifier 58mm (5x)


HMI-no.
Article-no.
E155394

Registration date
31-07-2009
Last updated
21-11-2023

Properties
Bar magnifier
No
Replaceable lens
Yes
With light
Yes
Battery-powered
Yes
Mains supply
No

Measures
Magnification
5
X
Optical strength
20
D

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Magnification 5x
Dioptre 20D
Lens size (Diameter) 58mm/2.3 inches
Lens shape & design Round aspheric PXM plastic lens
Light colour/temperature White
Power supply Battery Operated - 2x C Size
Powerful LED light source
Magnifier length 235mm (9.25 in


Product 8 of 9
System Vario Plus Illuminated LED Magnifier 70mm (4x)


HMI-no.
42159
Article-no.
E155494

Registration date
31-07-2009
Last updated
21-11-2023

Properties
Bar magnifier
No
Replaceable lens
Yes
With light
Yes
Battery-powered
Yes
Mains supply
No

Measures
Magnification
4
X
Optical strength
16
D

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
- Lens diameter: 70 mm
- Magnification: 16,0 dpt / 4x
- Colour: white

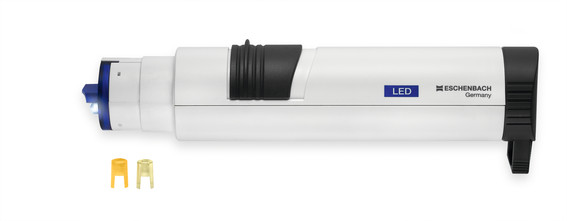

- Battery handle, LED
- Comfortable battery handle with innovative LED illumination
- Holds 2 batteries (baby type) or 2 rechargeable batteries
- Illumination: 2 high-contrast, whiteue


Product 9 of 9
System Vario Plus Illuminated LED Magnifier 80mm (3x)


HMI-no.
Article-no.
E155994

Registration date
31-07-2009
Last updated
21-11-2023

Properties
Bar magnifier
No
Replaceable lens
Yes
With light
Yes
Battery-powered
Yes
Mains supply
No

Measures
Magnification
3
X
Optical strength
12
D

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
