HEWI Support rail - 300 mm (801-seris)
Classification
18 18 06 03 - Handgrips, fixed, straight
Documents
User manualThe product series contains 1 product.
Product 1 of 1
HEWI Support rail - 300 mm (801 series)
HMI-no.
69766
Article-no.
801.36.100
Registration date
02-12-2011
Last updated
21-11-2023
Measures
Load, max
150
kg
Length
30
cm
The length is the distance between the two mounting points.
Depth
8.80
cm
The depth is the distance from the wall to the inside of the hand grip.
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications

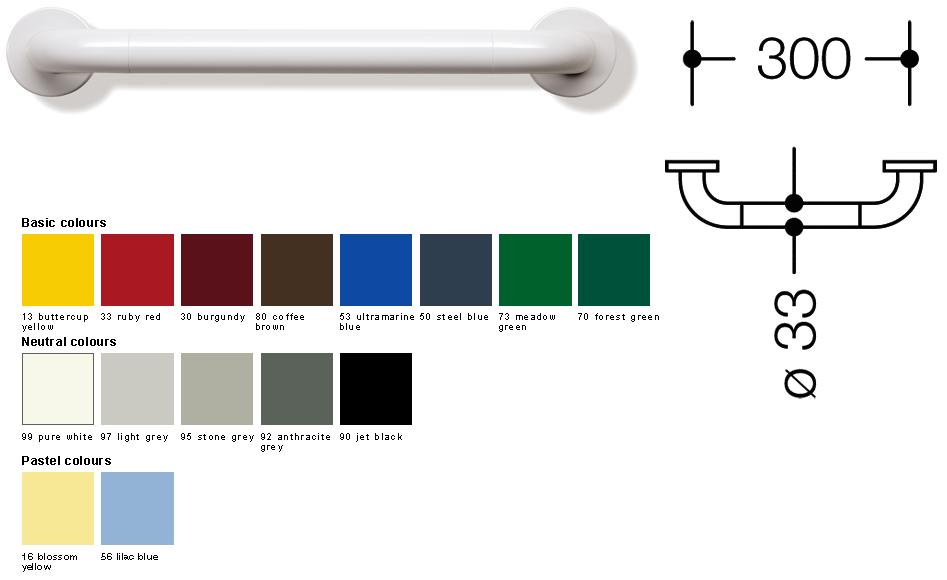

Support rail with right-angled bends at the ends and steel fixing roses.
With continuous, corrosion resistant steel core.
For wall mounting with special HEWI fixing materials and roses.
Rail diameter 33 mm, rose diameter 70 mm.
Made of high-quality polyamide according to HEWI colour chart.
With continuous, corrosion resistant steel core.
For wall mounting with special HEWI fixing materials and roses.
Rail diameter 33 mm, rose diameter 70 mm.
Made of high-quality polyamide according to HEWI colour chart.
