HEWI Support rail - 300 mm (950-seris)
Classification
18 18 06 03 - Handgrips, fixed, straight
Documents
User manualThe product series contains 1 product.
Product 1 of 1
HEWI Support rail - 300 mm (950 series)
HMI-no.
69944
Article-no.
950.36.10090
Registration date
16-12-2011
Last updated
21-11-2023
Measures
Load, max
150
kg
Length
30
cm
The length is the distance between the two mounting points.
Depth
9
cm
The depth is the distance from the wall to the inside of the hand grip.
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications

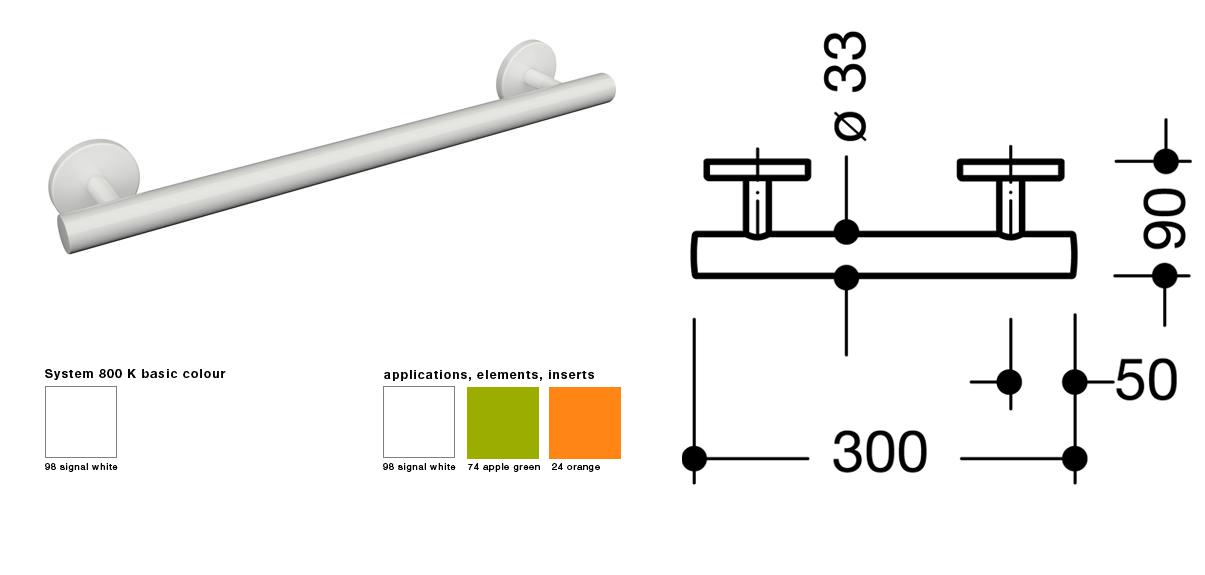

Straight rail with supports straight to the wall and roses.
Made of high-quality polyamide in HEWI colours 98 (signal white) or 99 (pure white).
With continuous, corrosion resistant steel core.
Diameter of rail 33 mm, 90 mm deep.
Rose diameter 80 mm, cap height 13 mm.
Made of high-quality stainless steel.
Made of high-quality polyamide in HEWI colours 98 (signal white) or 99 (pure white).
With continuous, corrosion resistant steel core.
Diameter of rail 33 mm, 90 mm deep.
Rose diameter 80 mm, cap height 13 mm.
Made of high-quality stainless steel.
