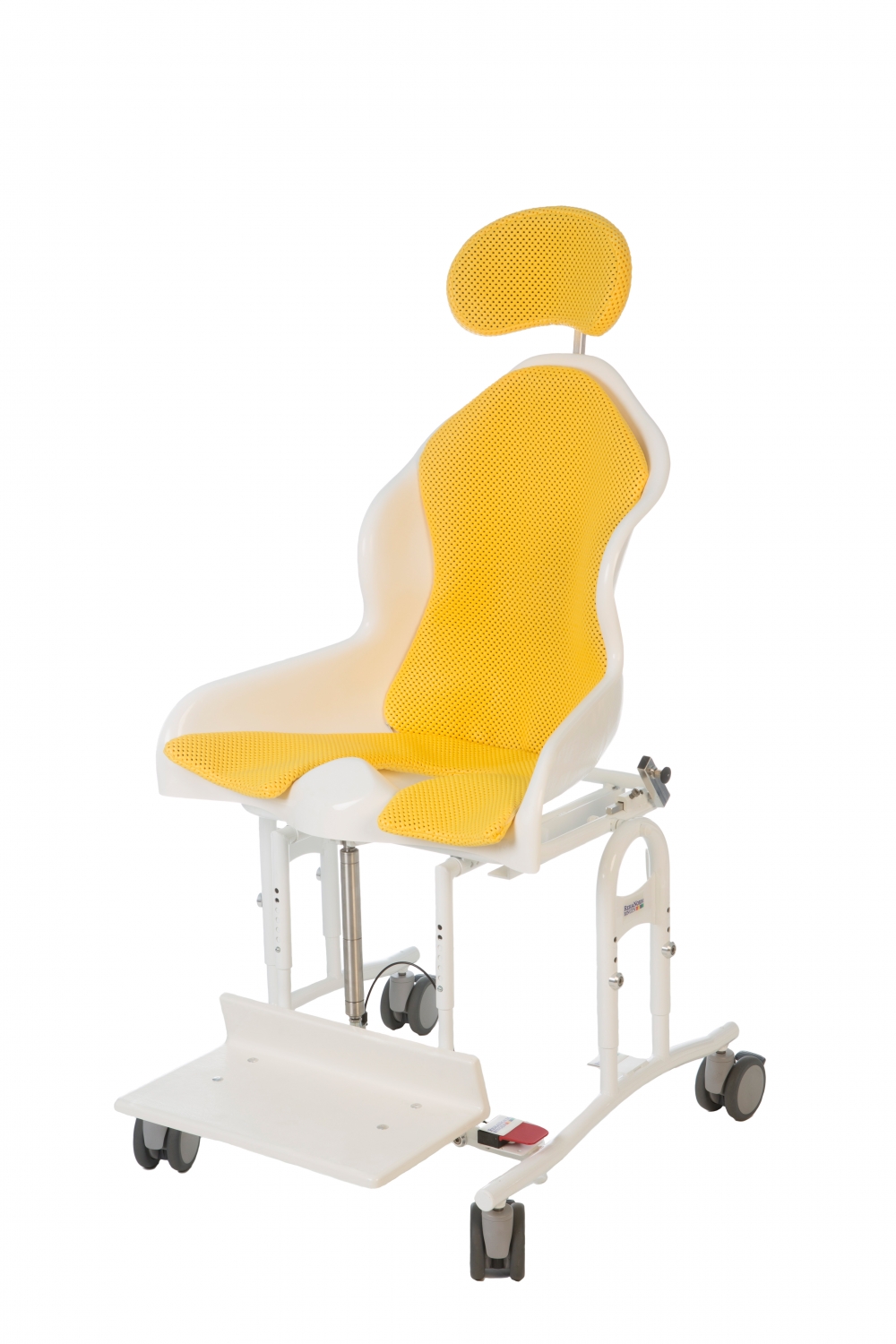

Bath/toilet chair MTS
Classification
09 12 03 10 - Commode shower chairs with wheels and tilt, no electrical functions
The product series contains 6 products.
The product series also includes a discontinued product. Include discontinued products.
Specifications summarized
Specifications for the 6 products in the product series. Click a HMI-no. to see all details for a single product.| Product 1 - 6 | ||||||
|---|---|---|---|---|---|---|
| Specification/HMI-no. | 73360 | 73463 | 73464 | 73465 | 73466 | 73467 |
| Height adjustable | Manuelt | Manuelt | Manuelt | Manuelt | Manuelt | Manuelt |
| Tension adjustable back rest upholstery | No | No | No | No | No | No |
| Can be used with standard wall-mounted toilets (without extension) | Yes | Yes | Yes | Yes | Yes | Yes |
Intended for children  Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment. | Yes | Yes | Yes | Yes | Yes | Yes |
| Possibility to change position of armrest to allow sideways transfer | No | No | No | No | No | No |
| Head support | Yes | Yes | Yes | Yes | Yes | Yes |
| Fold-up foot supports | No | No | No | No | No | No |
| Height adjustable legrests | Yes | Yes | Yes | Yes | Yes | Yes |
| Elevating legrests | Yes | Yes | Yes | Yes | Yes | Yes |
| Legrest position may be changed to facililtate hygiene and transfer | No | No | No | No | No | No |
| User weight, max (kg) | 90 | 90 | 90 | 90 | 90 | 90 |
| Total width (cm) | 43 | 48 | 53 | 58 | 63 | 63 |
| Ground clearance (cm) Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle. | 45 | 45 | 45 | 45 | 45 | 45 |
| Width between arm supports (cm) Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position. | 45 | 50 | 55 | 60 | 65 | 65 |
| Seat depth (cm) If the seat depth is adjustable, this is the maximum seat depth | 24 | 30 | 36 | 38 | 40 | 52 |
| Seat height, min (cm) | 48 | 48 | 48 | 48 | 48 | 48 |
| Seat height, max (cm) | 55 | 55 | 55 | 55 | 55 | 55 |
| Tilt-in-space forward (°) Measured from the horizontal position. | 0 | 0 | 0 | 0 | 0 | 0 |
| Tilt-in-space back (°) Measured from the horizontal position. | 35 | 35 | 35 | 35 | 35 | 35 |
| Number of wheels with brake | 4 | 4 | 4 | 4 | 4 | 4 |
| Wheel diameter (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| Height of push handles/push bar, min. (cm) Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor. | 80 | 87 | 98 | 100 | 100 | 115 |
| Height of push handles/push bar, max. (cm) Measured from the floor to the upper surface of the heigher grip with the chair in the highest position | 80 | 87 | 98 | 100 | 100 | 115 |
