Mobile Flex/4-post sytem/3000x3000 travers/w. Luna ceiling hoist

Mobile Flex/4-post sytem/3000x3000 travers/w. Luna ceiling hoist

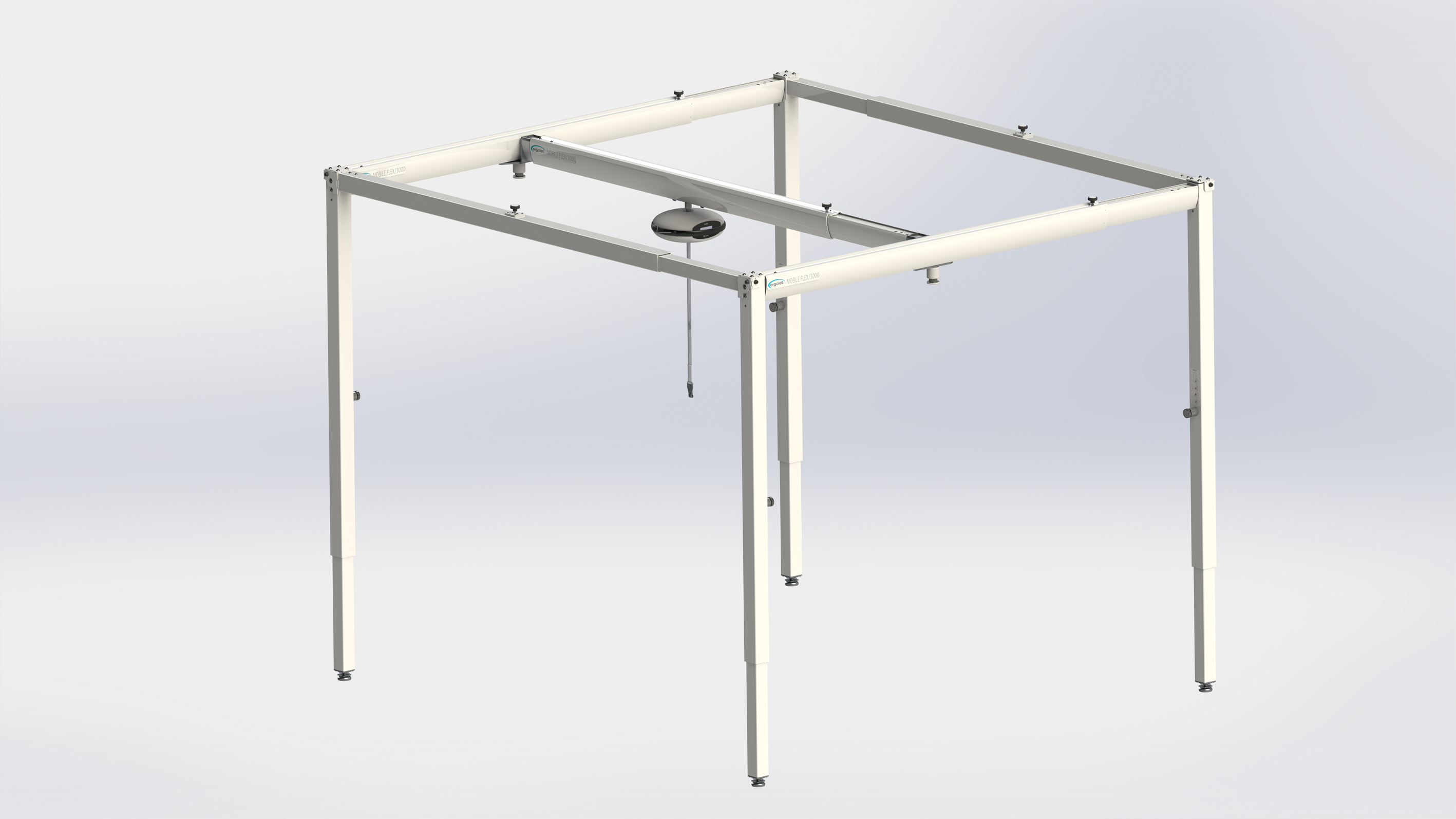

Mobile Flex, 4-post system is a free standing system, that with a Luna ceiling hoist is ideal for use as a room covering hoist. The system is easy to set up and can therefore also be used for a temporary solution.
Mobile Flex, 4-post system is modular and can be composed of several model variants needed.

Classification
12 36 18 03 - Stationary free-standing hoists

Documents
Brochure
User manual


The product series contains 1 product.

Product 1 of 1
Mobile Flex/4-post sytem/3000x3000 travers/w. Luna ceiling hoist


HMI-no.
83805
Article-no.
016-01220

Registration date
27-03-2014
Last updated
14-08-2025

Properties
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Room covering rail system
No
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes

Measures
User weight, max
275
kg
Max lifting velocity, loaded
0.044
m/s
Max length of rail
316
cm
Min. length of rail
216
cm
Max height to top of rail
254
cm
Min. height to top of rail
189
cm
Min. distance from top of rail to central suspension point
55.2
cm
Weight of lifting machinery
6.7
kg
Ingress protection class for water
4
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Maintenance frequency
12
måneder

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
