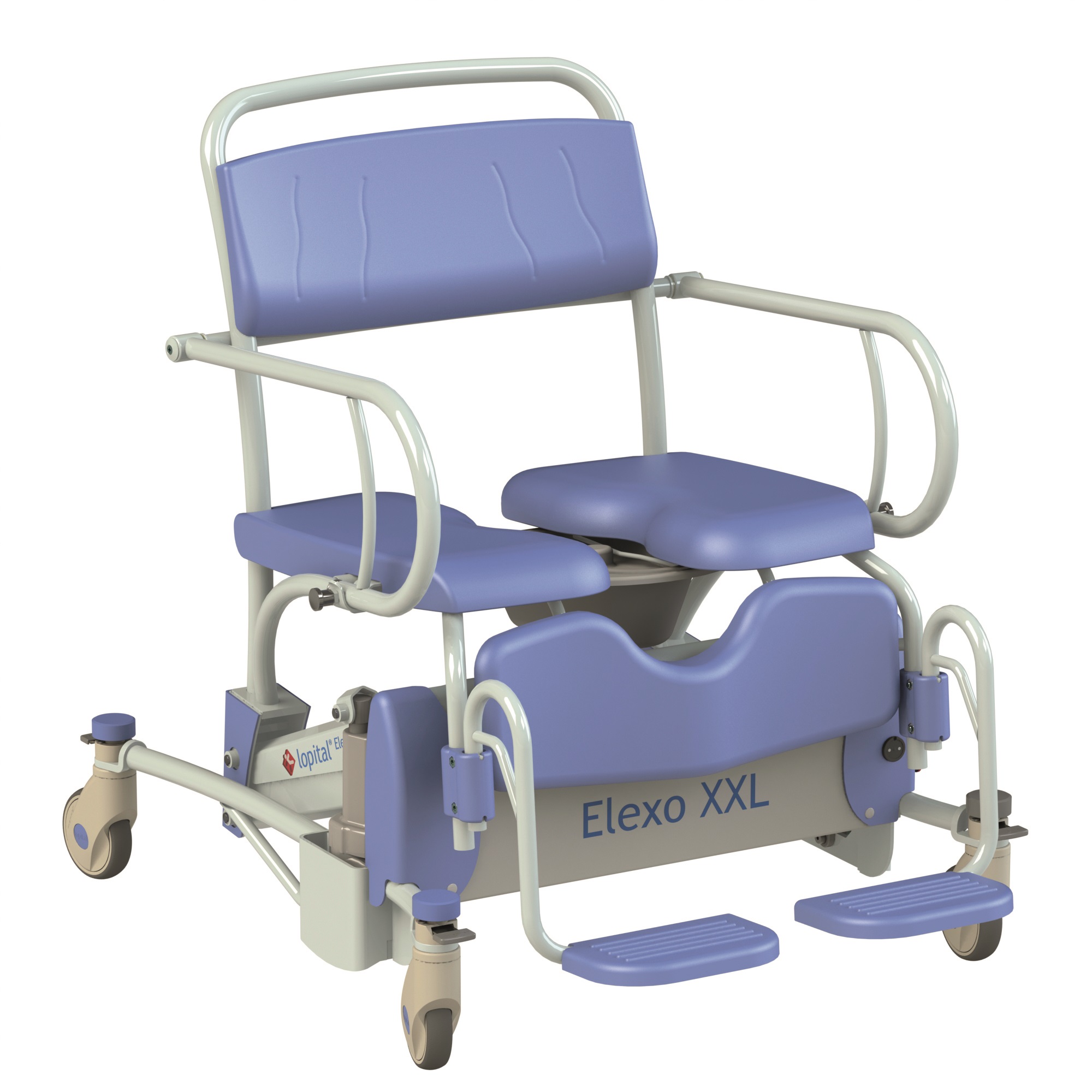

Elexo shower chair XXL

This product series and all belonging products have been discontinued by A.P. Botved A/S since 10-06-2025


The Elexo shower and toilet chair ensures a proper working height without twisting or bending the back. The user sits comfortably in the chair during showers, toilet visits, and activities such as foot care. The height is adjusted electrically from 50 cm to 105 cm, and the seat tilts up to 17 degrees in the highest position.

Classification
09 12 03 11 - Commode shower chairs with wheels, tilt and electrical functions

Documents
Brochure
User manual

Video
Play video


The product series includes 1 discontinued product.

Product 1 of 1
Elexo showerchair XXL

The product was discontinued from A.P. Botved A/S 10-06-2025


HMI-no.
89394
Article-no.
1092-51005300

Registration date
09-11-2015
Last updated
14-11-2025

Properties
Height adjustable
Elektrisk
Tension adjustable back rest upholstery
No
Can be used with standard wall-mounted toilets (without extension)
Yes
Possibility to change position of armrest to allow sideways transfer
Yes
Powered tilt
Yes
Tilt-in-space dissociated from the height adjustment
No
The function of the tilt-in-space is separated from the hydraulic or electrical function of the height adjustment.
Head support
No
Battery chargeable separated from the product
No
Emergency stopping function
Yes
Fold-up foot supports
Yes
Height adjustable legrests
No
Elevating legrests
No
Legrest position may be changed to facililtate hygiene and transfer
Yes

Measures
User weight, max
220
kg
Total width
87.7
cm
Ground clearance
45
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
70.3
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
60
cm
If the seat depth is adjustable, this is the maximum seat depth
Wheel diameter
125
mm
Number of wheels with brake
4
Seat height, min
50
cm
Seat height, max
110
cm
Tilt-in-space back
17
°
Measured from the horizontal position.
Height of push handles/push bar, min.
104.1
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
144
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position
Ingress protection class for water
4
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
