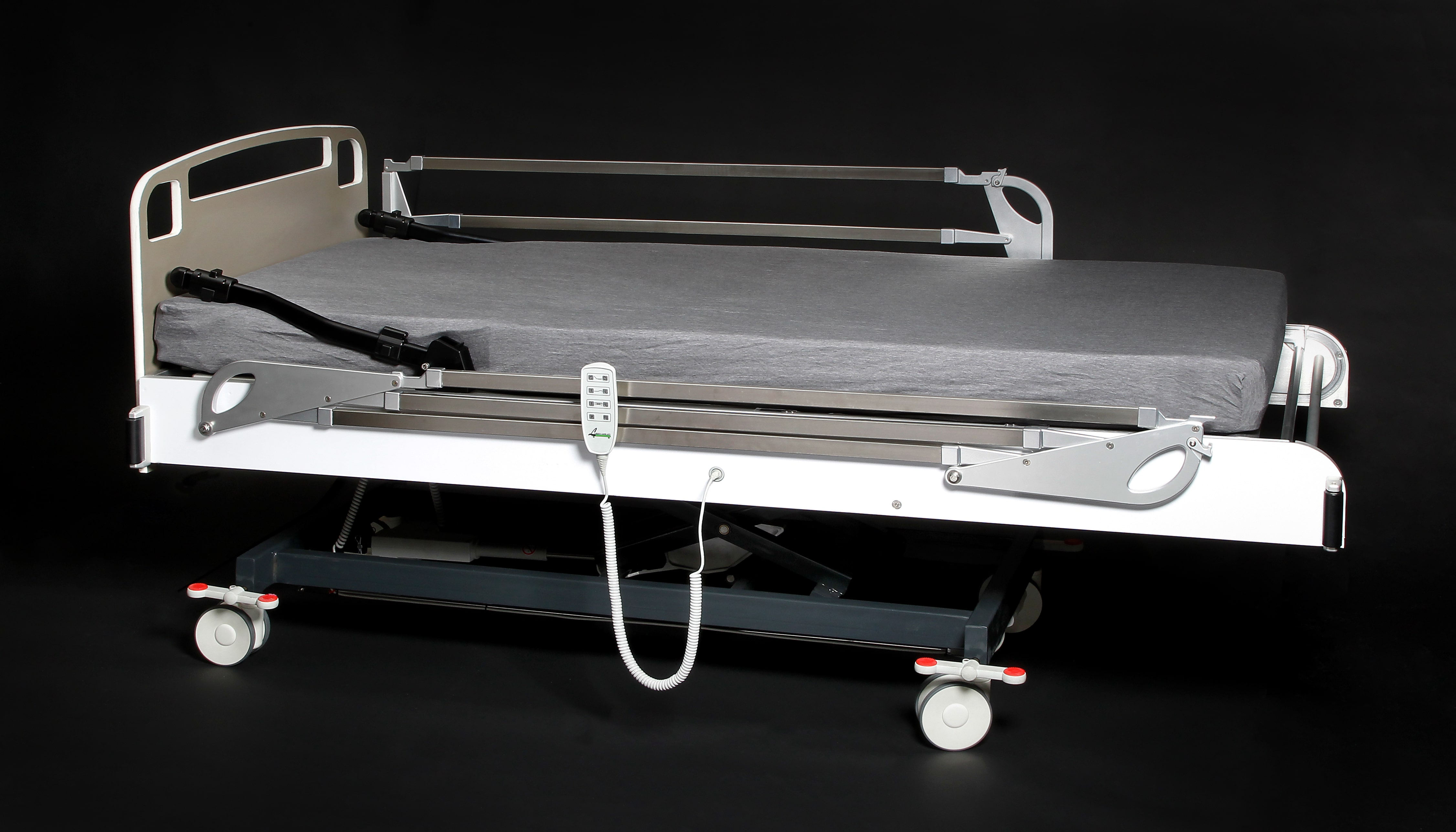

LibertyCare



Welfare Tech bed for people with reduced mobility.

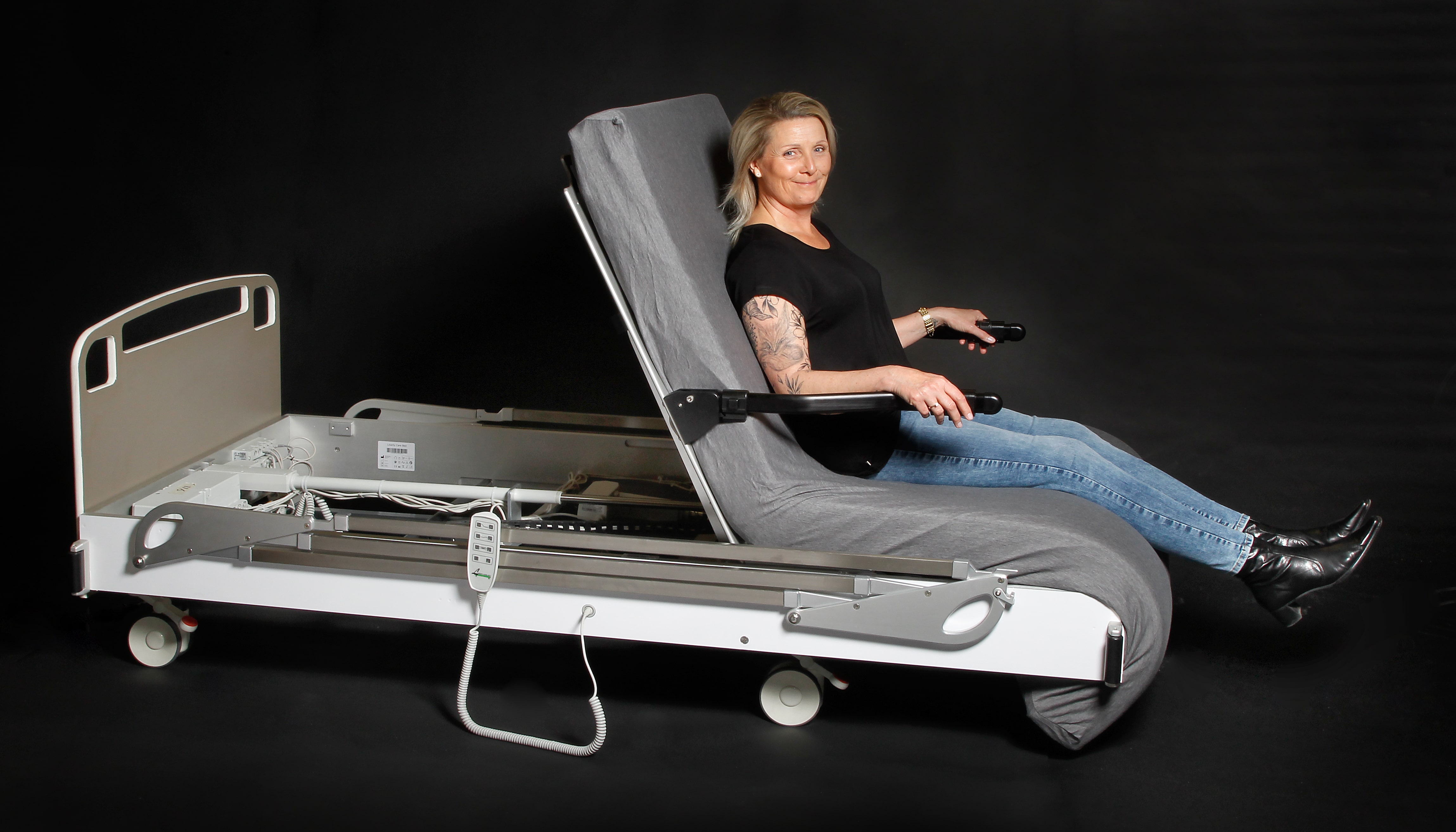

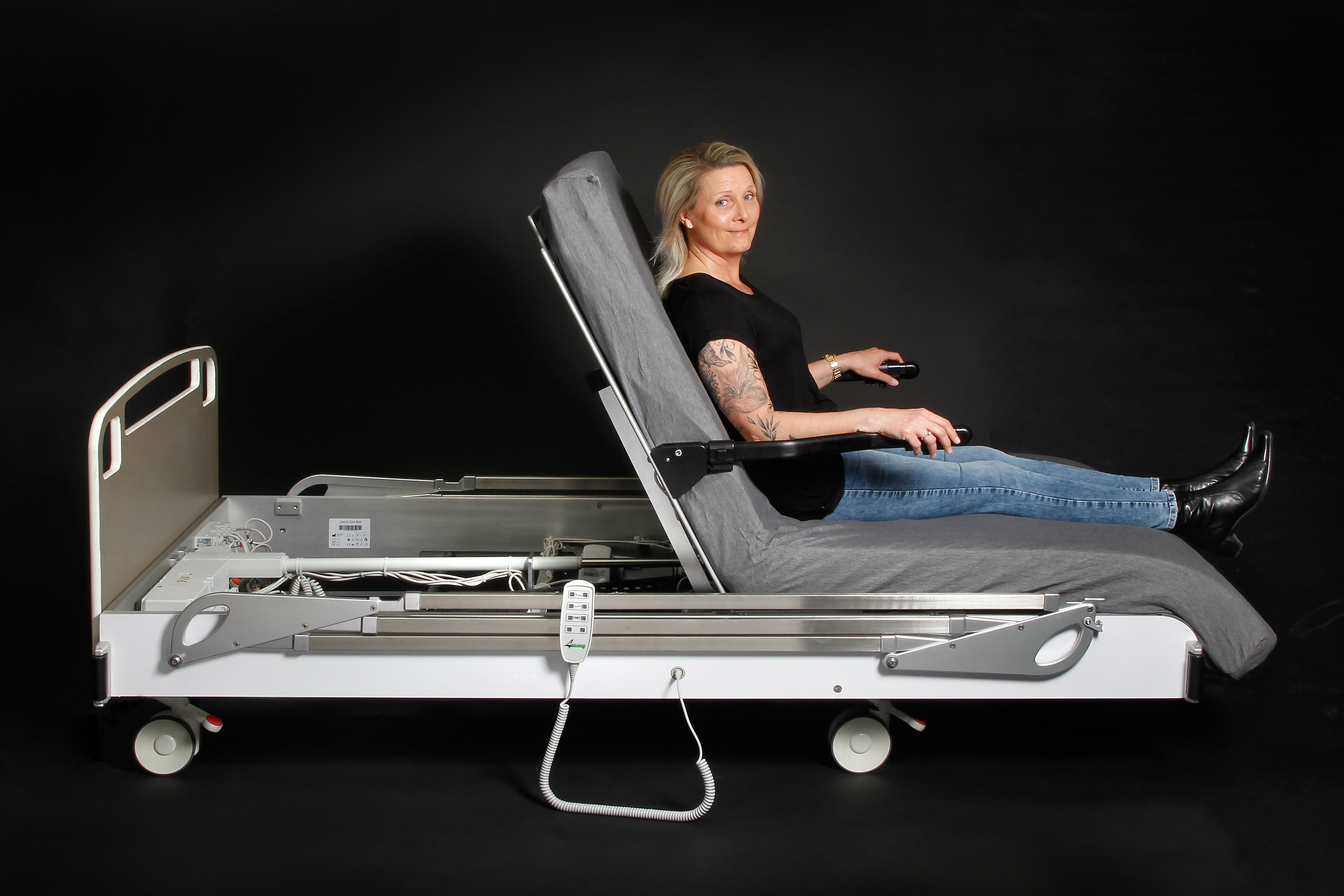

Alighting of bed foot.
Low alighting height.
Can be operated via armrest or remote control.
Make the user more self-reliant and care for the carer.

Classification
18 12 10 38 - Beds with ingress and egress function

Documents
Brochure
QuickGuide

Video
Play video


The product series contains 1 product.

Product 1 of 1
Liberty Bed model 1, incl mattress,remote,beds end


HMI-no.
89430
Article-no.
LIB01100

Registration date
12-11-2015
Last updated
14-11-2025

Properties
Number of sections of mattress support platform, transversely
4

Properties
Adjustment of the height of mattress support platform
Elektrisk
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
Yes
Intended for use in nursing institutions
Yes
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
Yes
Back rest section, electrical adjustment
Yes
Leg section, electrical adjustment
Yes
Upper leg section, electrical adjustment
Yes
Separate adjustment of back rest
Yes
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
No
Indicates whether back rest and knee bending can be adjusted with one control button
Egress from the side of the bed
No
E.g. by way of rotation of the mattress support platform
Egress via the foot end
Yes
Electrically operated egress function
Yes
Removable bed-rails
Yes
Removable self-lifting rail
Yes
Removable foot board
No
Removable head board
Yes
Heigh cot sides
Yes
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No

Measures
Outside measure length
210
cm
Measured without any bed extension
Outside measure width
95
cm
Measured including non-detachable accessories
Mattress size, length
200
cm
Mattress size, width
90
cm
Load, max
250
kg
Maximum external load on the product that is permitted in normal use
User weight, max
250
kg
Weight of heaviest main part
62
kg
Weight of heaviest part when disassembled without the use of tools.
Ingress protection class for water
6
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Mattress support platform, height above floor, min
42
cm
Measured without mattress
Mattress support platform, height above floor, max
92
cm
Measured without mattress
Under bed clearance
15
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.
Wheel diameter
15
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
