ZINGER CHAIR




Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)

Documents
User manual


The product series contains 1 product.

Product 1 of 1

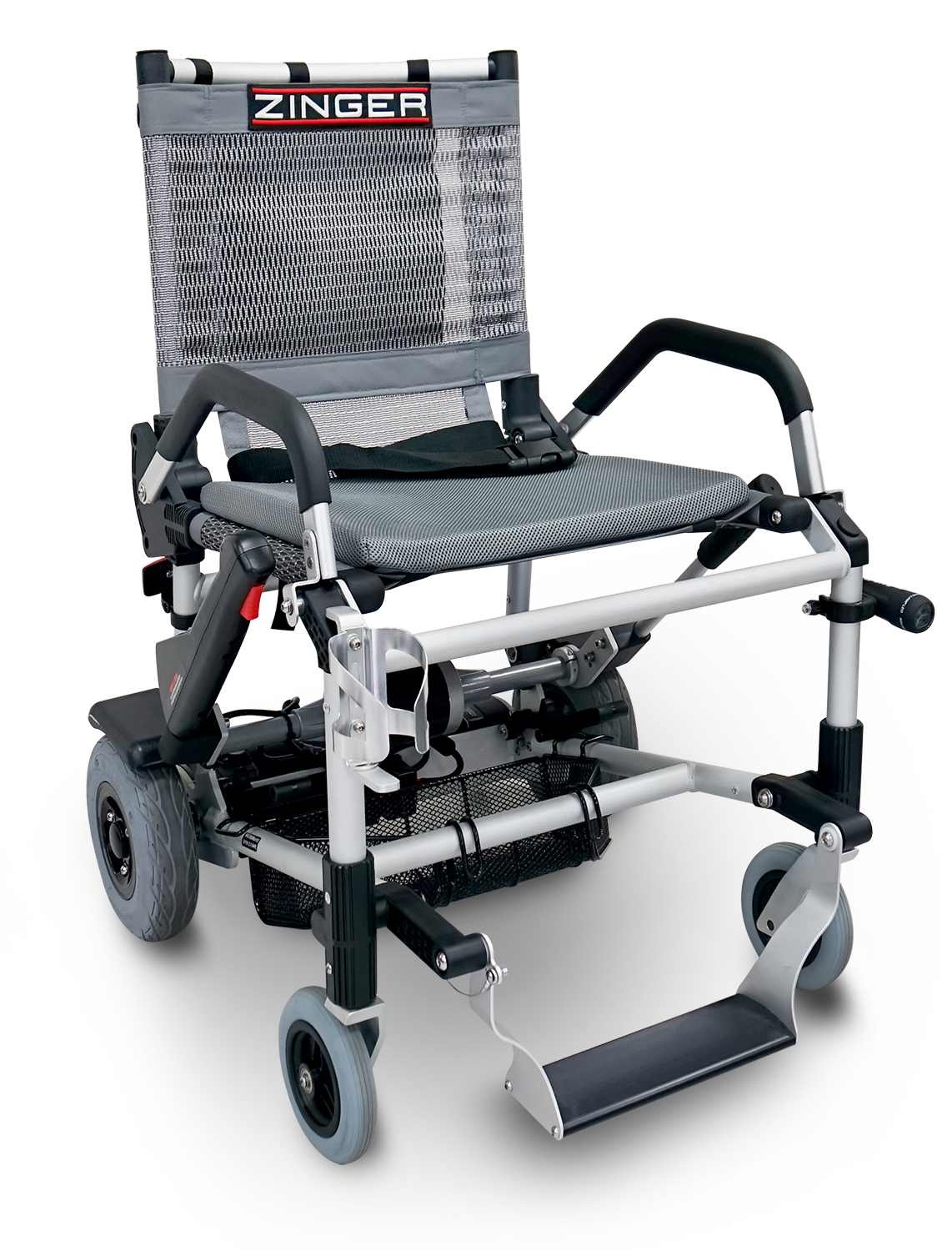

ZINGERCHAIR


HMI-no.
101559
Article-no.
91001

Registration date
03-05-2016
Last updated
11-09-2025

Properties
Programmable
Yes
Elevating seat
No
Powered recline
No
Powered tilt
No
Powered legrests
No
Optional motorized attendant control
Yes
Suspension
No
Front-wheel-driven
No
Mid-wheel-driven
No
Rear-wheel-driven
Yes
Can be used as seat in a car
No

Measures
User weight, max
120
kg

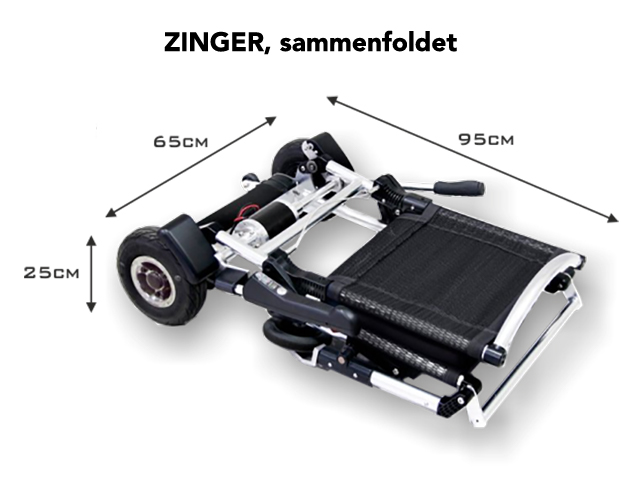

External width
65
cm
Measured where widest
External length
74
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
18.5
kg
Speed, max
9.5
km/t
Driving distance range, fully charged
25
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
49.5
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
49.5
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
0
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
0
°
Measured from the horizontal position.
Ground clearance
5
cm
Slope, max
8
°
Climbs obstacles of max
15
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
