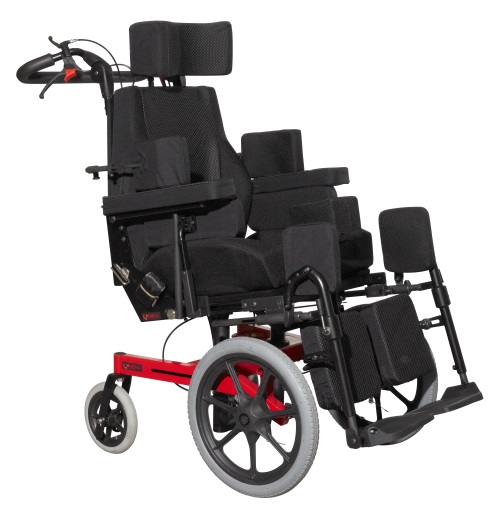

Manuel Electric Comfort Chairs front wheel drive with 2 power function

Manuel Electric Comfort Chairs front wheel drive with 2 power function
Manual Electric Comfor Chair, Front wheel drive. F-ME2 with electric tilt and recline, Swingaway legrests, Manual elevation. Wheels in size 12, 16, 20 and 24 inches with Flexel.

Classification
12 22 18 04 - Manual comfort push wheelchairs with tilt-in-space



The product series contains 4 products.

» All product details

Specifications summarized

Specifications for the 4 products in the product series. Click a HMI-no. to see all details for a single product.

Product 1 - 4
Specification/HMI-no.102753102754102630102624
Adjustable seat widthYesYesYesYes
Adjustable seat depth YesYesYesYes
Height adjustable back restYesYesYesYes
Front-wheel-drivenYesYesYesYes
Can be subsequently equipped with propulsion unitYesYesYesYes
Can be mounted on a stair climberYesYesYesYes
Intended for fastening in a carYesYesYesYes
Can be supplied with electrically operated tilt-in-spaceYesYesYesYes
Can be supplied with electrically operated back-rest reclineYesYesYesYes
Head supportYesYesYesYes
Can be supplied with central legrestYesYesYesYes
Balance point adjustableYesYesYesYes
Adjustable push handlesYesYesYesYes
Wheels with handrimsNoNoNoNo
Transit wheelsYesYesYesYes
FoldableNoNoNoNo
Seat width, min (cm)32324252
Seat width, max (cm)40405060
Seat depth, min (cm)38304449
Seat depth, max (cm)45385156
Seat height, min (cm)41414141
Seat height, max (cm)59595959
Back rest height, min. (cm)40404040
Back rest height, max (cm)65656565
Total width (cm)
The narrowest possible configuration.
60606060
Total length (cm)86828686
Weight (kg)
The stated weight of the wheelchair is incl. wheels and leg supports.
49494949
User weight, max (kg)160160160160
Tilt-in-space forward (°)
Measured from the horizontal position.
18181818
Tilt-in-space back (°)
Measured from the horizontal position.
45454545
Back rest recline, max (°)
Recline of back rest from an upright position.
165165165165
