Vilhelm Hertz crutch



We develop, design and hand build custom made crutches. They are fabricated, depending on model, from oak wood, aluminum, steel and carbon fiber. Besides the beautiful design, the crutches are designed with an elastic element this feature feels very comfortable to the user. The crutches are non-height adjustable they are built for the individual.

Classification
12 03 06 08 - Elbow crutches without height adjustment

Documents
User manual


The product series contains 4 products.

» Summarize specifications

Product 1 of 4
Bamboo


HMI-no.
107025

Registration date
16-11-2017
Last updated
24-09-2024

Properties
Anatomic handgrip
No
Handgrip can be rotated
No
Foldable
No
With light-reflecting material
No
Reflectors that glow in the dark when light is cast upon them. Visible from all directions.
Closed and hinged cuff
No
White support walking stick
No

Measures
Weight
773
g
User weight, max
130
kg
Handgrip height
105
cm
Measured from the floor to the upper point of the handgrip where it is fastened to the leg
Elbow support, length, min
14
cm
Minimum length of arm section, measured along the arm section from the upper point of the handgrip, where it is fastened to the leg, to the upper point of the cuff
Elbow support, length, max
24
cm
Maximum length of arm section, measured along the arm section from the upper point of the handgrip, where it is fastened to the leg, to the upper point of the cuff

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking

Other specifications
The crutch stick is beige bamboo. The fitting is untreated steel, which in time develops a beautiful surface that is kept free of rust by daily use. The handle is hand-turned beech wood and the arm support is hand-sewn full grain leather. The beech wood and bamboo are treated with linseed oil and the arm support is cared for with neats-foot oil.


Product 2 of 4
Mumi


HMI-no.
106962

Registration date
14-11-2017
Last updated
24-09-2024

Properties
Anatomic handgrip
No
Handgrip can be rotated
No
Foldable
No
With light-reflecting material
No
Reflectors that glow in the dark when light is cast upon them. Visible from all directions.
Closed and hinged cuff
No
White support walking stick
No

Measures
Weight
699
g
User weight, max
130
kg
Handgrip height
105
cm
Measured from the floor to the upper point of the handgrip where it is fastened to the leg
Elbow support, length, min
14
cm
Minimum length of arm section, measured along the arm section from the upper point of the handgrip, where it is fastened to the leg, to the upper point of the cuff
Elbow support, length, max
24
cm
Maximum length of arm section, measured along the arm section from the upper point of the handgrip, where it is fastened to the leg, to the upper point of the cuff

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking

Other specifications
Rod is made from either airplane grade aluminum or carbonfiber which has the particular quality of being elastic. The handle fitting is CNC milled aluminum. Molded oak strips for leather arm support. Handle is hand-turned oak. Treat wood with linseed oil and leather with neats-foot oil.
weight: 699g User weight 130kg/carbonfiber, 100kg/aluminium


Product 3 of 4
Poker


HMI-no.
107024

Registration date
16-11-2017
Last updated
24-09-2024

Properties
Anatomic handgrip
No
Handgrip can be rotated
No
Foldable
No
With light-reflecting material
No
Reflectors that glow in the dark when light is cast upon them. Visible from all directions.
Closed and hinged cuff
No
White support walking stick
No

Measures
Weight
734
g
User weight, max
130
kg
Handgrip height
105
cm
Measured from the floor to the upper point of the handgrip where it is fastened to the leg
Elbow support, length, min
14
cm
Minimum length of arm section, measured along the arm section from the upper point of the handgrip, where it is fastened to the leg, to the upper point of the cuff
Elbow support, length, max
24
cm
Maximum length of arm section, measured along the arm section from the upper point of the handgrip, where it is fastened to the leg, to the upper point of the cuff

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking

Other specifications
The rod itself is solid carbon fiber, which is chosen for its lightness, its elastic qualities and its enormous strength. The handle fitting is steel which has been black oxidized this gives a satin smooth surface. The armrest is hand-sewn full grain leather.
The wood is treated with linseed oil and the armrest are cared for with neats-foot oil.


Product 4 of 4
Split


HMI-no.
106945

Registration date
13-11-2017
Last updated
24-09-2024

Properties
Anatomic handgrip
No
Handgrip can be rotated
No
Foldable
No
With light-reflecting material
No
Reflectors that glow in the dark when light is cast upon them. Visible from all directions.
Closed and hinged cuff
No
White support walking stick
No

Measures
Weight
655
g
User weight, max
130
kg
Handgrip height
105
cm
Measured from the floor to the upper point of the handgrip where it is fastened to the leg
Elbow support, length, min
14
cm
Minimum length of arm section, measured along the arm section from the upper point of the handgrip, where it is fastened to the leg, to the upper point of the cuff
Elbow support, length, max
24
cm
Maximum length of arm section, measured along the arm section from the upper point of the handgrip, where it is fastened to the leg, to the upper point of the cuff

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking

Other specifications

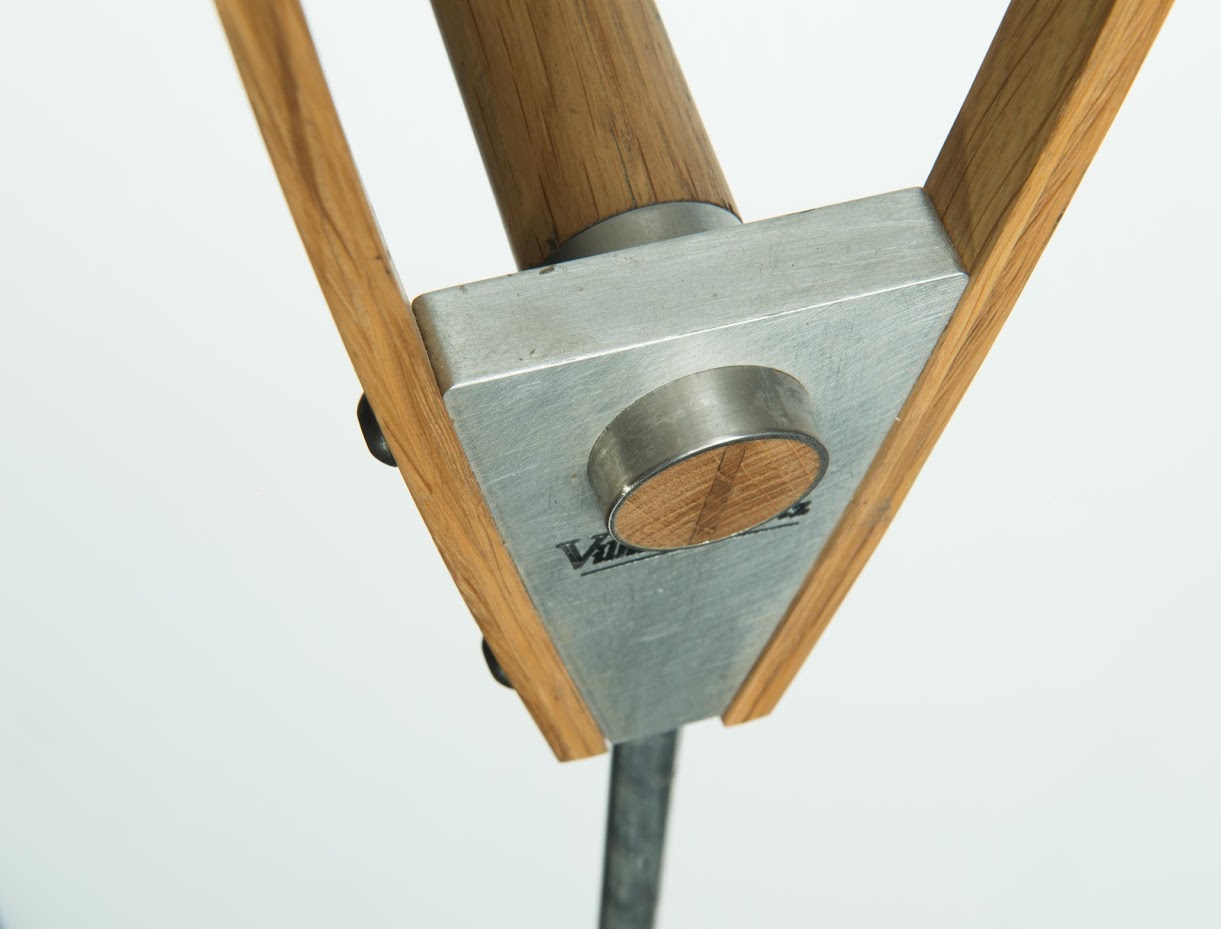

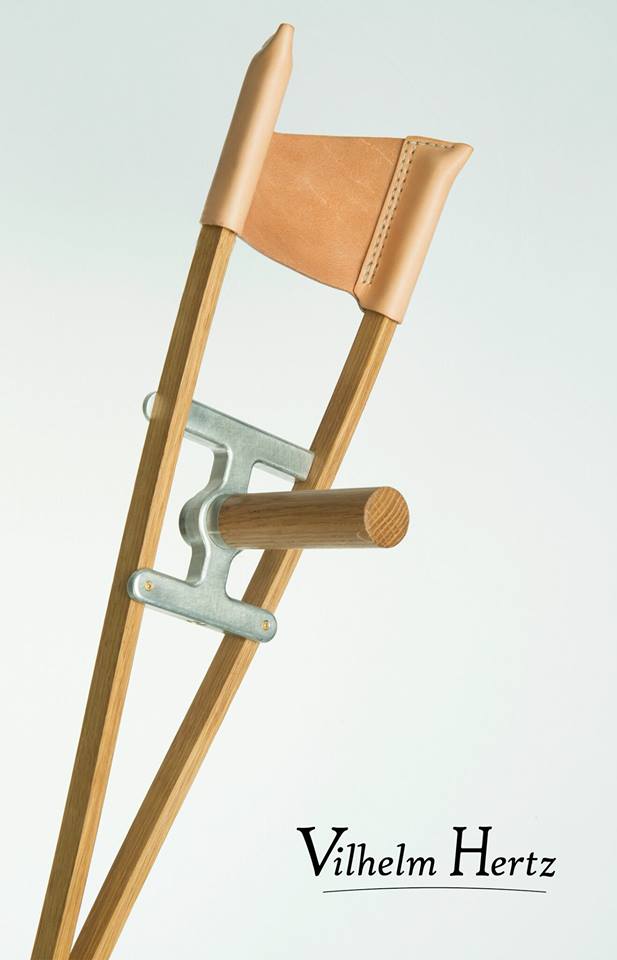

The crutch is made of molded oak wood, the fitting in CNC-milled recycled aluminum and hand-sewn, full grain leather on the armsupport. The handle is hand-turned oak. The wood is treated with linseed oil and the leather should be cared for with neats-foot oil.
Weight: 655g
User weight should not exeed 130kg.
