RotoBedFree

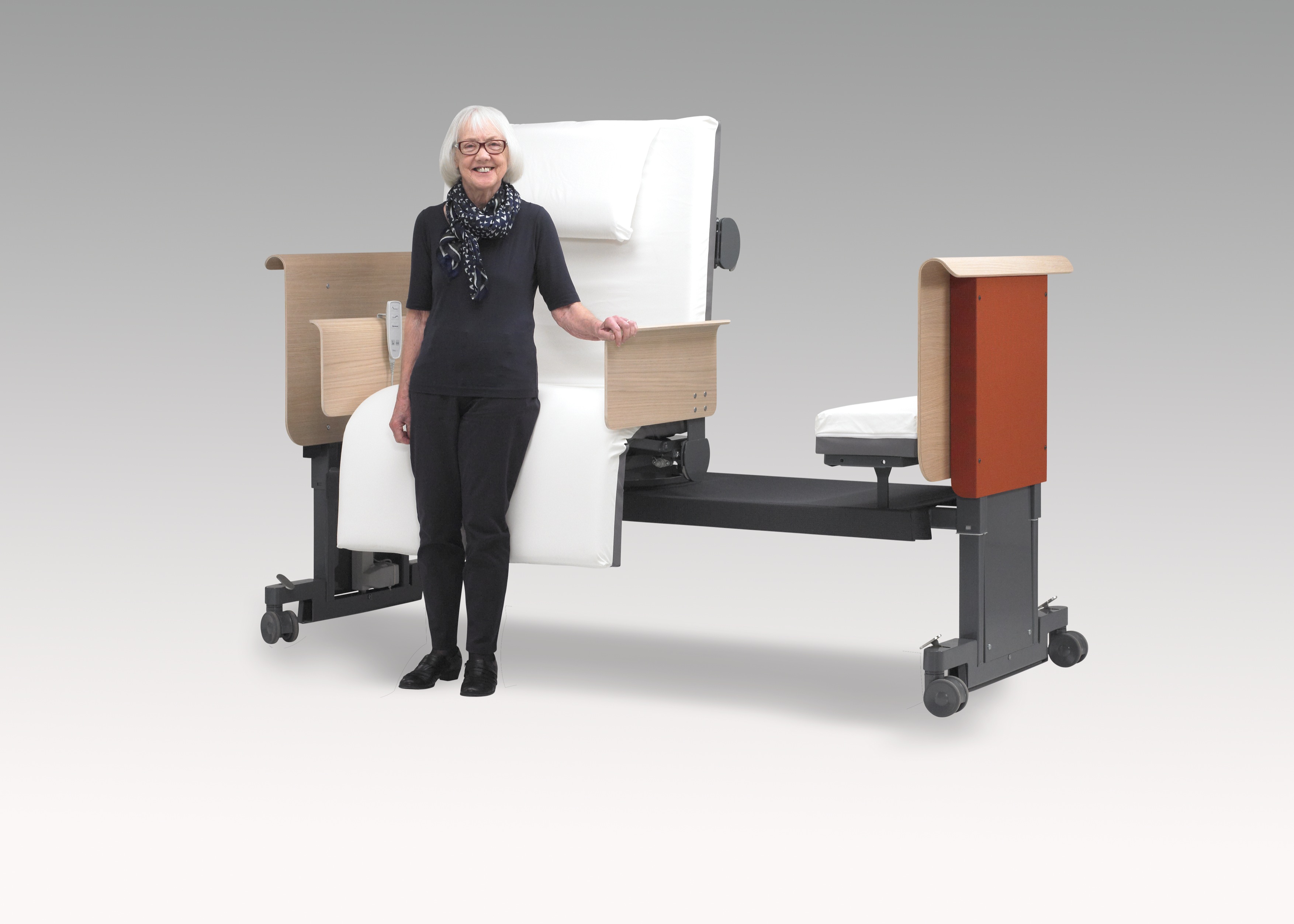

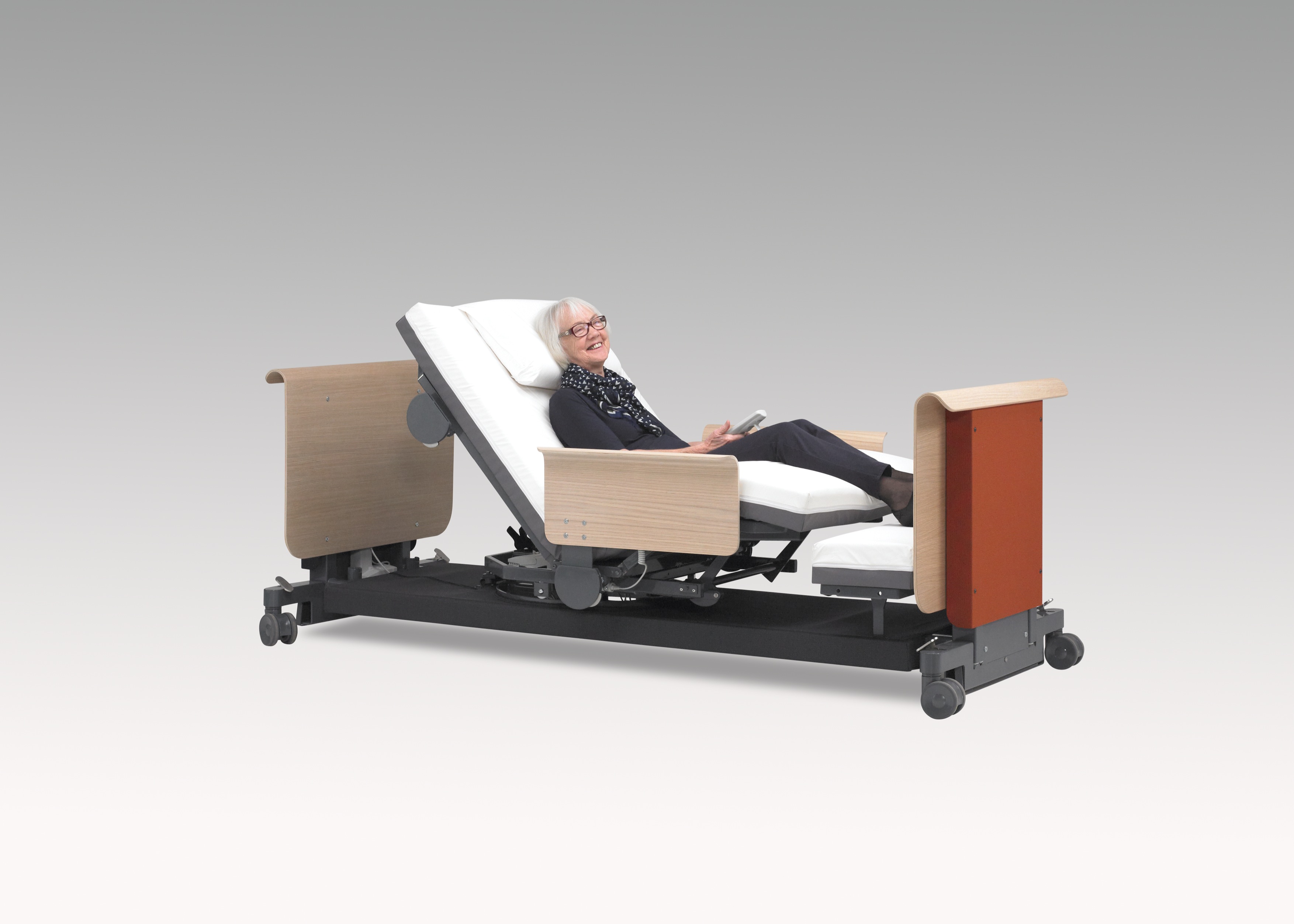

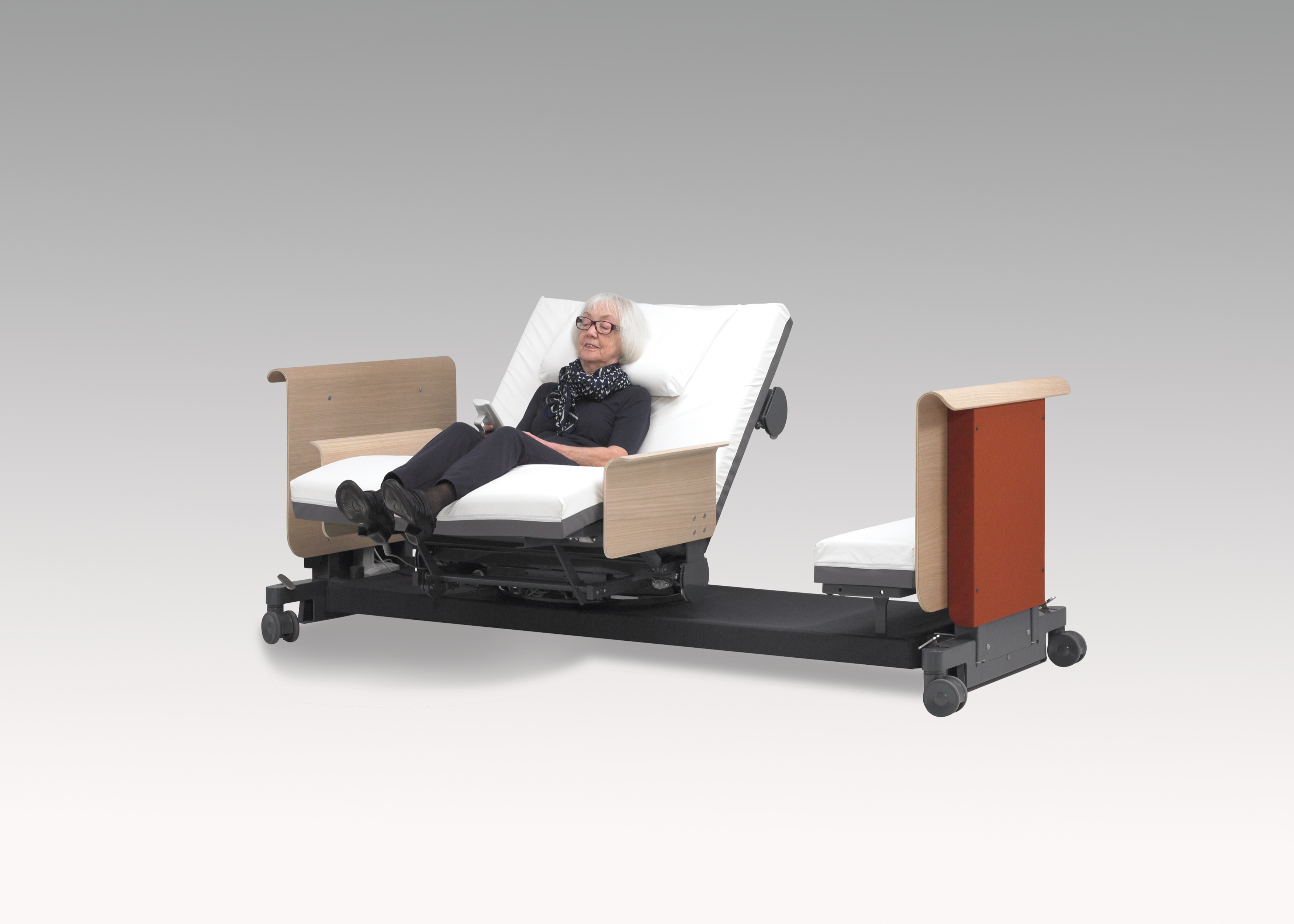

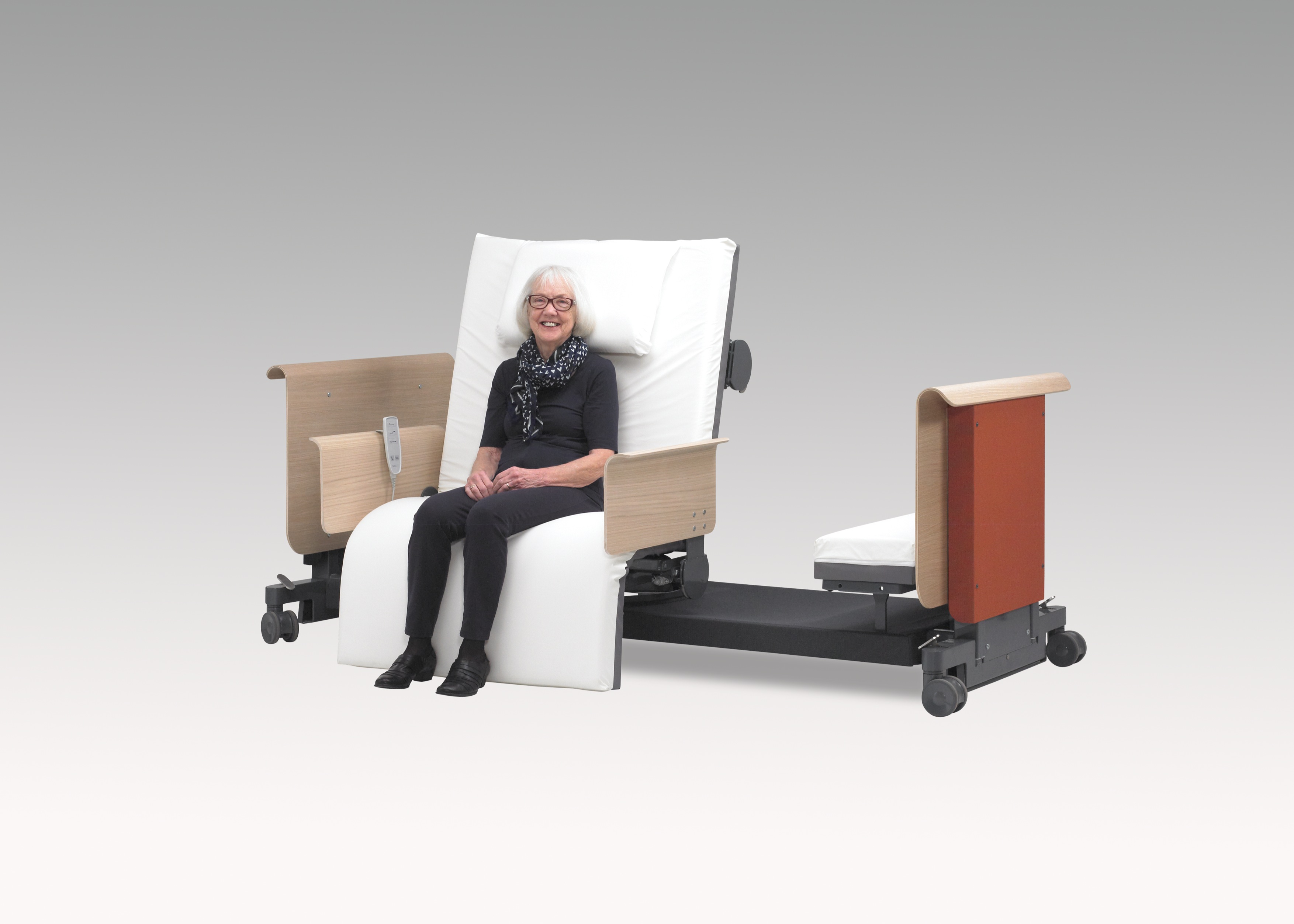

Become self-reliant. RotoBedFree makes the user more self-reliant and reduces the need for care. With the remote control, the bed can be moved to chair position and rotated for a an easy exit. This protects the users body from shear during transer. Increased mobility often delays the need for help further. Outstanding Danish design.

Classification
18 12 10 38 - Beds with ingress and egress function

Documents
Brochure
User manual
QuickGuide
Service manual


The product series contains 1 product.

Product 1 of 1
RotoBedFree


HMI-no.
108988
Article-no.
RBF-0001

Registration date
23-03-2018
Last updated
11-09-2025

Properties
Number of sections of mattress support platform, transversely
4

Properties
Adjustment of the height of mattress support platform
Elektrisk
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
Yes
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
Yes
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
Yes
Back rest section, electrical adjustment
Yes
Leg section, electrical adjustment
Yes
Upper leg section, electrical adjustment
Yes
Separate adjustment of back rest
Yes
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
Yes
Indicates whether back rest and knee bending can be adjusted with one control button
Egress from the side of the bed
Yes
E.g. by way of rotation of the mattress support platform
Egress via the foot end
No
Electrically operated egress function
Yes
Removable bed-rails
Yes
Removable self-lifting rail
Yes
Removable foot board
No
Removable head board
No
Heigh cot sides
No
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No

Measures
Outside measure length
228
cm
Measured without any bed extension
Outside measure width
96
cm
Measured including non-detachable accessories
Mattress size, length
205
cm
Mattress size, width
85
cm
Load, max
225
kg
Maximum external load on the product that is permitted in normal use
User weight, max
190
kg
Weight of heaviest main part
58
kg
Weight of heaviest part when disassembled without the use of tools.
Ingress protection class for water
6
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Mattress support platform, height above floor, min
32
cm
Measured without mattress
Mattress support platform, height above floor, max
82
cm
Measured without mattress
Under bed clearance
15
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.
Wheel diameter
10
cm

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: Teknologisk Institut. Test date: 18-09-2017 Test report for HMI-no. 108988

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 108988
