PDG Elevation

PDG Elevation

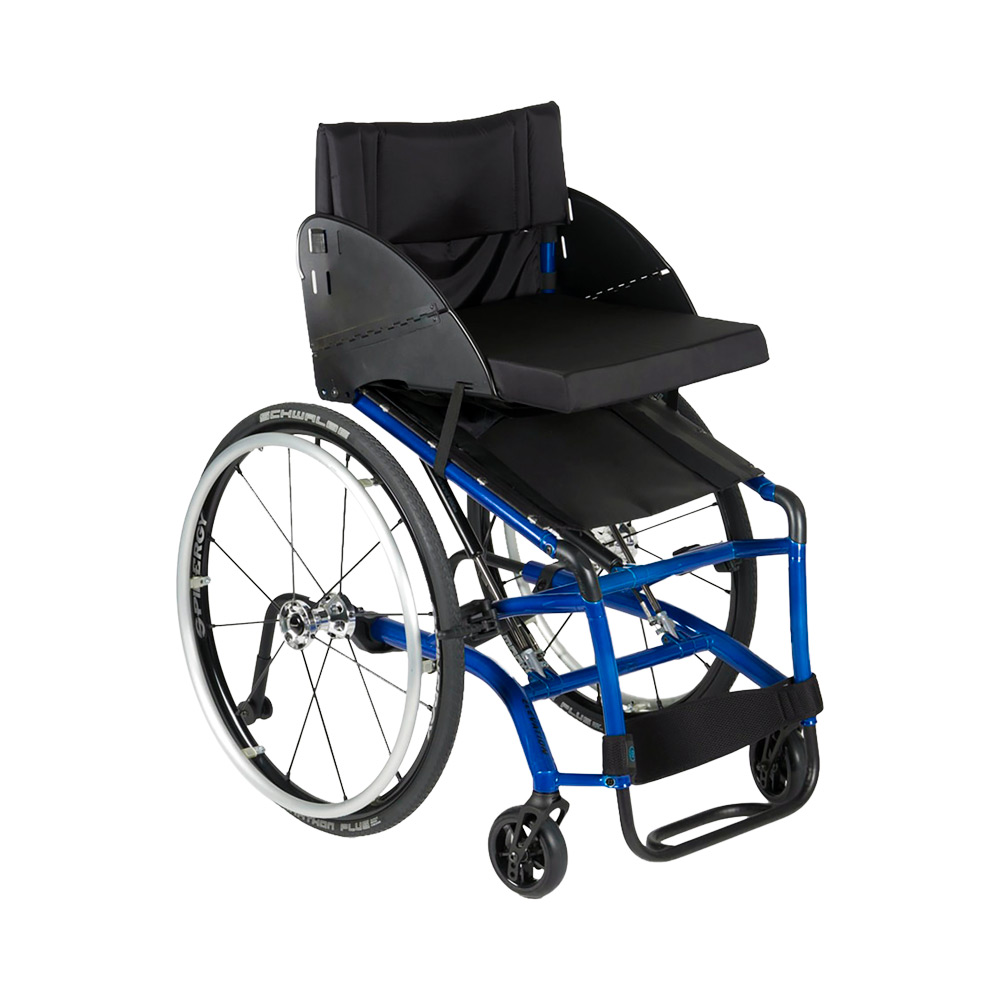

Lightweight rigid frame wheelchair with dynamisk seat height system. The wheelchair has adjustable back angle and special designed sidegaurd system for comfort and stability when elevated.

Classification
12 22 03 15 - Manual stand-up wheelchairs

Documents
Brochure


The product series contains 8 products.

» Summarize specifications

Product 1 of 8
PDG Elevation SW 30 cm


HMI-no.
109015
Article-no.
838000001000

Registration date
01-04-2018
Last updated
11-09-2025

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Stand-up function, electrically operated
No

Measures
User weight, max
113
kg
Seat height, min
45
cm
Seat height, max
53
cm
Back rest height, min
21.5
cm
Back rest height, max
30
cm
Total width
48
cm
Total length
82
cm
Weight
10
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Seat width
30
cm
Seat depth
35
cm
Seat depth can be increased to
50
cm

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 2 of 8
PDG Elevation SW 33 cm


HMI-no.
109018
Article-no.
838000001000

Registration date
01-04-2018
Last updated
11-09-2025

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Stand-up function, electrically operated
No

Measures
User weight, max
113
kg
Seat height, min
45
cm
Seat height, max
53
cm
Back rest height, min
21.5
cm
Back rest height, max
30
cm
Total width
51
cm
Total length
82
cm
Weight
10
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Seat width
33
cm
Seat depth
35
cm
Seat depth can be increased to
50
cm

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 3 of 8
PDG Elevation SW 35 cm


HMI-no.
109021
Article-no.
838000001000

Registration date
01-04-2018
Last updated
11-09-2025

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Stand-up function, electrically operated
No

Measures
User weight, max
113
kg
Seat height, min
45
cm
Seat height, max
53
cm
Back rest height, min
21.5
cm
Back rest height, max
30
cm
Total width
53
cm
Total length
82
cm
Weight
10
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Seat width
35
cm
Seat depth
35
cm
Seat depth can be increased to
50
cm

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 4 of 8
PDG Elevation SW 38 cm


HMI-no.
109024
Article-no.
838000001000

Registration date
01-04-2018
Last updated
11-09-2025

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Stand-up function, electrically operated
No

Measures
User weight, max
113
kg
Seat height, min
45
cm
Seat height, max
53
cm
Back rest height, min
21.5
cm
Back rest height, max
30
cm
Total width
56
cm
Total length
82
cm
Weight
10
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Seat width
38
cm
Seat depth
35
cm
Seat depth can be increased to
50
cm

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 5 of 8
PDG Elevation SW 40 cm


HMI-no.
109027
Article-no.
838000001000

Registration date
01-04-2018
Last updated
11-09-2025

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Stand-up function, electrically operated
No

Measures
User weight, max
113
kg
Seat height, min
45
cm
Seat height, max
53
cm
Back rest height, min
21.5
cm
Back rest height, max
30
cm
Total width
58
cm
Total length
82
cm
Weight
10
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Seat width
40
cm
Seat depth
35
cm
Seat depth can be increased to
50
cm

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 6 of 8
PDG Elevation SW 43 cm


HMI-no.
109030
Article-no.
838000001000

Registration date
01-04-2018
Last updated
11-09-2025

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Stand-up function, electrically operated
No

Measures
User weight, max
113
kg
Seat height, min
45
cm
Seat height, max
53
cm
Back rest height, min
21.5
cm
Back rest height, max
30
cm
Total width
61
cm
Total length
82
cm
Weight
10
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Seat width
43
cm
Seat depth
35
cm
Seat depth can be increased to
50
cm

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 7 of 8
PDG Elevation SW 45 cm


HMI-no.
109033
Article-no.
838000001000

Registration date
01-04-2018
Last updated
11-09-2025

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Stand-up function, electrically operated
No

Measures
User weight, max
113
kg
Seat height, min
45
cm
Seat height, max
53
cm
Back rest height, min
21.5
cm
Back rest height, max
30
cm
Total width
63
cm
Total length
82
cm
Weight
10
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Seat width
45
cm
Seat depth
35
cm
Seat depth can be increased to
50
cm

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 8 of 8
PDG Elevation SW 48 cm


HMI-no.
109036
Article-no.
838000001000

Registration date
01-04-2018
Last updated
11-09-2025

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Stand-up function, electrically operated
No

Measures
User weight, max
113
kg
Seat height, min
45
cm
Seat height, max
53
cm
Back rest height, min
21.5
cm
Back rest height, max
30
cm
Total width
66
cm
Total length
82
cm
Weight
10
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Seat width
48
cm
Seat depth
35
cm
Seat depth can be increased to
50
cm

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
