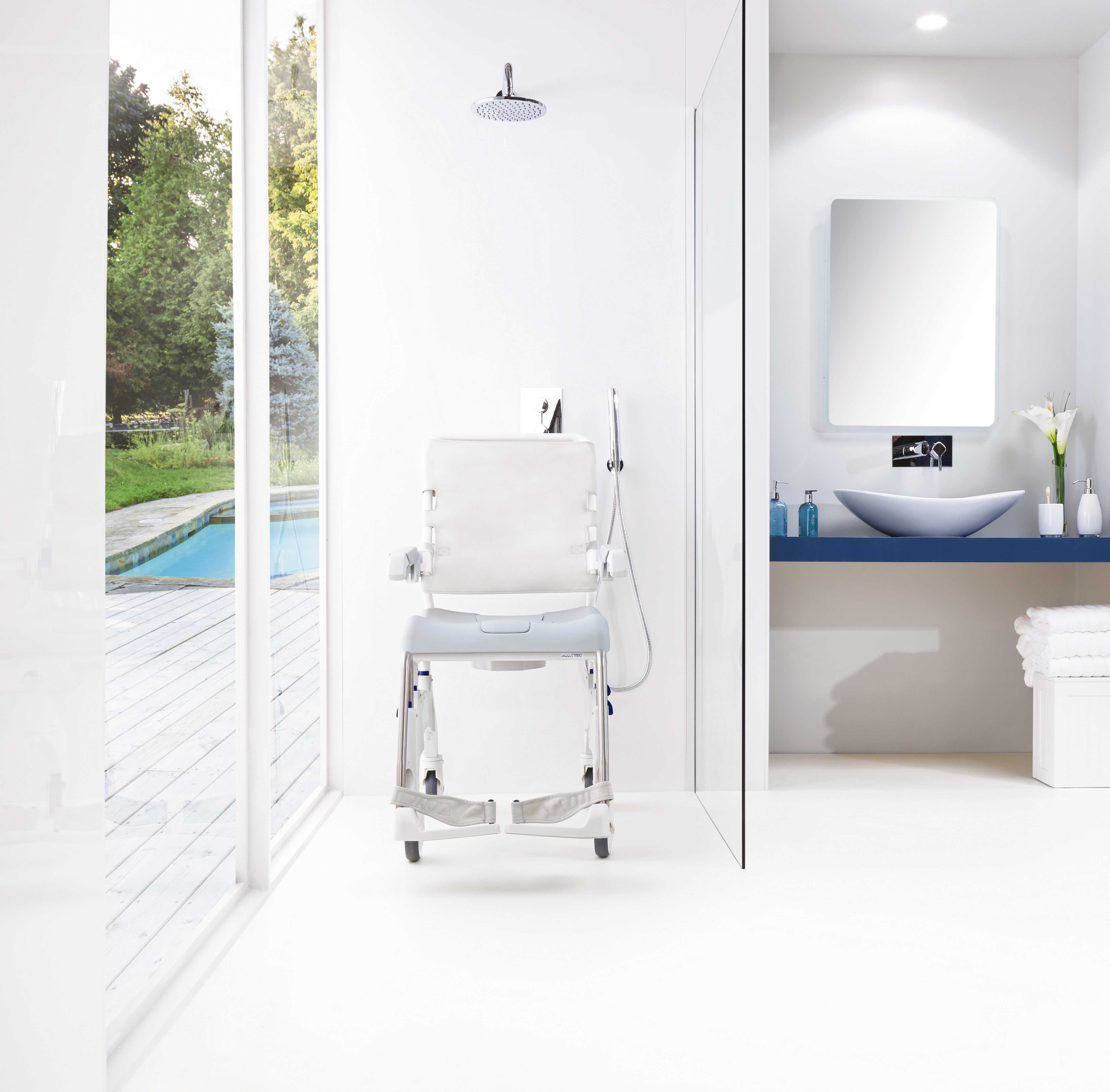

Aquatec Ocean Ergo



Ocean Ergo deliver an ergonomic design, which support the user needs for having a comfortable shower and toilet. The seatplate is ergonomic designed and follow the contour of the user. Designet for use with wallhung toilets

Classification
09 12 03 08 - Commode shower chairs with castors, non-electrical height adjustable

Documents
Brochure
User manual
QuickGuide
Accessories catalogue
Service manual


The product series contains 3 products.

» Summarize specifications

Product 1 of 3
Aquatec Ocean Ergo


HMI-no.
109123
Article-no.
1640215

Registration date
09-04-2018
Last updated
11-09-2025

Properties
Height adjustable
Manuelt
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
Yes
Possibility to change position of armrest to allow sideways transfer
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes

Measures
User weight, max
150
kg
Total width
56.5
cm
Ground clearance
54
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
45.5
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
45
cm
If the seat depth is adjustable, this is the maximum seat depth
Wheel diameter
127
mm
Number of wheels with brake
4
Seat height, min
47
cm
Seat height, max
60
cm
Height of push handles/push bar, min.
98.5
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
114.5
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 2 of 3
Aquatec Ocean Ergo


HMI-no.
137162
Article-no.
1643533

Registration date
26-06-2023
Last updated
11-09-2025

Properties
Height adjustable
Manuelt
Tension adjustable back rest upholstery
No
Can be used with standard wall-mounted toilets (without extension)
Yes
Possibility to change position of armrest to allow sideways transfer
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes

Measures
User weight, max
150
kg
Total width
56.5
cm
Ground clearance
54
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
45.5
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
45
cm
If the seat depth is adjustable, this is the maximum seat depth
Wheel diameter
127
mm
Number of wheels with brake
4
Seat height, min
47
cm
Seat height, max
60
cm
Height of push handles/push bar, min.
98.5
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
114.5
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Aquatec Ocean Ergo with solid back.


Product 3 of 3
Aquatec Ocean Ergo XL


HMI-no.
114090
Article-no.
1640218

Registration date
22-01-2019
Last updated
11-09-2025

Properties
Height adjustable
Manuelt
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
Yes
Possibility to change position of armrest to allow sideways transfer
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes

Measures
User weight, max
180
kg
Total width
64.5
cm
Ground clearance
52
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
53.5
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
45
cm
If the seat depth is adjustable, this is the maximum seat depth
Wheel diameter
127
mm
Number of wheels with brake
4
Seat height, min
47
cm
Seat height, max
60
cm
Height of push handles/push bar, min.
98.5
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
114.5
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
