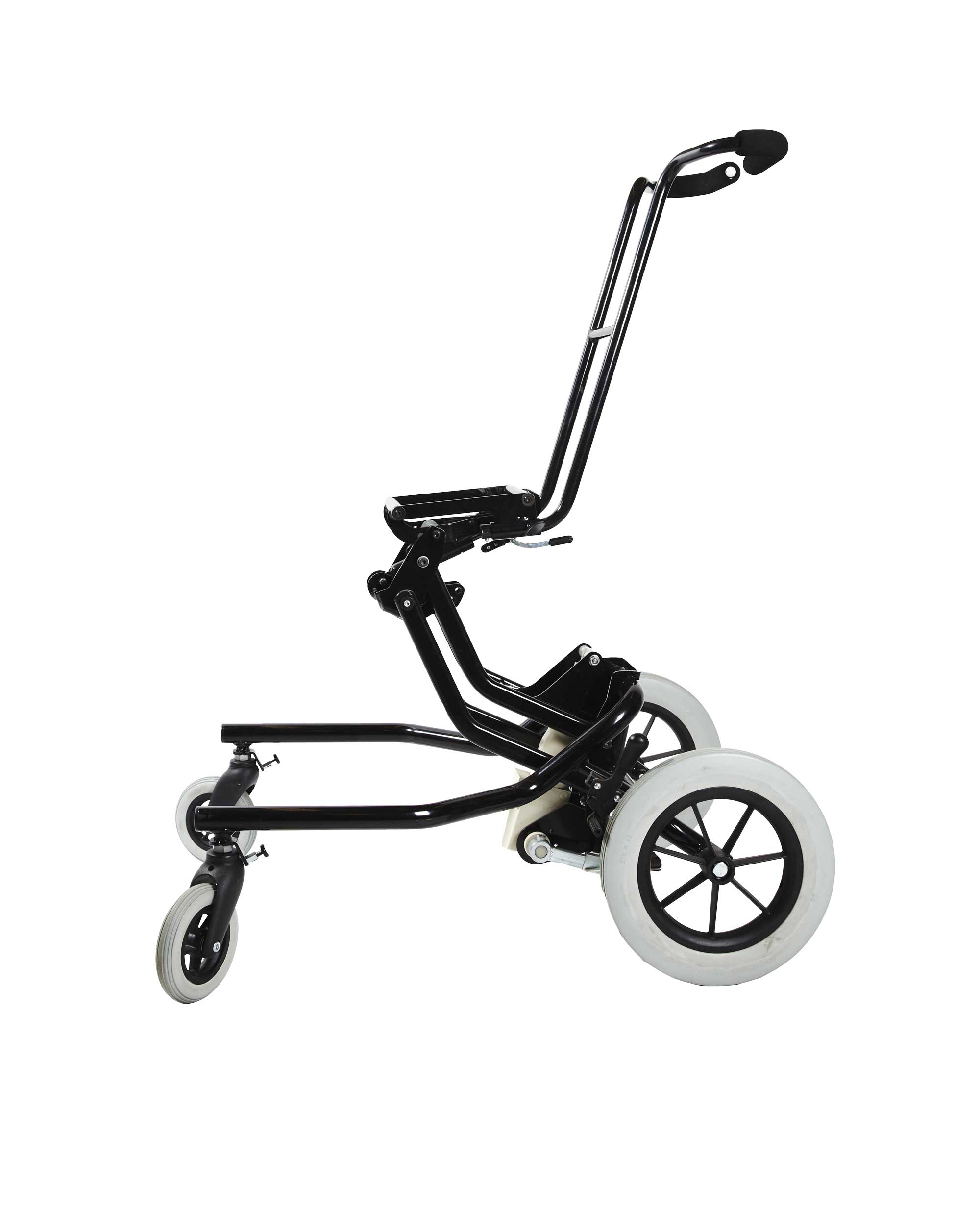

Hi-low outdoor chassis, hydraulic

Hi-low outdoor chassis, hydraulic

Classification
12 22 18 06 - Frames for wheelchairs

Documents
Brochure
User manual


The product series contains 1 product.

Product 1 of 1
Hi-low outdoor chassis, hydraulic


HMI-no.
110686
Article-no.
840100101133

Registration date
31-07-2018
Last updated
11-09-2025

Properties
Can be subsequently equipped with propulsion unit
Yes
Can be mounted on a stair climber
No
Intended for fastening in a car
No
Height adjustable
Yes
Indoor use
No
Outdoor use
Yes
Push handles
Yes

Measures
Total width
40
cm
The narrowest possible configuration.
Total length
50
cm
Weight
12
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Load, max
60
kg
Including seat, accessories, and person.
Height, min
36
cm
Measured from the floor to the top of the adapter unit in the lowest position.
Height, max
70
cm
Measured from the floor to the top of the adapter unit in the highest position.
Tilt-in-space forward
10
°
Measured from the horizontal position.
Tilt-in-space back
25
°
Measured from the horizontal position.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
