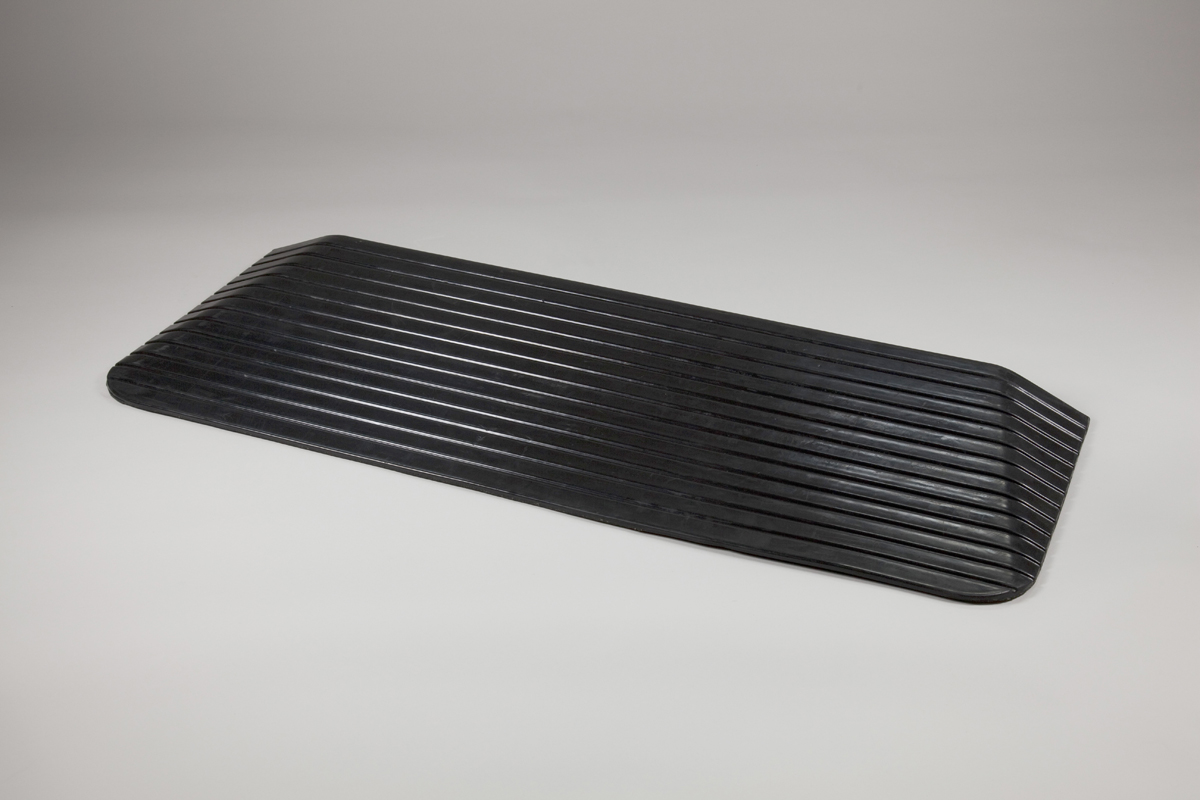

Threshold ramps in rubber with sloping edges

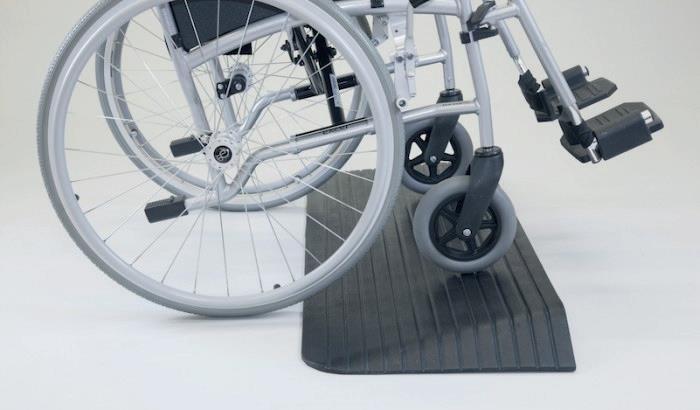

The rubber threshold ramp is perfect for passages with small height differences and can be used both outdoor and indoors. The ramp is made from 100 recyclable rubber and its ribbed surface makes it slip resistant. Fitting of the ramp does not require removal of existing thresholds or the use of special tools. The ramp is made in various sizes.
Classification
18 24 12 03 - Threshold ramps, single-sided
Documents
BrochureThe product series contains 4 products.
Specifications summarized
Specifications for the 4 products in the product series. Click a HMI-no. to see all details for a single product.| Product 1 - 4 | ||||
|---|---|---|---|---|
| Specification/HMI-no. | 112319 | 112320 | 112321 | 112322 |
| Outdoor use | Yes | Yes | Yes | Yes |
| Indoor use | Yes | Yes | Yes | Yes |
| Length in direction of travel (cm) | 21 | 32 | 41 | 42 |
| Width (cm) | 110.5 | 110.5 | 110.5 | 110.5 |
| Threshold height, min (mm) | 25 | 38 | 50 | 63 |
| Threshold height, max (mm) | 25 | 38 | 50 | 63 |
| Load, max (kg) | 1000 | 1000 | 1000 | 1000 |
