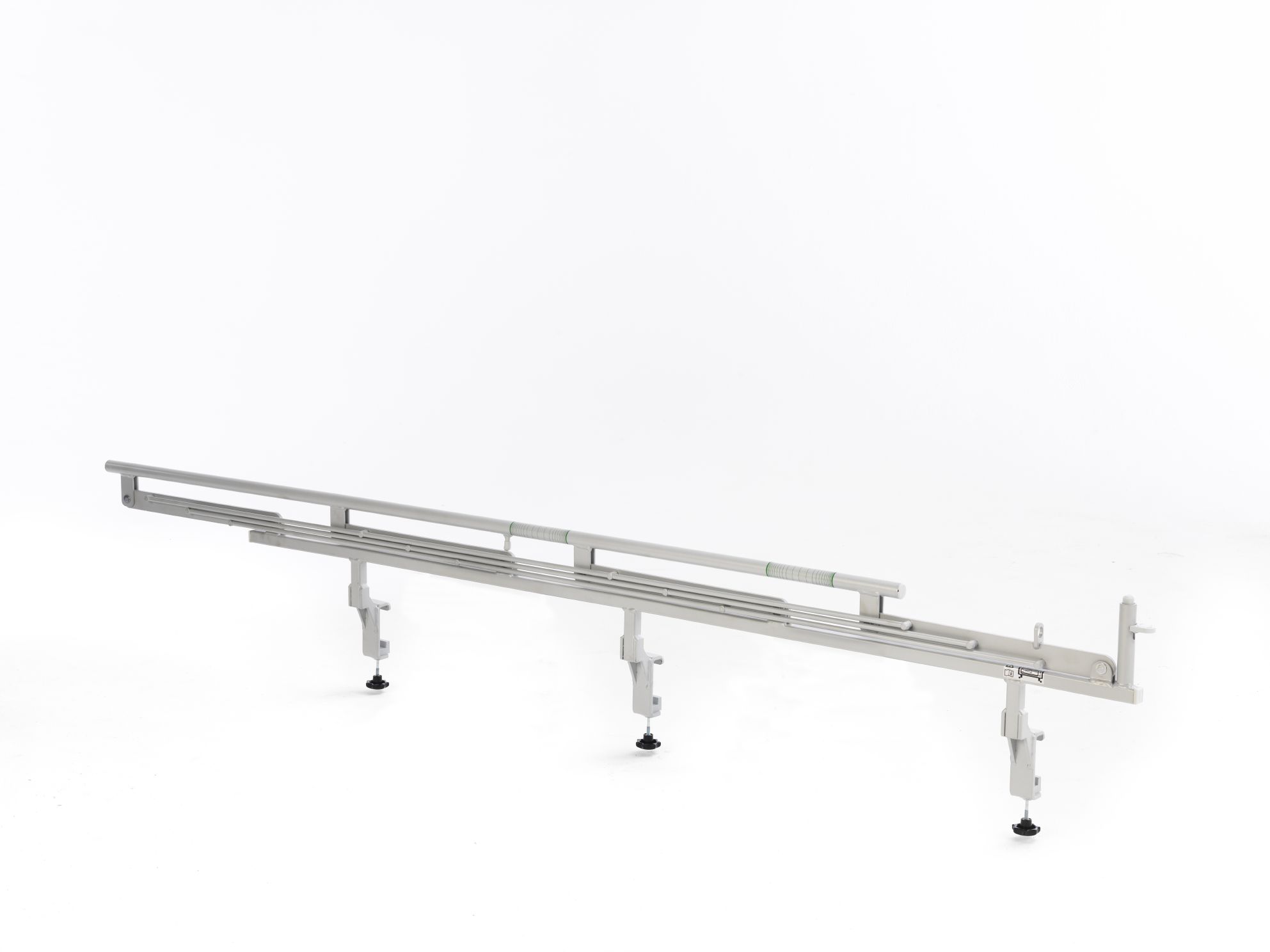

Ane siderail for Nordbed



Ane side rails can be used with the Nordbed care bed. The side rails are methal side rails, lowered along the side. Max/min mattress heights: 10 - 18 and 18 - 29 cm. TÜV approved according to EU Bed standard.

Classification
18 12 26 01 - Side rails in one piece

Documents
Brochure
User manual
QuickGuide


The product series contains 4 products.

» All product details

Specifications summarized

Specifications for the 4 products in the product series. Click a HMI-no. to see all details for a single product.

Product 1 - 4
Specification/HMI-no.115818115821115809115815
Only intended for use with specific productsYesYesYesYes
Removable without toolsYesYesYesYes
Integrated
Indicates whether the side rail is mounted in both end panels
NoNoNoNo
Vertical foldable
Indicates whether folding takes place with a vertical movement lowering the upper point of the side rail
NoNoNoNo
Lateral foldable
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the side rail along the bed
YesYesYesYes
Rotational foldable
Indicates whether folding takes place with a 180 degrees rotational movement of the side rail pivoting around its lower fixation point
NoNoNoNo
Can be used in the left side of the bedYesYesYesYes
Can be used in the right side of the bedYesYesYesYes
Can the locking mechanism be operated by the person lying in the bedYesYesYesYes
Height (cm)
Measured from the mattress support platform (without mattress) to the upper point of the side rail
55554646
Length (cm)168168160160
