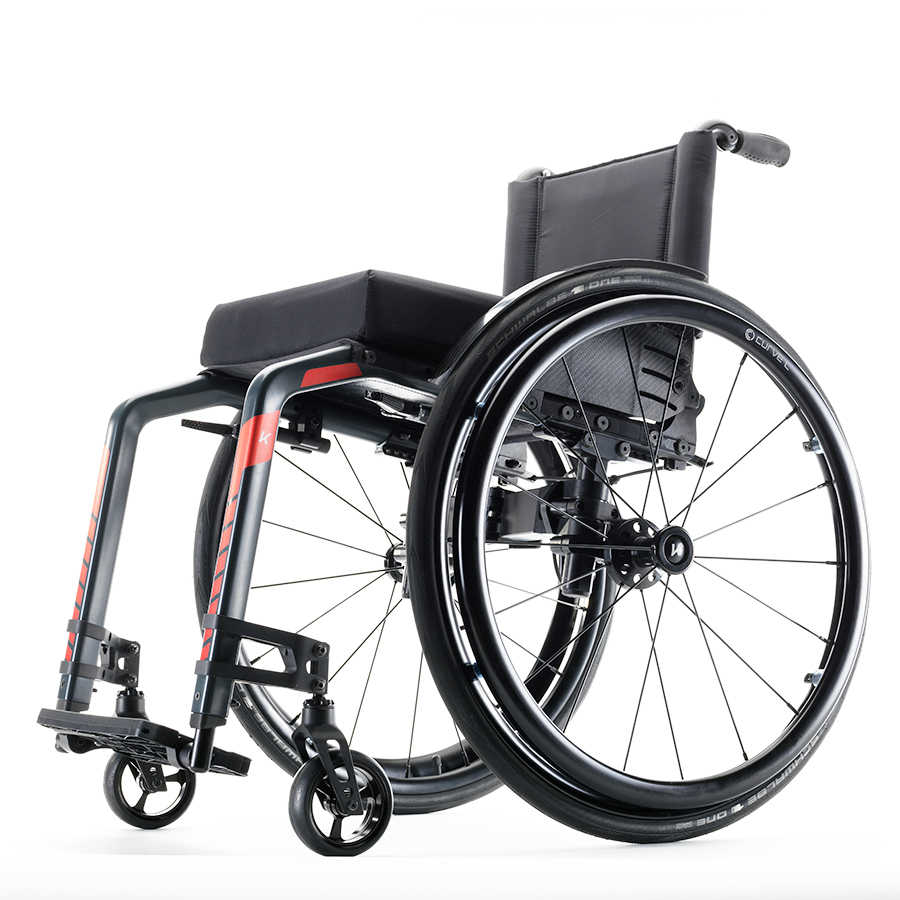

Küschall Champion 2.0




Classification
12 22 03 13 - Manual wheelchairs with rigid frame, standard measures

Documents
Brochure
User manual
Service manual


The product series contains 7 products.

» Summarize specifications

Product 1 of 7
Küschall Champion 2.0 SW 36


HMI-no.
119062
Article-no.
konfigurerbar

Registration date
22-08-2019
Last updated
22-10-2025

Properties
Number of wheels
4
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No

Measures
User weight, max
125
kg
Seat height, min
45
cm
Seat height, max
54
cm
Back rest height, min
30
cm
Back rest height, max
46.5
cm
Total width
52
cm
Total length
85
cm
Weight
9.2
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
36
cm
Seat depth
34
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 2 of 7
Küschall Champion 2.0 SW 38


HMI-no.
119063
Article-no.
konfigurerbar

Registration date
22-08-2019
Last updated
22-10-2025

Properties
Number of wheels
4
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No

Measures
User weight, max
125
kg
Seat height, min
45
cm
Seat height, max
54
cm
Back rest height, min
30
cm
Back rest height, max
46.5
cm
Total width
54
cm
Total length
85
cm
Weight
9.2
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
38
cm
Seat depth
34
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 3 of 7
Küschall Champion 2.0 SW 40


HMI-no.
119066
Article-no.
konfigurerbar

Registration date
22-08-2019
Last updated
22-10-2025

Properties
Number of wheels
4
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No

Measures
User weight, max
125
kg
Seat height, min
45
cm
Seat height, max
54
cm
Back rest height, min
30
cm
Back rest height, max
46.5
cm
Total width
56
cm
Total length
85
cm
Weight
9.2
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
40
cm
Seat depth
34
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 4 of 7
Küschall Champion 2.0 SW 42


HMI-no.
119069
Article-no.
konfigurerbar

Registration date
22-08-2019
Last updated
22-10-2025

Properties
Number of wheels
4
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No

Measures
User weight, max
125
kg
Seat height, min
45
cm
Seat height, max
54
cm
Back rest height, min
30
cm
Back rest height, max
46.5
cm
Total width
58
cm
Total length
85
cm
Weight
9.2
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
42
cm
Seat depth
34
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 5 of 7
Küschall Champion 2.0 SW 44


HMI-no.
119072
Article-no.
konfigurerbar

Registration date
22-08-2019
Last updated
22-10-2025

Properties
Number of wheels
4
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No

Measures
User weight, max
125
kg
Seat height, min
45
cm
Seat height, max
54
cm
Back rest height, min
30
cm
Back rest height, max
46.5
cm
Total width
60
cm
Total length
85
cm
Weight
9.2
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
44
cm
Seat depth
34
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 6 of 7
Küschall Champion 2.0 SW 46


HMI-no.
119075
Article-no.
konfigurerbar

Registration date
22-08-2019
Last updated
22-10-2025

Properties
Number of wheels
4
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No

Measures
User weight, max
125
kg
Seat height, min
45
cm
Seat height, max
54
cm
Back rest height, min
30
cm
Back rest height, max
46.5
cm
Total width
62
cm
Total length
85
cm
Weight
9.2
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
46
cm
Seat depth
34
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 7 of 7
Küschall Champion 2.0 SW 48


HMI-no.
119078
Article-no.
konfigurerbar

Registration date
22-08-2019
Last updated
22-10-2025

Properties
Number of wheels
4
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No

Measures
User weight, max
125
kg
Seat height, min
45
cm
Seat height, max
54
cm
Back rest height, min
30
cm
Back rest height, max
46.5
cm
Total width
64
cm
Total length
85
cm
Weight
9.2
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
48
cm
Seat depth
34
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
