Eloflex X




Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)

Documents
User manual
Accessories catalogue


The product series contains 1 product.

Product 1 of 1

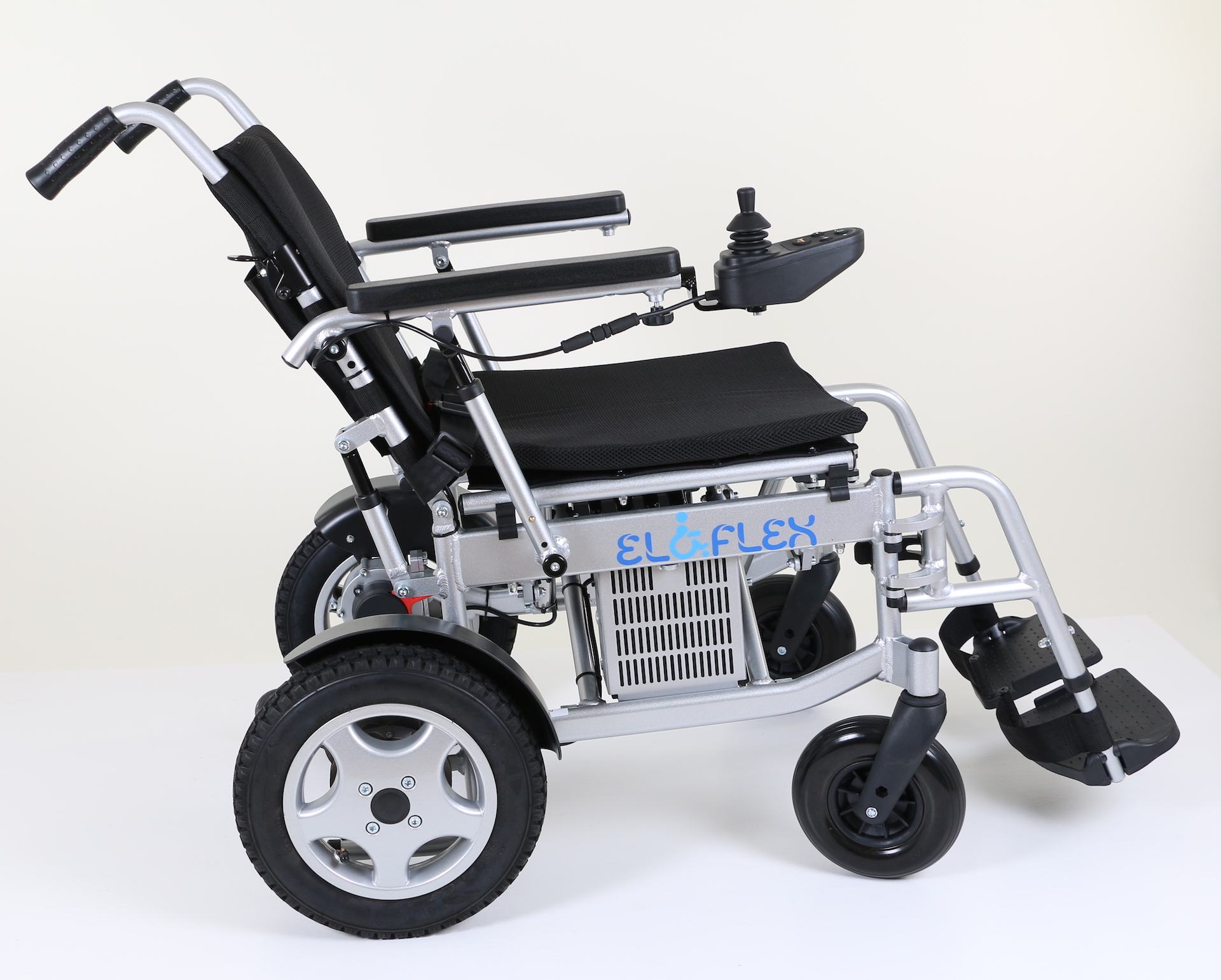

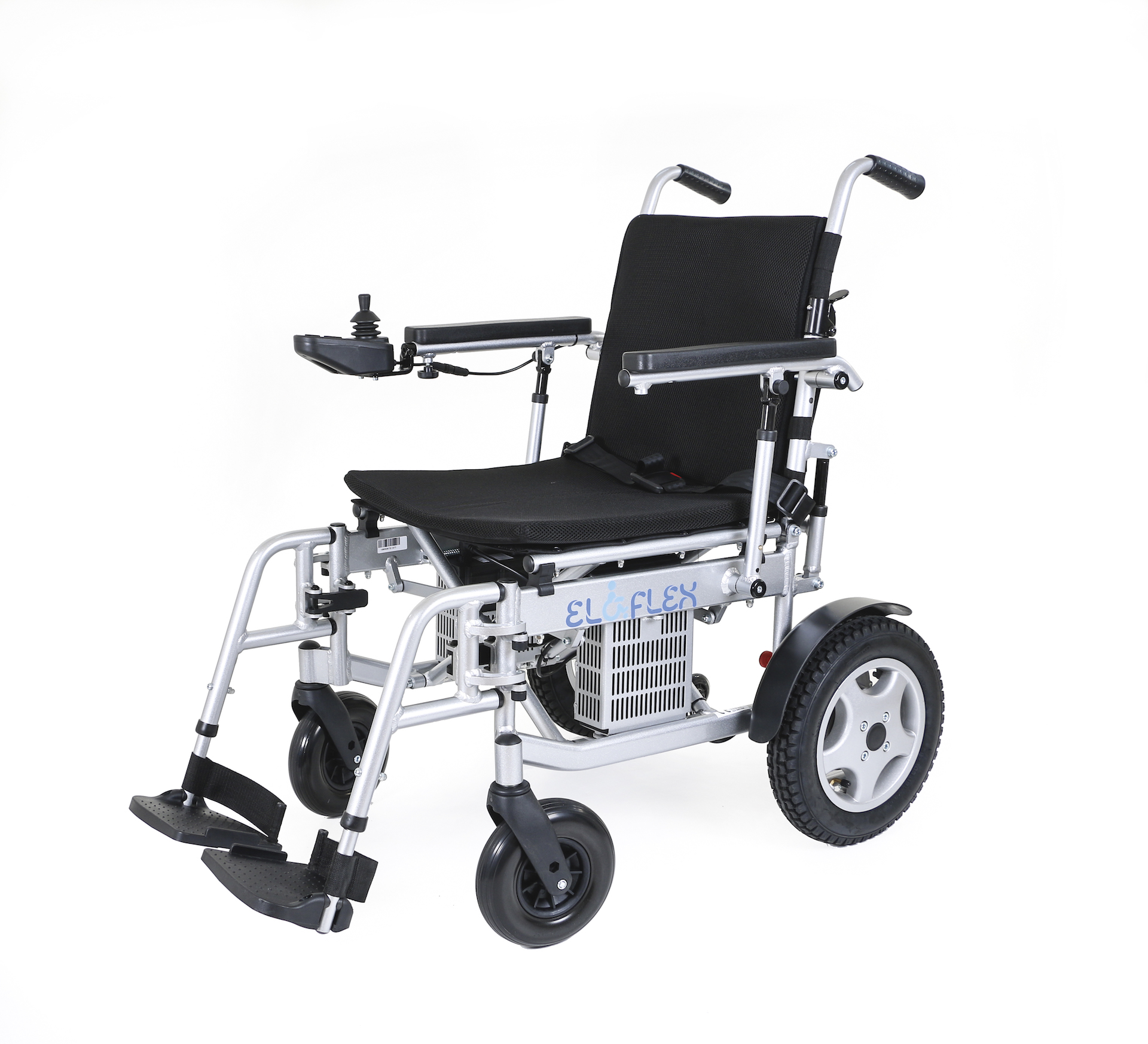

Eloflex X


HMI-no.
119605
Article-no.
7350006080623

Registration date
17-09-2019
Last updated
11-09-2025

Properties
Programmable
Yes
Elevating seat
No
Powered recline
No
Powered tilt
No
Powered legrests
No
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
No
Rear-wheel-driven
Yes
Can be used as seat in a car
Yes

Measures
User weight, max
120
kg
External width
62
cm
Measured where widest
External length
102
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
28
kg
Speed, max
10
km/t
Driving distance range, fully charged
25
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
51
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
51
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
9
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
0
°
Measured from the horizontal position.
Ground clearance
10
cm
Slope, max
20
°
Climbs obstacles of max
9
cm

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12182:1999: Technical aids for disabled persons - General requirements and test methods.
Test lab: C.E.R.A.H. (Fr). Test date: 26-06-2017 Test report for HMI-no. 119605

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
