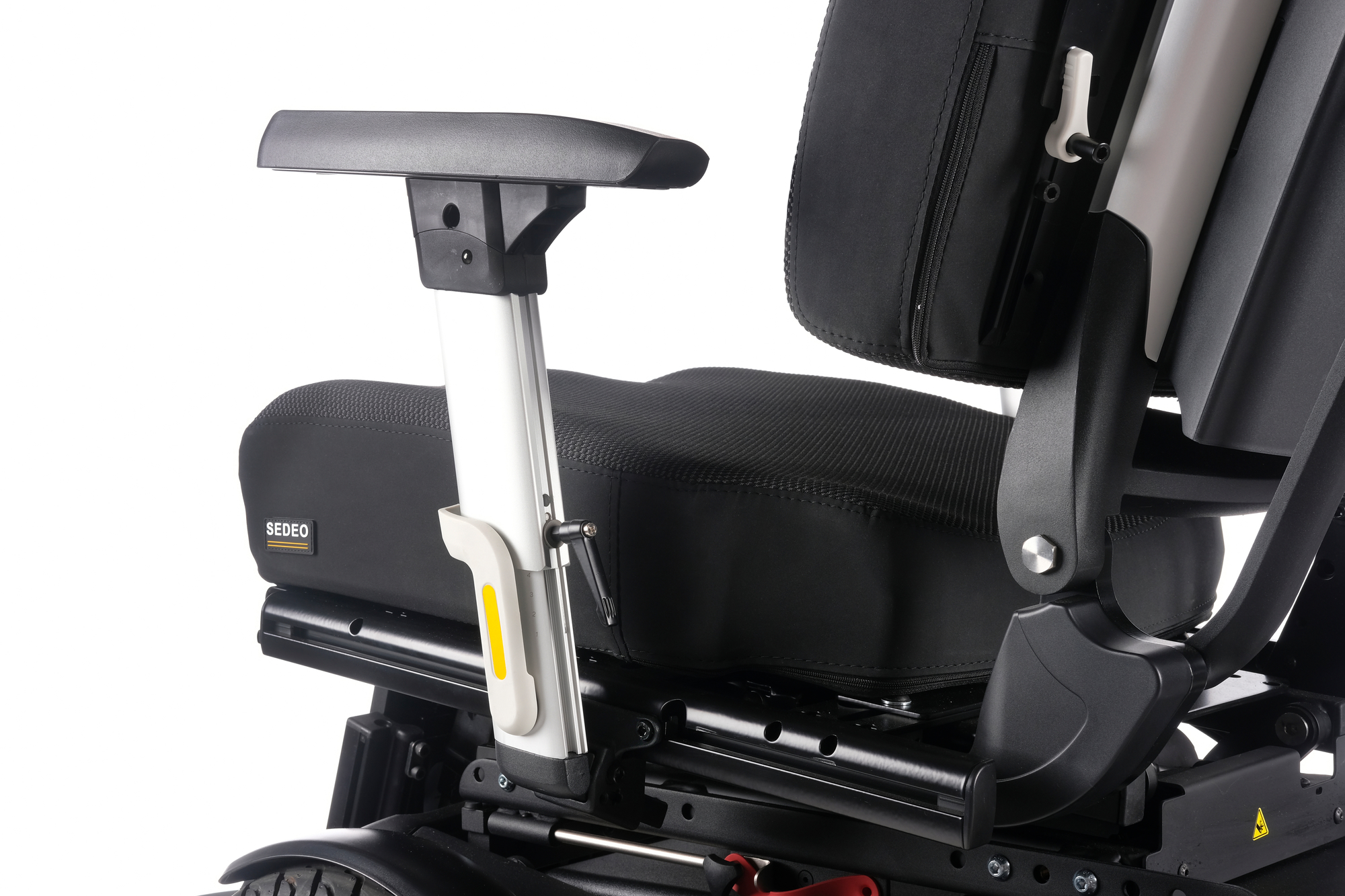

Q500 F Base Chair



FRONT-WHEEL POWERED WHEELCHAIR
Overcome obstacles outside and enjoy easy access indoors with the NEW QUICKIE Q500 F SEDEO PRO giving you the best of both worlds.

Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)

Documents
Brochure
User manual


The product series contains 1 product.

Product 1 of 1
Q500 F Base Chair


HMI-no.
120120
Article-no.
Q0P000024

Registration date
11-11-2019
Last updated
11-09-2025

Properties
Programmable
Yes
Elevating seat
Yes
Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
Yes
Mid-wheel-driven
No
Rear-wheel-driven
No
Can be used as seat in a car
No

Measures
User weight, max
160
kg
External width
61
cm
Measured where widest
External length
93
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
133
kg
Speed, max
13
km/t
Driving distance range, fully charged
40
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
41.5
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
49
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
150
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
30
°
Measured from the horizontal position.
Ground clearance
6
cm
Slope, max
8
°
Climbs obstacles of max
7
cm

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12182:1999: Technical aids for disabled persons - General requirements and test methods.
Test lab: TÜV SÜD Product Service GmbH. Test date: 15-03-2019 Test report for HMI-no. 120120

ISO 7176-19:2008: Wheelchairs - Part 19: Wheeled mobility devices for use as seats in motor vehicles.
Test lab: The University of Michigan Transportation Research Institute. Test date: 20-06-2018 Test report for HMI-no. 120120

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
