Raz AP

Raz AP

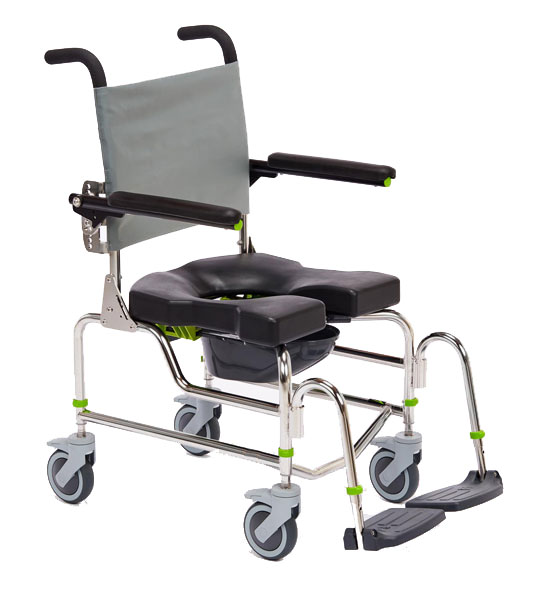

The RAZ-AP shower and commode chair comes standard with the Ischial & Pelvic Alignment System (IPAS), which supports and positions the pelvis. In addition, the chair has flip-up armrests with a soft padded surface and a user-friendly pelvis.

Classification
09 12 03 08 - Commode shower chairs with castors, non-electrical height adjustable

Documents
Brochure
User manual


The product series contains 1 product.

Product 1 of 1
Raz AP


HMI-no.
120297
Article-no.
840720000710

Registration date
25-11-2019
Last updated
11-09-2025

Properties
Height adjustable
Manuelt
Tension adjustable back rest upholstery
No
Can be used with standard wall-mounted toilets (without extension)
Yes
Possibility to change position of armrest to allow sideways transfer
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
No
Legrest position may be changed to facililtate hygiene and transfer
Yes

Measures
User weight, max
160
kg
Total width
57
cm
Ground clearance
51
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
48
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
42
cm
If the seat depth is adjustable, this is the maximum seat depth
Wheel diameter
120
mm
Number of wheels with brake
4
Seat height, min
51
cm
Seat height, max
61
cm
Height of push handles/push bar, min.
104
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
115
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
