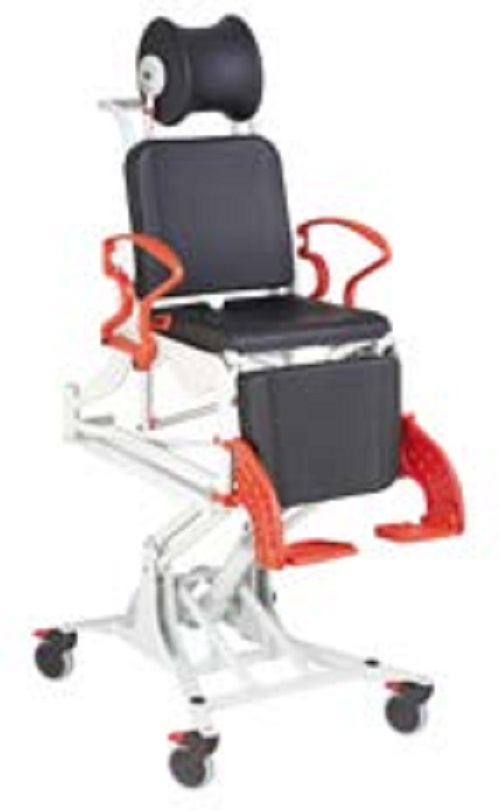

PHOENIX Multifunction wheelchair




Classification
09 12 03 10 - Commode shower chairs with wheels and tilt, no electrical functions

Documents
Brochure
User manual


The product series contains 2 products.

» Summarize specifications

Product 1 of 2
PHOENIX Multifunction wheelchair


HMI-no.
121881
Article-no.
351.10.10

Registration date
07-02-2020
Last updated
01-09-2026

Properties

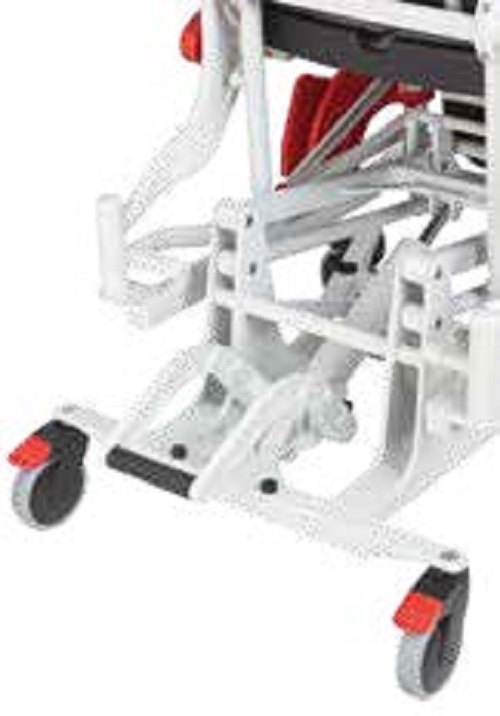

Height adjustable
Hydraulik/gas
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
No
Possibility to change position of armrest to allow sideways transfer
Yes

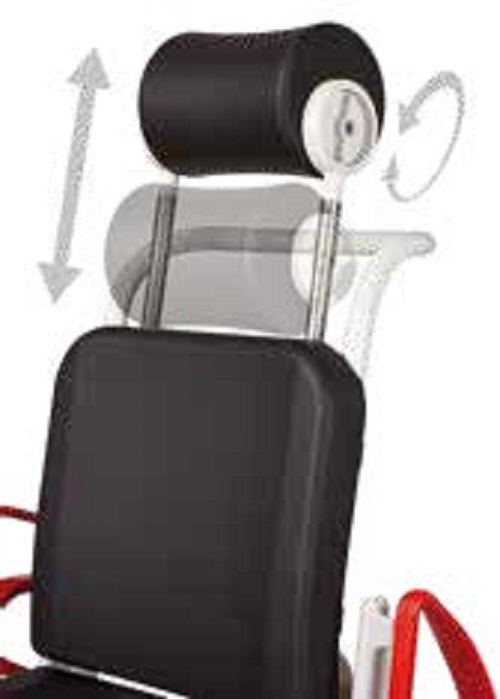

Head support
Yes
Fold-up foot supports
Yes
Height adjustable legrests
No
Elevating legrests
No
Legrest position may be changed to facililtate hygiene and transfer
No

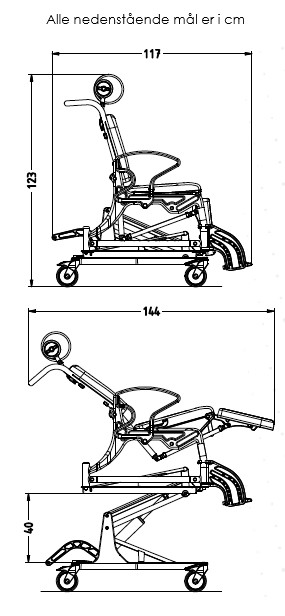

Measures
User weight, max
150
kg
Total width
68
cm
Ground clearance
0
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
54
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
43
cm
If the seat depth is adjustable, this is the maximum seat depth
Seat height, min
60
cm
Seat height, max
100
cm
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
25
°
Measured from the horizontal position.
Number of wheels with brake
4
Wheel diameter
125
mm
Height of push handles/push bar, min.
1060
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
1060
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 121881

Product 2 of 2
PHOENIX Multifunction wheelchair


HMI-no.
123256
Article-no.
351.10.40

Registration date
17-03-2020
Last updated
01-09-2026

Properties
Height adjustable
Hydraulik/gas
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
No
Possibility to change position of armrest to allow sideways transfer
Yes
Head support
Yes
Fold-up foot supports
Yes
Height adjustable legrests
No
Elevating legrests
No
Legrest position may be changed to facililtate hygiene and transfer
No

Measures
User weight, max
150
kg
Total width
68
cm
Ground clearance
0
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
54
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
43
cm
If the seat depth is adjustable, this is the maximum seat depth
Seat height, min
59
cm
Seat height, max
99
cm
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
25
°
Measured from the horizontal position.
Number of wheels with brake
4
Wheel diameter
125
mm
Height of push handles/push bar, min.
1060
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
1060
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 123256
