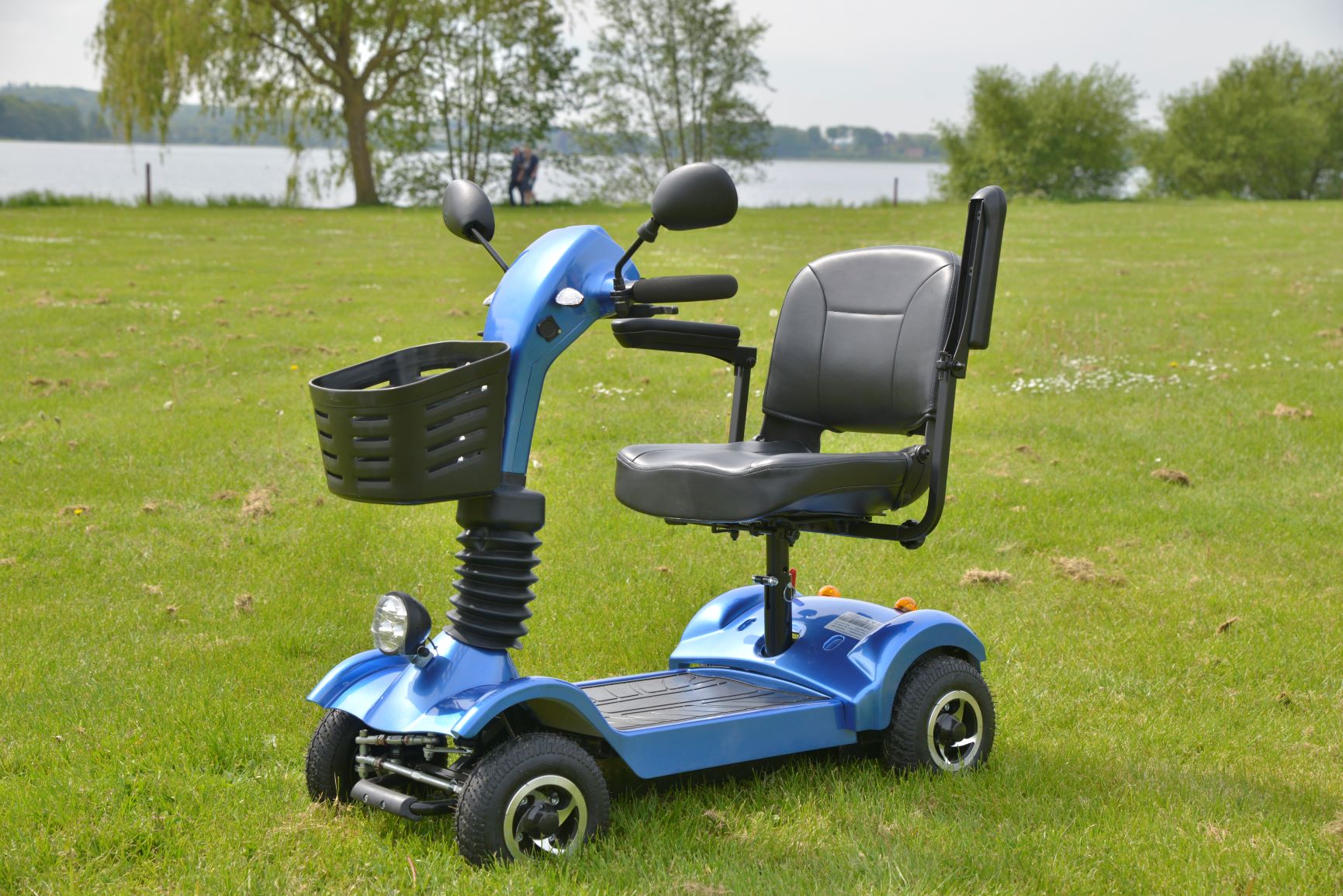

Stenbuk




Classification
12 23 03 06 - Powered wheelchair, manual steering, class B (for indoor and outdoor use)

Documents
User manual


The product series contains 1 product.

Product 1 of 1
Stenbuk


HMI-no.
125162
Article-no.
1001

Registration date
16-06-2020
Last updated
22-09-2025

Properties
Number of wheels
4
Programmable
No
Suspension
No
Can be used as seat in a car
No
Can be disassembled without tools
Yes
With cubicle
No

Measures
User weight, max
120
kg
Width
65
cm
Maximum external width.
Length
115
cm
Maximum external length without extra accessories.
Weight
68
kg
Seat height, min
50
cm
The vertical distance between the foot rest and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
65
cm
The vertical distance between the foot rest and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Speed, max
10
km/t
Driving distance range, fully charged
25
km
The theoretical driving distance range as calculated through laboratory testing.
Ground clearance
15
cm
Slope, max
7
°
Climbs obstacles of max
13
cm
Weight of heaviest main part
50
kg

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12184:2009: Electrically powered wheelchairs, scooters and their chargers - Requirements and test methods.
Test lab: Shenzhen STONE testing technology. Test date: 28-11-2014 Test report for HMI-no. 125162

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
