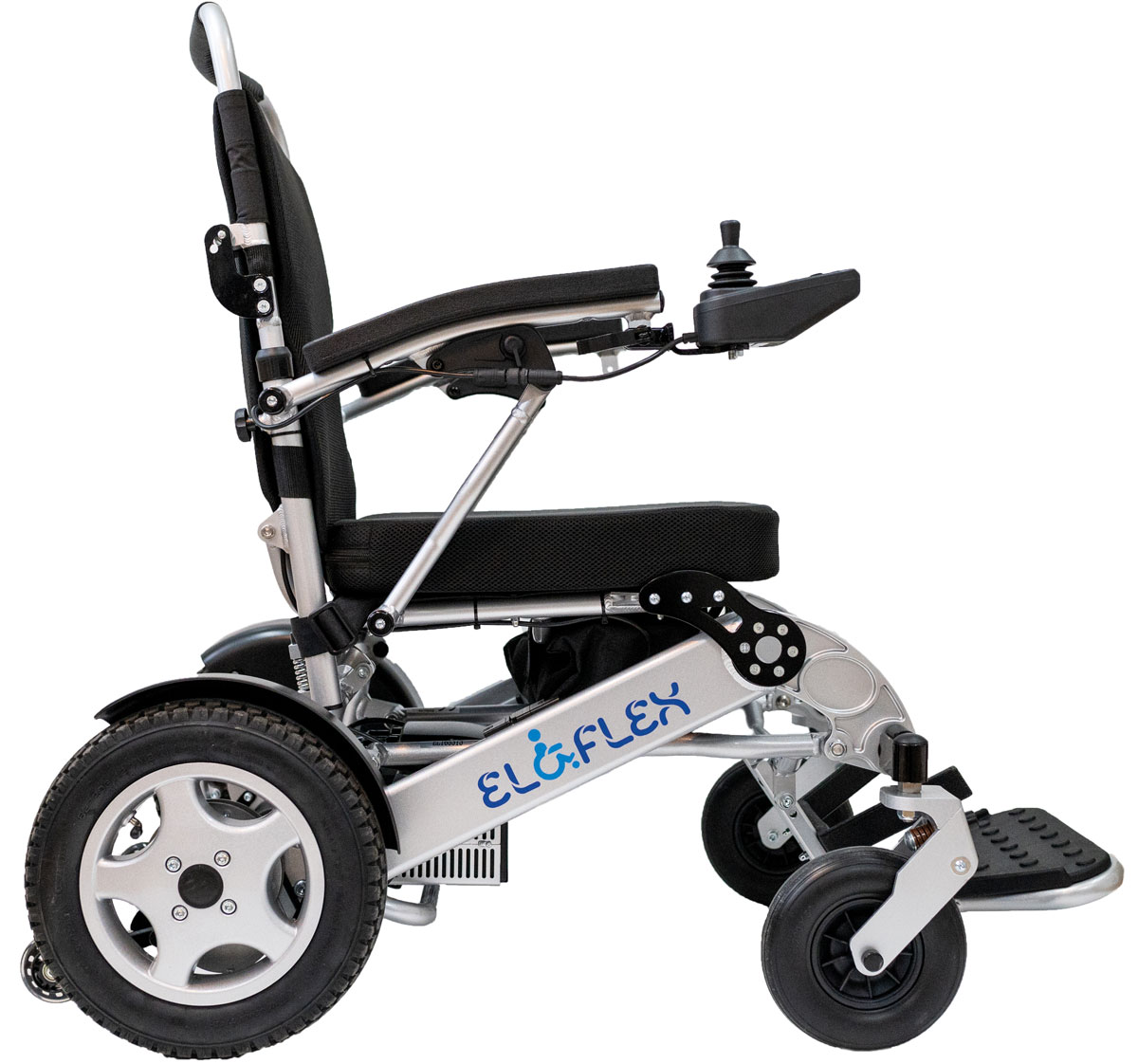

Eloflex D2

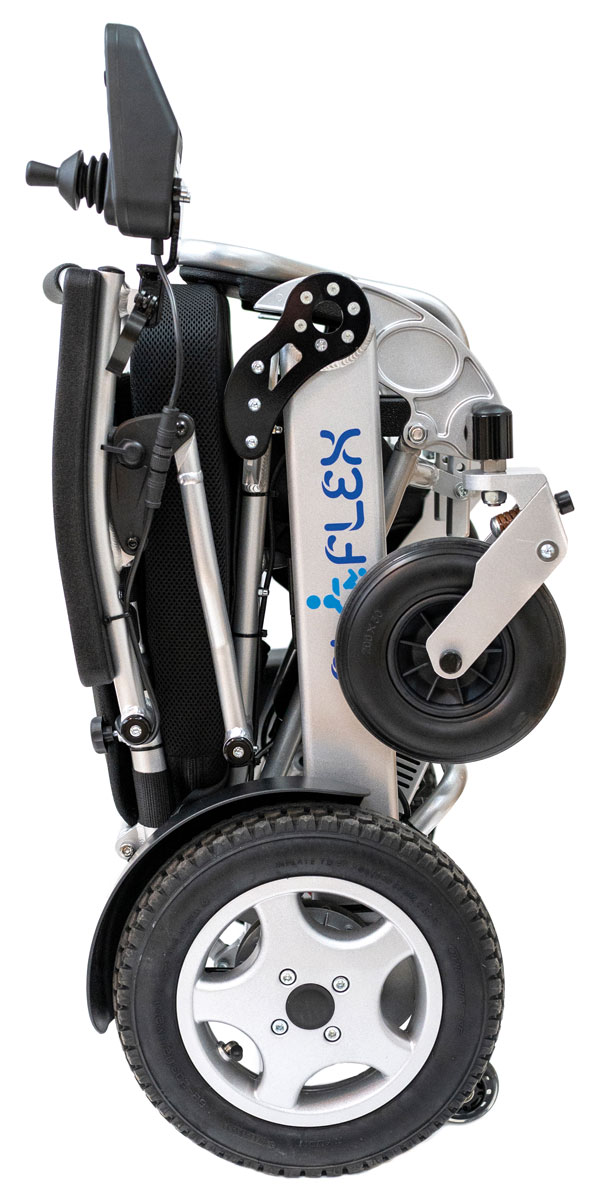

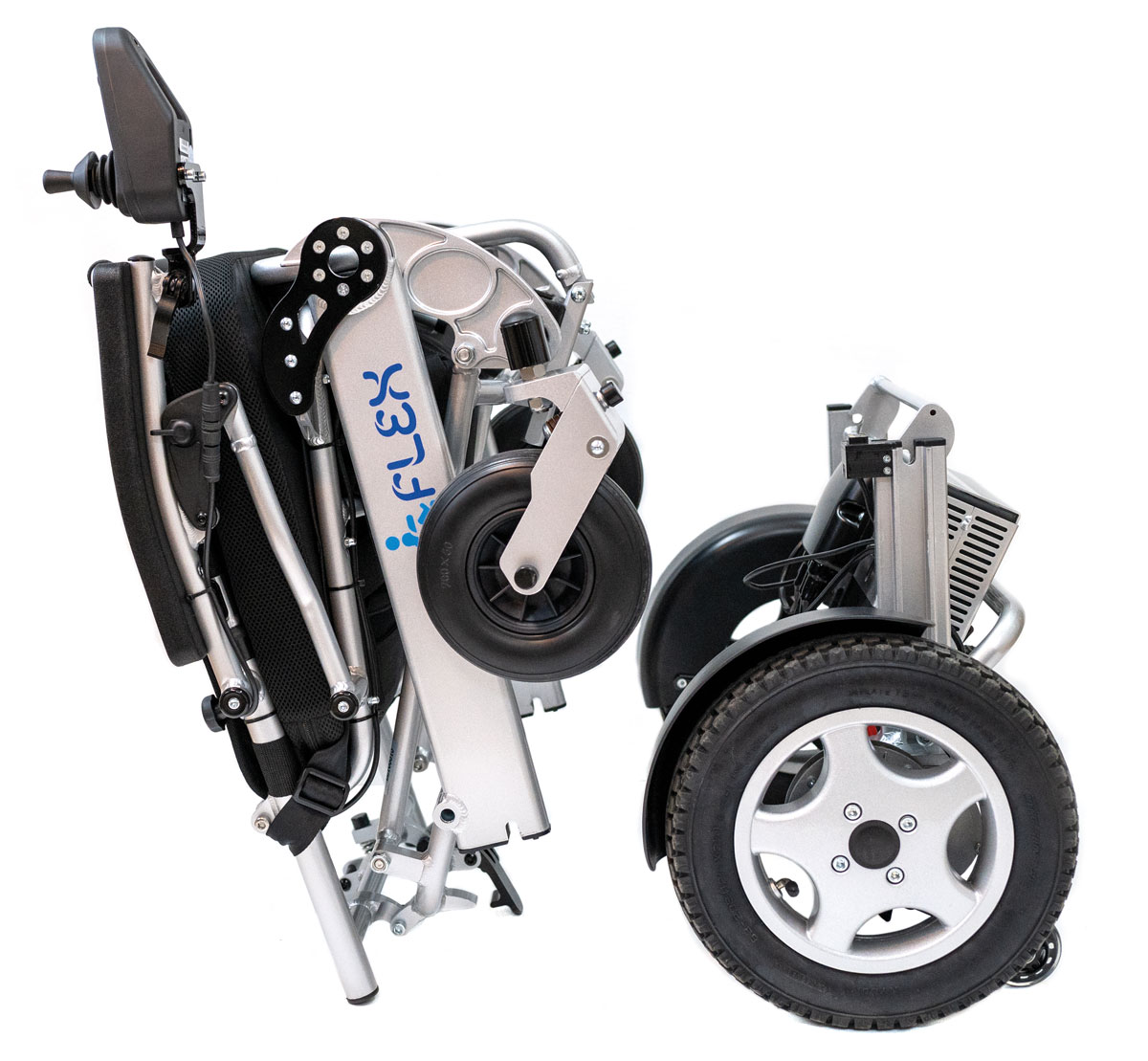

Eloflex D2, lightweight foldable electrical wheelchair, can be split up in 2 parts weighing resp. 14 & 17 kgs. User weight up to 160 kgs. Range on a single charge 30 km. Operating time on a charge 6 hrs.

Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)

Documents
Brochure
User manual
Accessories catalogue


The product series contains 1 product.

Product 1 of 1
Eloflex D2


HMI-no.
128784
Article-no.
7350006080616

Registration date
22-03-2021
Last updated
11-09-2025

Properties
Programmable
Yes
Elevating seat
No
Powered recline
No
Powered tilt
No
Powered legrests
No
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
No
Rear-wheel-driven
Yes
Can be used as seat in a car
Yes

Measures
User weight, max
160
kg
External width
62
cm
Measured where widest
External length
107
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
32.7
kg
Speed, max
8
km/t
Driving distance range, fully charged
30
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
50
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
60
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
15
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
15
°
Measured from the horizontal position.
Ground clearance
6.2
cm
Slope, max
9
°
Climbs obstacles of max
6.5
cm

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12182:1999: Technical aids for disabled persons - General requirements and test methods.
Test lab: C.E.R.A.H. Institution Nationale Des Invalides. Test date: 26-06-2017 Test report for HMI-no. 128784

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
