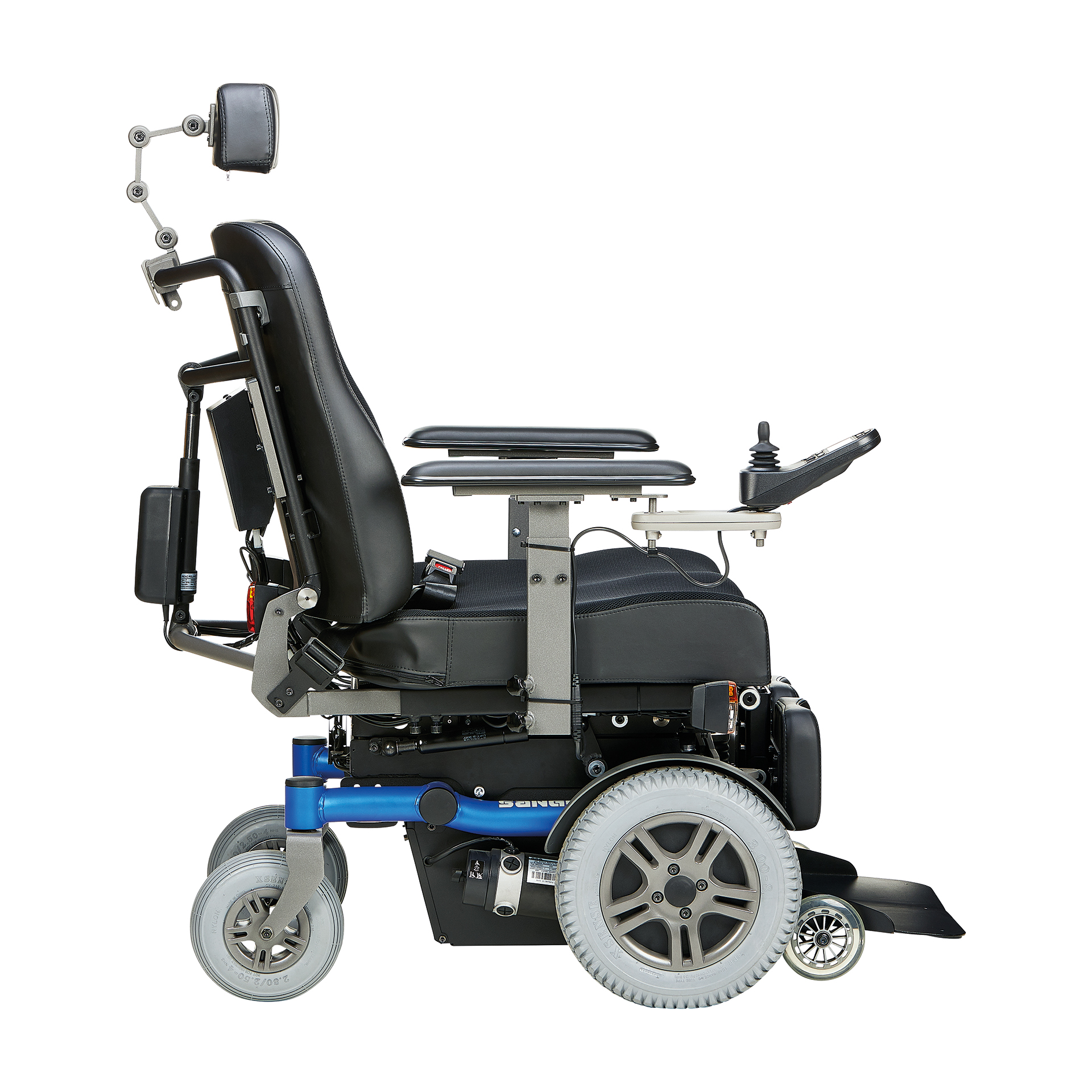

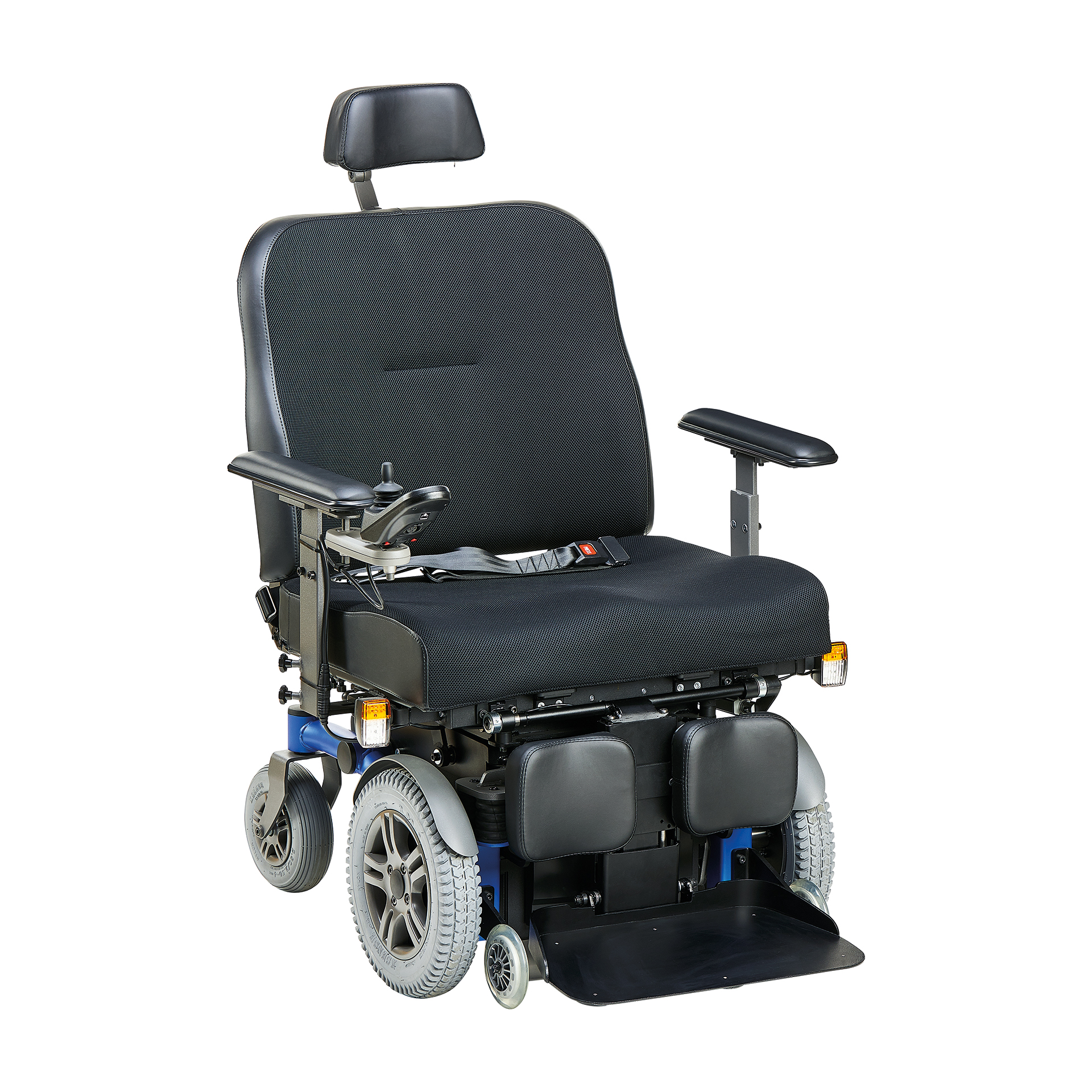

VELA Sango XXL




Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)

Documents
Brochure
User manual
Accessories catalogue
Service manual


The product series contains 1 product.

Product 1 of 1
VELA Sango XXL


HMI-no.
130988

Registration date
05-11-2021
Last updated
11-09-2025

Properties
Programmable
Yes
Elevating seat
Yes
Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
Yes
Mid-wheel-driven
No
Rear-wheel-driven
No
Can be used as seat in a car
Yes

Measures
User weight, max
250
kg
External width
70
cm
Measured where widest
External length
92.5
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
164
kg
Speed, max
6
km/t
Driving distance range, fully charged
30
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
45
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
71
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
30
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
25
°
Measured from the horizontal position.
Ground clearance
6
cm
Slope, max
10
°
Climbs obstacles of max
6
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
