XPress beds

XPress beds
Winncares XPress bed is assembled and disassembled quickly completely without the use of tools. XPress has a built-in transport rack, so you dont need extra trolleys and bags and parts that get lost in flight.

Classification
18 12 10 30 - Adjustable beds, 4-sectioned mattress support platform, electrically operated

Documents
Brochure
User manual
QuickGuide


The product series contains 2 products.

» Summarize specifications

Product 1 of 2

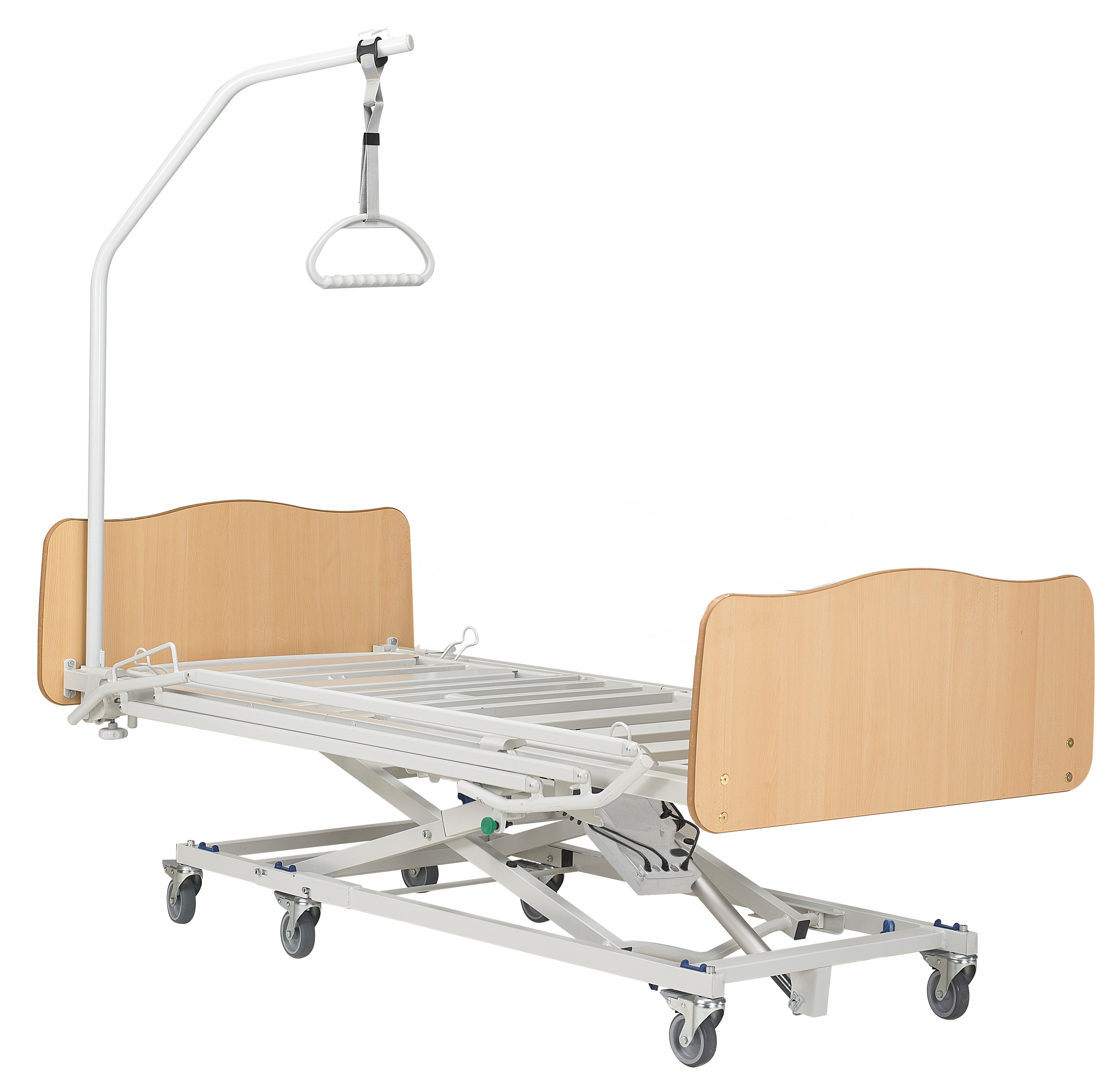

XPress bed 90x200 cm


HMI-no.
133730
Article-no.
XO3P4D1

Registration date
22-09-2022
Last updated
11-09-2025

Properties
Adjustment of the height of mattress support platform
Elektrisk
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
Yes
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
No
Back rest section, electrical adjustment
Yes
Leg section, electrical adjustment
Yes
Upper leg section, electrical adjustment
Yes
Separate adjustment of back rest
Yes
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
Yes
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
Yes
Removable self-lifting rail
Yes
Removable foot board
Yes
Removable head board
Yes
Heigh cot sides
No
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No

Measures
Outside measure length
206
cm
Measured without any bed extension
Outside measure width
90
cm
Measured including non-detachable accessories
Mattress size, length
200
cm
Mattress size, width
89
cm
Load, max
170
kg
Maximum external load on the product that is permitted in normal use
User weight, max
170
kg
Weight of heaviest main part
32.9
kg
Weight of heaviest part when disassembled without the use of tools.
Ingress protection class for water
6
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Mattress support platform, height above floor, min
35
cm
Measured without mattress
Mattress support platform, height above floor, max
81
cm
Measured without mattress
Under bed clearance
14
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.
Wheel diameter
10
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Foldable without the use of tools. Heaviest individual parts without wheels: 21.1 kg. Delivery without matress.


Product 2 of 2
XXL XPress bed


HMI-no.
133728
Article-no.
XA1P7D1/

Registration date
22-09-2022
Last updated
11-09-2025

Properties
Adjustment of the height of mattress support platform
Elektrisk
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
Yes
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
No
Back rest section, electrical adjustment
Yes
Leg section, electrical adjustment
Yes
Upper leg section, electrical adjustment
Yes
Separate adjustment of back rest
Yes
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
Yes
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
Yes
Removable self-lifting rail
Yes
Removable foot board
Yes
Removable head board
Yes
Heigh cot sides
No
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No

Measures
Outside measure length
206
cm
Measured without any bed extension
Outside measure width
120
cm
Measured including non-detachable accessories
Mattress size, length
200
cm
Mattress size, width
116
cm
Load, max
270
kg
Maximum external load on the product that is permitted in normal use
User weight, max
270
kg
Weight of heaviest main part
55
kg
Weight of heaviest part when disassembled without the use of tools.
Ingress protection class for water
6
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Mattress support platform, height above floor, min
34
cm
Measured without mattress
Mattress support platform, height above floor, max
84
cm
Measured without mattress
Under bed clearance
13
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.
Wheel diameter
10
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Foldable without the use of tools. Delivery without mattress.
Incl. with electrical electric legrest with knee break
Abelia end boards P617-00
Epoxy side rails A637-00 A638-00 ral 7030
Epoxy lifting pole ral 7030 A622-00
