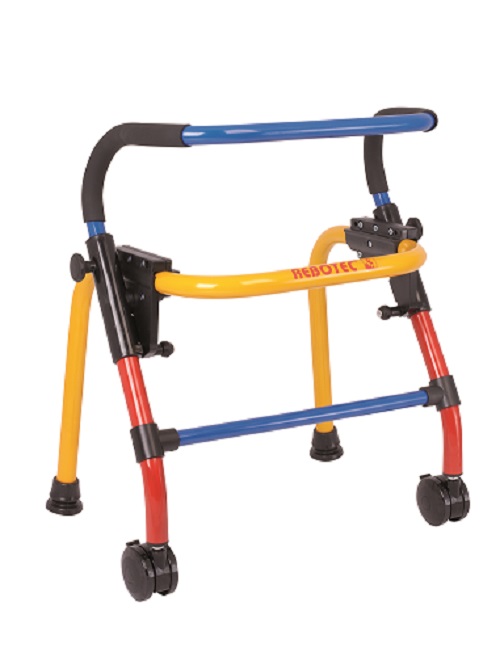

Walk-on - walking frame with 2 castors




Classification
12 06 03 08 - Walking frames with two castors

Documents
Brochure


The product series contains 4 products.

» Summarize specifications

Product 1 of 4
Walk-on with 2 castors - L


HMI-no.
135090
Article-no.
175.40

Registration date
18-01-2023
Last updated
21-08-2025

Properties
Resting seat
No
Provided with back support
No
Provided with basket
No
Foldable
Yes
Can frame be locked when folded
Yes
Indicates whether the frame can be locked when folded, e.g. during transport and handling of the rollator

Measures
Handgrip height, min
78
cm
Measured from the heighest point of the handgrip to the floor. Measured with the walking frame in the lowest position
Handgrip height, max
97
cm
Measured from the heighest point of the handgrip to the floor. Measured with the walking frame in the heighest position
External width, max
63
cm
Distance between handles
40
cm
Measured from the middle of the handles. On walking frames with wheels the handles must be parallel to the direction of travel
Weight
4
kg
User weight, max
120
kg

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 135090

Product 2 of 4
Walk-on with 2 castors - M


HMI-no.
135087
Article-no.
175.30

Registration date
18-01-2023
Last updated
21-08-2025

Properties
Resting seat
No
Provided with back support
No
Provided with basket
No
Foldable
Yes
Can frame be locked when folded
Yes
Indicates whether the frame can be locked when folded, e.g. during transport and handling of the rollator

Measures
Handgrip height, min
68
cm
Measured from the heighest point of the handgrip to the floor. Measured with the walking frame in the lowest position
Handgrip height, max
87
cm
Measured from the heighest point of the handgrip to the floor. Measured with the walking frame in the heighest position
External width, max
63
cm
Distance between handles
40
cm
Measured from the middle of the handles. On walking frames with wheels the handles must be parallel to the direction of travel
Weight
4
kg
User weight, max
120
kg

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 135087

Product 3 of 4
Walk-on with 2 castors - S


HMI-no.
135084
Article-no.
175.20

Registration date
18-01-2023
Last updated
21-08-2025

Properties
Resting seat
No
Provided with back support
No
Provided with basket
No
Foldable
Yes
Can frame be locked when folded
Yes
Indicates whether the frame can be locked when folded, e.g. during transport and handling of the rollator

Measures
Handgrip height, min
70
cm
Measured from the heighest point of the handgrip to the floor. Measured with the walking frame in the lowest position
Handgrip height, max
78
cm
Measured from the heighest point of the handgrip to the floor. Measured with the walking frame in the heighest position
External width, max
57
cm
Distance between handles
34
cm
Measured from the middle of the handles. On walking frames with wheels the handles must be parallel to the direction of travel
Weight
3.6
kg
User weight, max
120
kg

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 135084

Product 4 of 4
Walk-on with 2 castors - XS


HMI-no.
135076
Article-no.
175.10

Registration date
18-01-2023
Last updated
21-08-2025

Properties
Resting seat
No
Provided with back support
No
Provided with basket
No
Foldable
Yes
Can frame be locked when folded
Yes
Indicates whether the frame can be locked when folded, e.g. during transport and handling of the rollator

Measures
Handgrip height, min
62
cm
Measured from the heighest point of the handgrip to the floor. Measured with the walking frame in the lowest position
Handgrip height, max
70
cm
Measured from the heighest point of the handgrip to the floor. Measured with the walking frame in the heighest position
External width, max
57
cm
Distance between handles
34
cm
Measured from the middle of the handles. On walking frames with wheels the handles must be parallel to the direction of travel
Weight
3.6
kg
User weight, max
120
kg

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 135076
