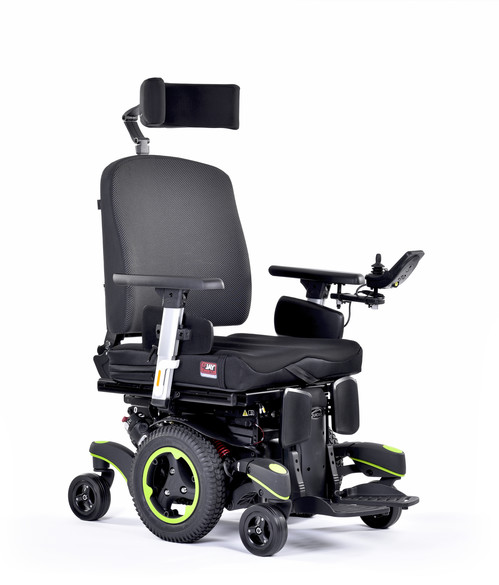

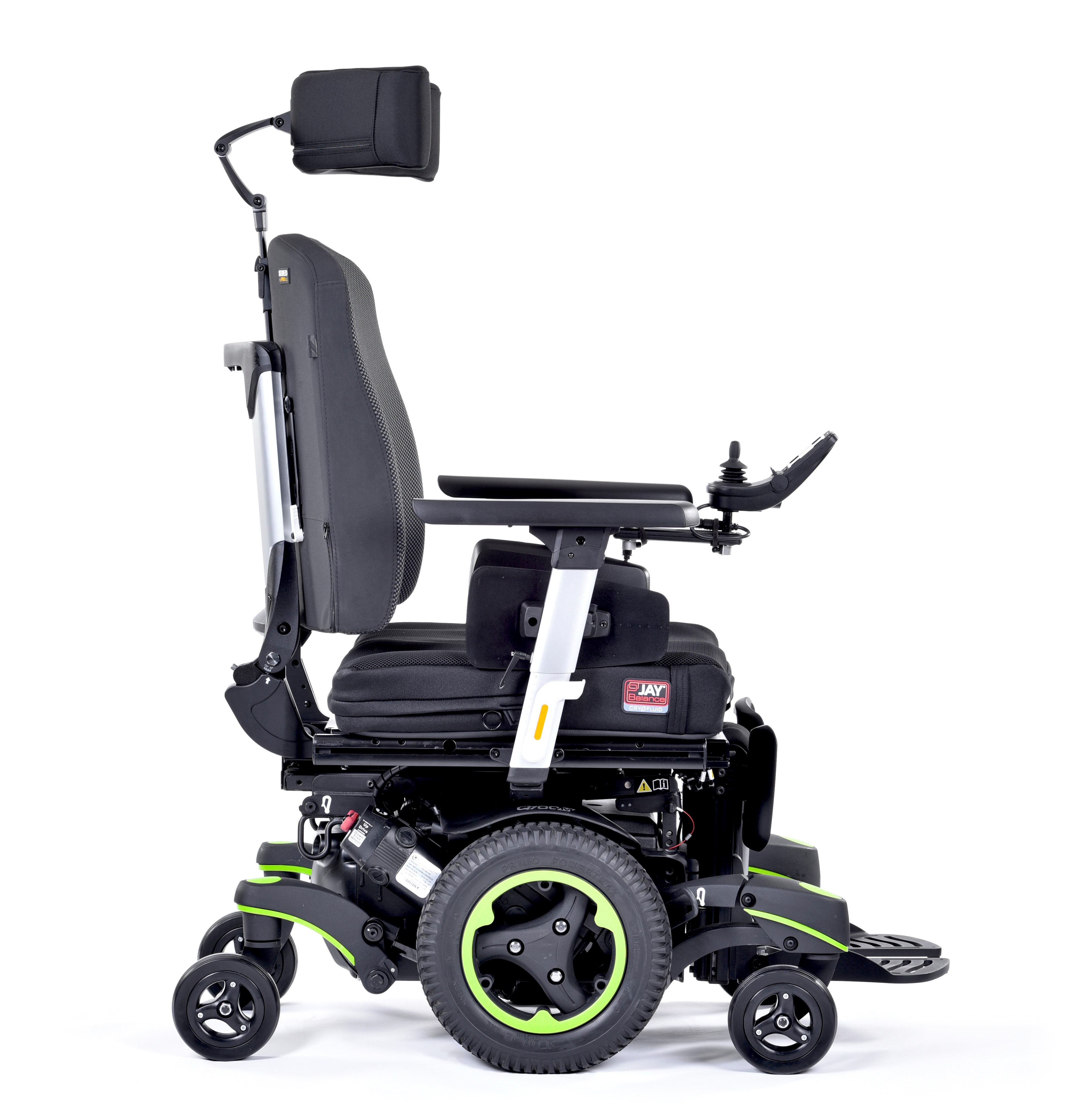

Quickie Q700 M HD

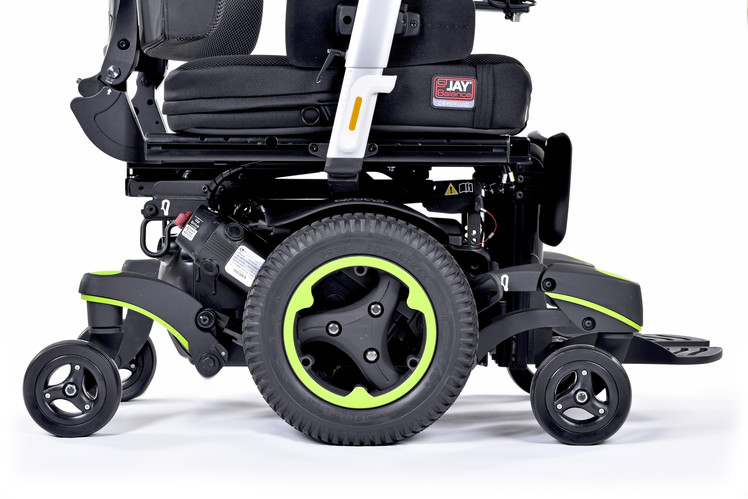

Now users up to 250 kg can enjoy the Q700 M - but in HD (Heavy Duty). Fitted with new, high-efficient 4 pole performance motors, the Q700 M HD provides the same outdoor performance as the Q700 M without increasing its base size - so its still just as manoeuvrable indoors.

Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)

Documents
Brochure
User manual


The product series contains 1 product.

Product 1 of 1
Quickie Q700 M HD


HMI-no.
138331

Registration date
12-09-2023
Last updated
11-09-2025

Properties
Programmable
Yes
Elevating seat
No
Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
Yes
Rear-wheel-driven
No
Can be used as seat in a car
Yes

Measures
User weight, max
250
kg
External width
62
cm
Measured where widest
External length
98
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
175
kg
Speed, max
8
km/t
Driving distance range, fully charged
25
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
44
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
49
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
40
°
Recline of back rest from an upright position.
Tilt-in-space forward
5
°
Measured from the horizontal position.
Tilt-in-space back
30
°
Measured from the horizontal position.
Ground clearance
9
cm
Slope, max
6
°
Climbs obstacles of max
7.5
cm

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12182:1999: Technical aids for disabled persons - General requirements and test methods.
Test lab: TÜV SÜD Product Service GmbH Masurenweg 1-3, 30163 Hanover, Germany. Test date: 29-03-2022 Test report for HMI-no. 138331

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
