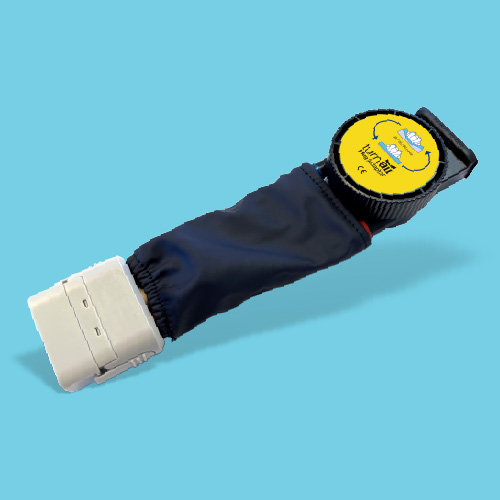

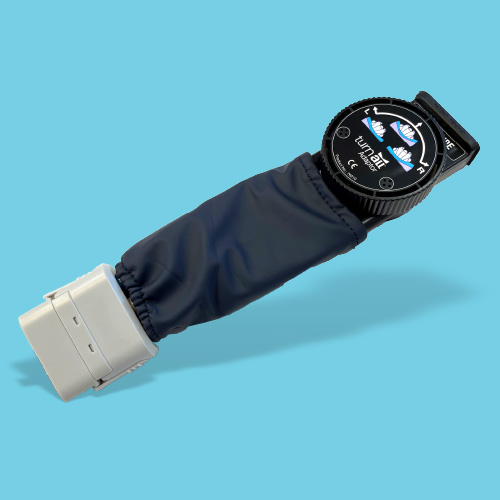

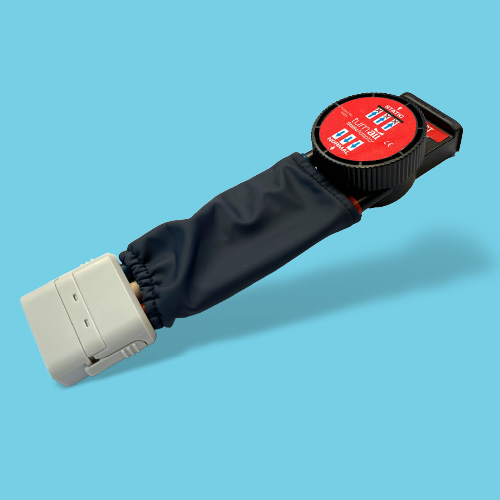

Turn All - Adapter 15/30 dg, Single side tilt L/R and Hug
Turn All Adapter, serie of turn all adapters for:
- individual mattress tilt on the left or right side and with the option of static hug
- 15 or 30 dg tilt
- Hug in interval of 30/60/90 min.
- individual mattress tilt on the left or right side and with the option of static hug
- 15 or 30 dg tilt
- Hug in interval of 30/60/90 min.
Classification
12 31 03 23 - Powered sliding and turning products
Documents
User manualThe product series contains 3 products.
Specifications summarized
Specifications for the 3 products in the product series. Click a HMI-no. to see all details for a single product.| Product 1 - 3 | |||
|---|---|---|---|
| Specification/HMI-no. | 144150 | 144152 | 144151 |
| Positioning by means of | mekanisk bev. | mekanisk bev. | mekanisk bev. |
| Intended for use in hospitals | Yes | Yes | Yes |
| Intended for use in nursing institutions | Yes | Yes | Yes |
| Intended for use in a domestic area | Yes | Yes | Yes |
| Can also be used in adjusted positions of the support surface | Yes | Yes | Yes |
| Placed under the mattress | No | No | No |
| Placed on top of the mattress | No | Yes | Yes |
| Secured in or on the bed | No | No | No |
Automated tilt function  Possibility for setting automated cycle for e.g. time interval and tilt. | Yes | Yes | Yes |
| Length (cm) | 27 | 26 | 26 |
| Width (cm) | 6.5 | 6.5 | 6.5 |
| User weight, max (kg) | 400 | 400 | 400 |
| Load, max (kg) User weight, mattress and other accessories. | 400 | 400 | 400 |
| Intended for mattress length, max. (cm) | 220 | 220 | 220 |
| Intended for mattress width, max. (cm) | 110 | 110 | 110 |
| Ingress protection class for water (IP) 0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529) | 1 | 1 | 1 |
